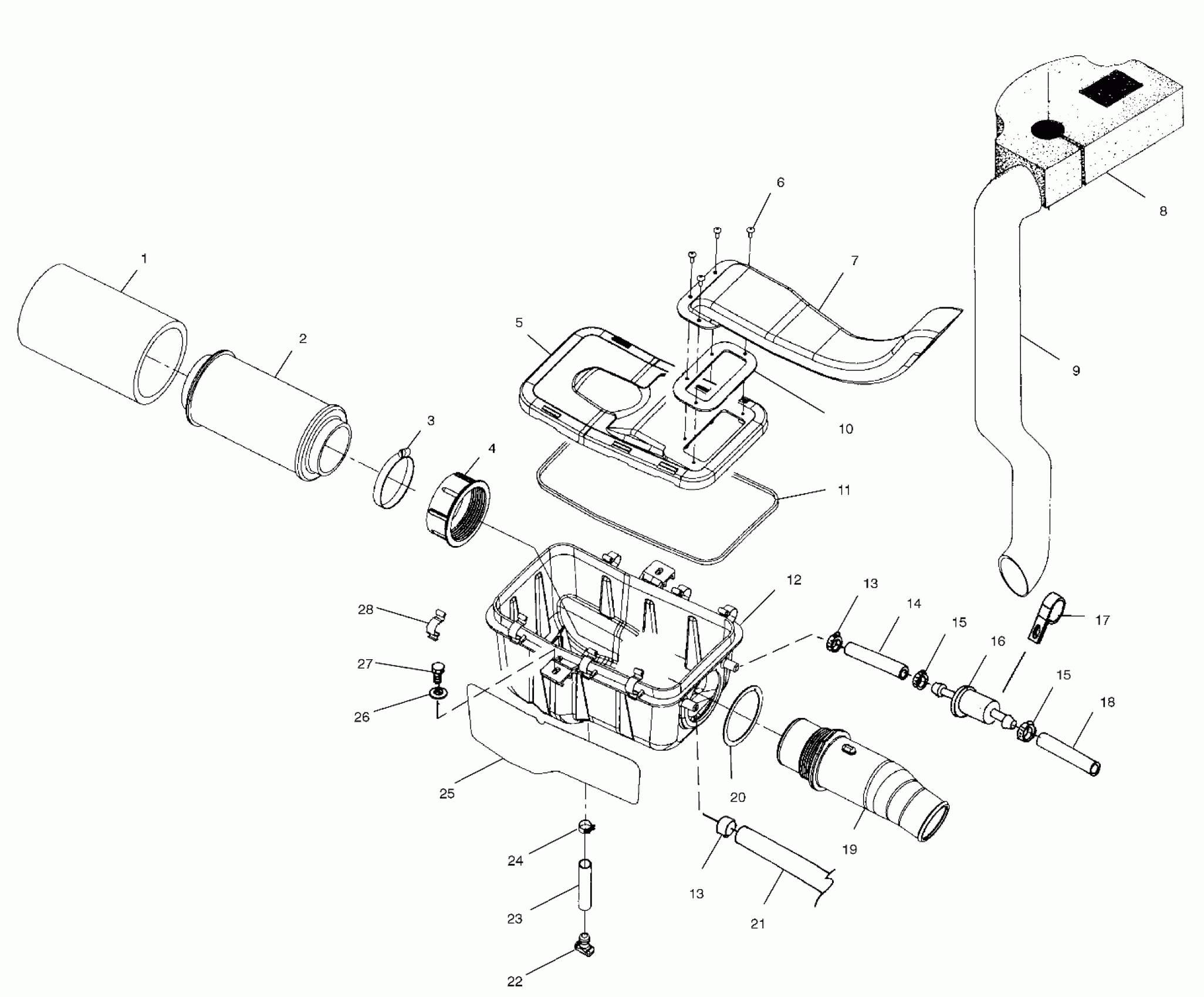

Polaris SPORTSMAN 400 - A02CH42AB AIR BOX - A02CH42AA (4968536853A12) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Collar, Carburetor Inlet

5432601

$12.79

5

Cover, Air Box

5432868

$51.99

6

Screw

7517541

$4.79

7

Duct, Air Inlet

5433293

$69.99

8

Seal, Foam

5811626

$31.99

9

Duct, Clutch Air Inlet

5432086

Unavailable

10

Gasket, Intake

5411422

$6.63

11

Seal, Air Box Cover

5811482

Unavailable

12

Box, Air

5433387

$127.99

13

Clamp, Hose

7080699

$1.59

13

Clamp, Hose

7080699

$1.59

14

Line, Breather

8450073-600

Unavailable

15

Clamp, Hose

7080544

Unavailable

15

Clamp, Hose

7080544

Unavailable

16

Filter, Breather

2530029

$6.39

17

P-Clamp

7080913

$5.59

18

Hose, Breather

5411858

Unavailable

19

Duct, Carburetor Inlet

5432858

$91.99

20

Gasket, Carburetor Inlet Duct

5830128

Unavailable

21

Line, Breather

5411668

Unavailable

22

Plug, Trap

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Foil, Air Box

5811650

Unavailable

26

Washer, Flat

7558301

$1.49

27

Screw

7515179

$2.39

28

CLIP-AIR BOX

5242044

$9.59
