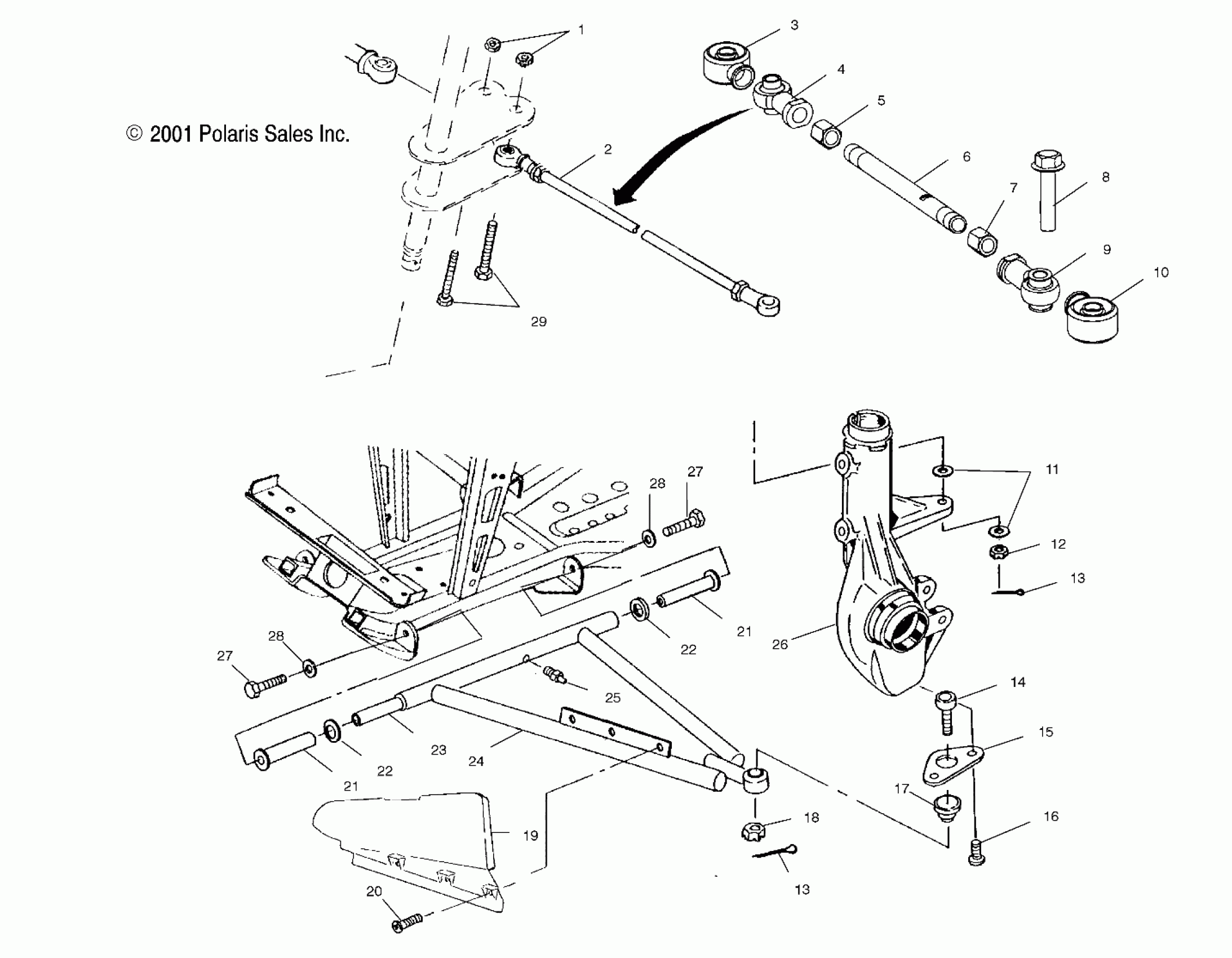

Polaris SPORTSMAN 400 - A02CH42AB A-ARM/STRUT MOUNTING - A02CH42AA (4968536853B14) Diagram

#

Description
Price

1

Nut, FLEXLOC

7542403

Unavailable

2

Asm., Tie Rod

1820805

$133.56

3

Boot, Seal, Rod End

5411291

$11.32

4

Rod End

7061034

$60.70

5

Nut

7542711

$2.38

6

Tie Rod

5020926

$44.51

7

Nut, LH

7547028

$2.38

8

Bolt

7517909

$5.56

9

Rod End, LH

7061054

$56.65

10

Boot, Seal, Rod End

5411920

$11.32

11

Washer, Flat

7556099

$1.59

12

Nut

7547177

$0.79

13

Pin, Cotter

7661203

$1.19

13

Pin, Cotter

7661203

$1.19

14

Joint, Ball

7080927

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Shield, CV Joint, LH

5431837

Unavailable

19

Shield, CV Joint, RH

5431838

Unavailable

20

Screw

7512084

$1.19

21

Bushing, A-Arm, Long

5433066

$5.56

21

Bushing, A-Arm, Long

5433066

$5.56

22

Bushing

5020677

$10.32

22

Bushing

5020677

$10.32

23

Shaft, A-Arm

5020681

$33.24

24

Kit, A-Frame, LH

2201607

$170.99

24

Kit, A-Frame, RH

2201608

$170.99

25

Fitting, Lubrication

7080433

$1.19

26

Asm., Heavy Hubstrut (See Front Strut Pg. B8, Ref. 16) (See Front Strut Pg. B8, Ref. 16)

----

Unavailable

27

Screw

7512492

$1.19

27

Screw

7512492

$1.19

28

Washer, Spring Lock

7552603

$0.79

28

Washer, Spring Lock

7552603

$0.79

29

Screw

7515415

$1.19
