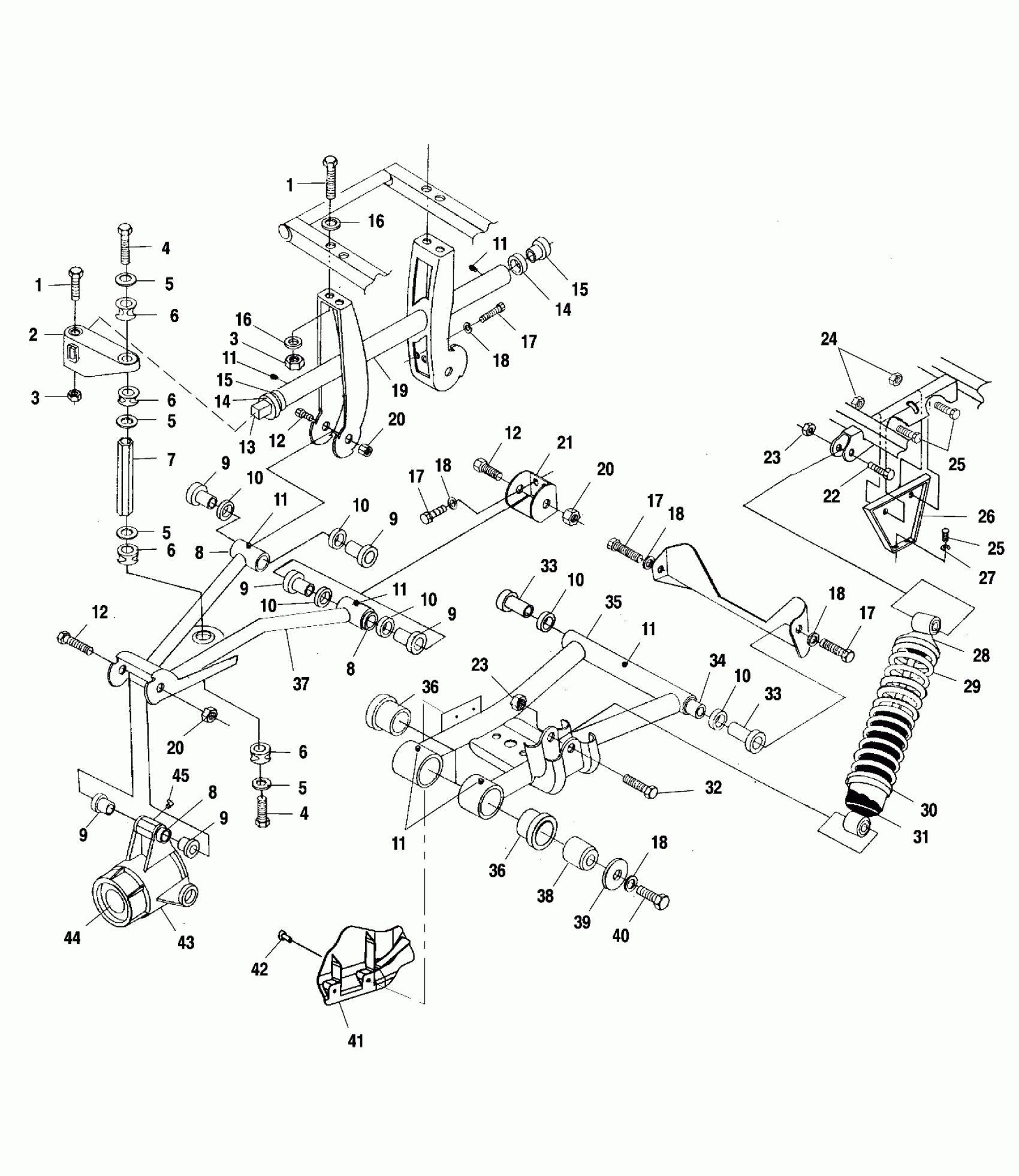

Polaris SPORTSMAN 400 - A01CH42AB REAR SUSPENSION - A01CH42AA (4964436443C005) Diagram

#

Description
Price

1

BOLT(10)

7512329

$3.97

1

BOLT(10)

7512329

$3.97

2

ARM,STAB.BAR,BLK

1580107-067

$62.92

3

NUT-5/16-18 NYLOK-Y

7542324

$0.79

3

NUT-5/16-18 NYLOK-Y

7542324

$0.79

4

SCREW(10)

7517231

$7.14

4

SCREW(10)

7517231

$7.14

5

WASHER(10)

7555761

$2.38

5

WASHER(10)

7555761

$2.38

5

WASHER(10)

7555761

$2.38

5

WASHER(10)

7555761

$2.38

6

BUSHING,STAB.LINK

5432598

$6.35

6

BUSHING,STAB.LINK

5432598

$6.35

6

BUSHING,STAB.LINK

5432598

$6.35

6

BUSHING,STAB.LINK

5432598

$6.35

7

ROD-LINKAGE, STABILIZER

5020827

$52.60

8

SHAFT,A-ARM,SHORT

5020826

$12.13

8

SHAFT,A-ARM,SHORT

5020826

$12.13

8

SHAFT,A-ARM,SHORT

5020826

$12.13

9

BUSHING-A-ARM-SHORT

5433063

$2.38

9

BUSHING-A-ARM-SHORT

5433063

$2.38

9

BUSHING-A-ARM-SHORT

5433063

$2.38

9

BUSHING-A-ARM-SHORT

5433063

$2.38

9

BUSHING-A-ARM-SHORT

5433063

$2.38

9

BUSHING-A-ARM-SHORT

5433063

$2.38

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

10

BUSHING,A-ARM SPACER(10)

5020677

$10.32

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

11

ZERK,FITTING,THREADED(10)

7080433

$1.19

12

BOLT(10)

7515472

$2.38

12

BOLT(10)

7515472

$2.38

12

BOLT(10)

7515472

$2.38

13

BAR,STAB.TUBE,BLK.

5333393-067

$116.17

14

WASHER(10)

7555939

$3.97

14

WASHER(10)

7555939

$3.97

15

BUSHING-STABILIZER,TUBE

5433413

$8.73

15

BUSHING-STABILIZER,TUBE

5433413

$8.73

16

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

16

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

17

SCREW(10)

7512492

$1.19

17

SCREW(10)

7512492

$1.19

17

SCREW(10)

7512492

$1.19

17

SCREW(10)

7512492

$1.19

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

19

SUPPORT,STABILIZER,BLK.

1541322-067

Unavailable

20

NUT LOCK(10)

7542403

Unavailable

20

NUT LOCK(10)

7542403

Unavailable

20

NUT LOCK(10)

7542403

Unavailable

21

BRKT,A-ARM,PIVOT,BLK

5242077-067

Unavailable

22

BOLT Substituted by 7515491

7515433

$1.59

23

NUT-LOCK(10)

7542439

$1.19

23

NUT-LOCK(10)

7542439

$1.19

24

NUT LOCK(10)

7542321

$1.19

25

BOLT(10)

7515321

Unavailable

25

BOLT(10)

7515321

Unavailable

26

SUPPORT,UPR.TRANS,BLK

5224667-067

$74.99

27

LOCK WASHER(10)

7552901

$1.19

28

RETAINER,SPRING

5630885

$10.32

29

SPRING,COMP.REAR, BLK

7041453-067

$94.99

30

CAM,ADJUST,SPRING (If built before 10/23/00)

5630551

$36.41

30

CAM,SPRING ADJUST,1-3/8 (If built after 10/23/00)

5631014

$36.41

30

SLEEVE,SHOCK PROTECTOR

5433551

$44.51

31

SHOCK-RR,IRS (If built before 3/01/01)

7041959

$137.76

31

SHOCK-RR,2",INDEP SUSP (If built after 3/01/01)

7041770

$168.87

32

BOLT(10)

7515415

$1.19

33

BUSHING,A ARM,LONG

5433066

$5.56

33

BUSHING,A ARM,LONG

5433066

$5.56

34

Shaft, A-Arm

5020681

$33.24

35

ARM,CONTROL,LH,LOW,BLK.

1012717-067

Unavailable

35

ARM,CONTROL,RH,LOW,BLK.

1012718-067

Unavailable

36

BUSHING,CONTROL,LOWER

5433065

$4.76

36

BUSHING,CONTROL,LOWER

5433065

$4.76

37

CONTROL,UPPER,ARM,BLK,LH

1040730-067

Unavailable

37

CONTROL,UPPER,ARM,BLK.RH

1040731-067

Unavailable

38

BUSHING,BRNG.CARRIER

5131883

$35.71

39

WASHER(10)

7555936

$4.99

40

SCREW(10)

7517297

$5.99

41

SHIELD-CV,REAR,BLACK,RH

5433099-070

Unavailable

41

SHIELD-CV,REAR,BLACK,LH

5433098-070

Unavailable

42

SCREW(10)

7512084

$1.19

43

CARRIER,WHL.BEARING,(MACH)

5131738

$137.74

44

BEARING,CARRIER,WHEEL

3585502

$39.68

45

FITTING,LUBE,45 DEG.(10)

7080586

Unavailable
