Description

Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

CAB,REAR,GEN4,MD.YELLOW (AC)

5432117-053

Unavailable

5

CAB,REAR,GEN 4,P.RED (AB)

5432117-136

Unavailable

5

CAB,REAR,GEN 4,OLV.GRN. (AA)

5432117-191

Unavailable

6

NUT(10)

7541925

$0.79

6

NUT(10)

7541925

$0.79

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.94

9

SCREW(10)

7512242

$2.38

10

WASHER, FLAT(10)

7555859

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

TOOLBOX

5431786

$53.17

13

BLIND RIVET(50)

7621403

$1.19

14

BRACKET,LEVER RETAINER

5211033

$34.99

15

LATCH,SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

COVER,SEAT,BLK. (AA)(AB)(AC)

2681747-070

$149.75

17

SEAT,BLK (AA)(AB)(AC)

2682441-070

$445.22

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.84

18

BUMPER-RUBBER

5412067

$3.97

19

SCREW Substituted by 7555748

7517375

$1.19

20

COVER, TOOLBOX

5431787

Unavailable

21

CAP,DRAIN

5410896

$5.65

22

RIVET,INTERLOCK,B(50)

7661638

$1.19

23

GUARD,CLUTCH,BLK

5242953-067

Unavailable

24

FRONT HOUSING (See Front Housing Pg. C11 for Details)

----

Unavailable

25

WASHER(10)

7552603

$0.79

25

WASHER(10)

7552603

$0.79

26

SCREW(10)

7512492

$1.19

26

SCREW(10)

7512492

$1.19

27

NUT-LOCK(10)

7542122

$1.19

27

NUT-LOCK(10)

7542122

$1.19

28

SPACER,FOOTWELL

5432280

$8.73

29

SCREW

7517377

$4.76

30

FRAME MAIN,BLK

1013325-067

Unavailable

31

DECAL-HITCH (1225)

7078261

Unavailable

32

SCREW Substituted by 7512279

7517376

$0.79

33

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

33

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

34

FOIL FOAM

5811111

Unavailable

35

FOIL,FR,REAR CAB

5811106

Unavailable

36

DECAL-4 STRK,CARB/FILTER INFO

7079902

Unavailable

37

FOIL-FOAM,(6X1)

5811087

Unavailable

38

BOLT(10)

7512232

$1.19

39

NUT, SPEED(10)

7670057

$1.19

40

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

40

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable

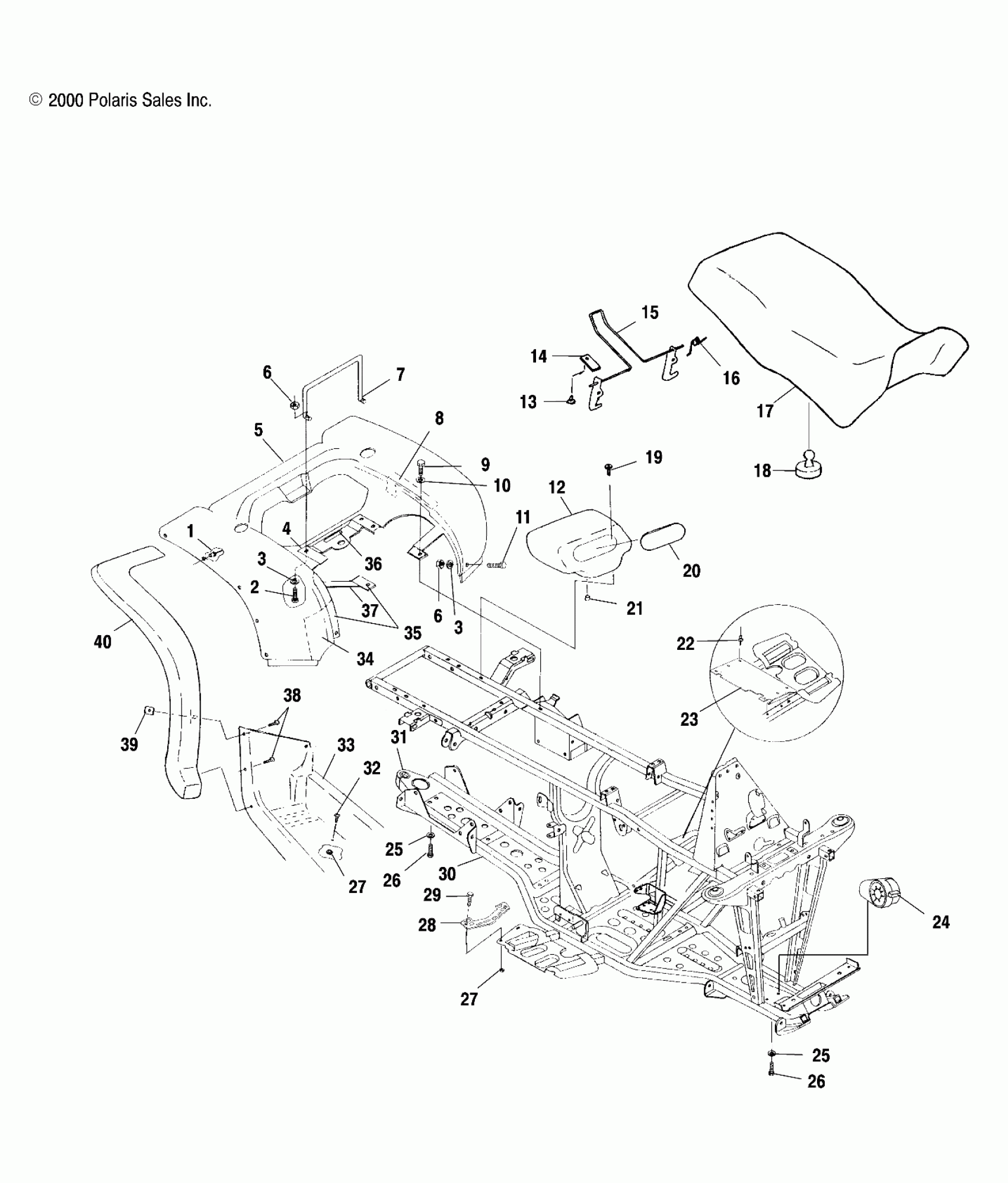

Polaris SPORTSMAN 400 - A01CH42AB REAR CAB and SEAT - A01CH42AA (4964436443A003) Diagram

RIVET(50)

SCREW(10)

WASHER(10)

WASHER(10)

FOIL,REAR CAB,REAR

CAB,REAR,GEN4,MD.YELLOW (AC)

CAB,REAR,GEN 4,P.RED (AB)

CAB,REAR,GEN 4,OLV.GRN. (AA)

NUT(10)

NUT(10)

RETAINER,SEAT LATCH

FOIL,TAPE,3 X 12

SCREW(10)

WASHER, FLAT(10)

SCREW(10) Substituted by 7511989

TOOLBOX

BLIND RIVET(50)

BRACKET,LEVER RETAINER

LATCH,SEAT

SPRING, LATCH

COVER,SEAT,BLK. (AA)(AB)(AC)

SEAT,BLK (AA)(AB)(AC)

FOIL,SEATBASE,LG.

FOIL,SEATBASE,SM.

BUMPER-RUBBER

SCREW Substituted by 7555748

COVER, TOOLBOX

CAP,DRAIN

RIVET,INTERLOCK,B(50)

GUARD,CLUTCH,BLK

FRONT HOUSING (See Front Housing Pg. C11 for Details)

WASHER(10)

WASHER(10)

SCREW(10)

SCREW(10)

NUT-LOCK(10)

NUT-LOCK(10)

SPACER,FOOTWELL

SCREW

FRAME MAIN,BLK

DECAL-HITCH (1225)

SCREW Substituted by 7512279

FOOTWELL,LH,BLK,NYLON

FOOTWELL-NYLON,RH,BLK

FOIL FOAM

FOIL,FR,REAR CAB

DECAL-4 STRK,CARB/FILTER INFO

FOIL-FOAM,(6X1)

BOLT(10)

NUT, SPEED(10)

GUARD-MUD,REAR,LH,BLK

GUARD-MUD,REAR,RH,BLK
