- SPORTSMAN 400 - A01CH42AB
REAR BRAKE/FOOT PEDAL - A01CH42AA (4964436443C007)

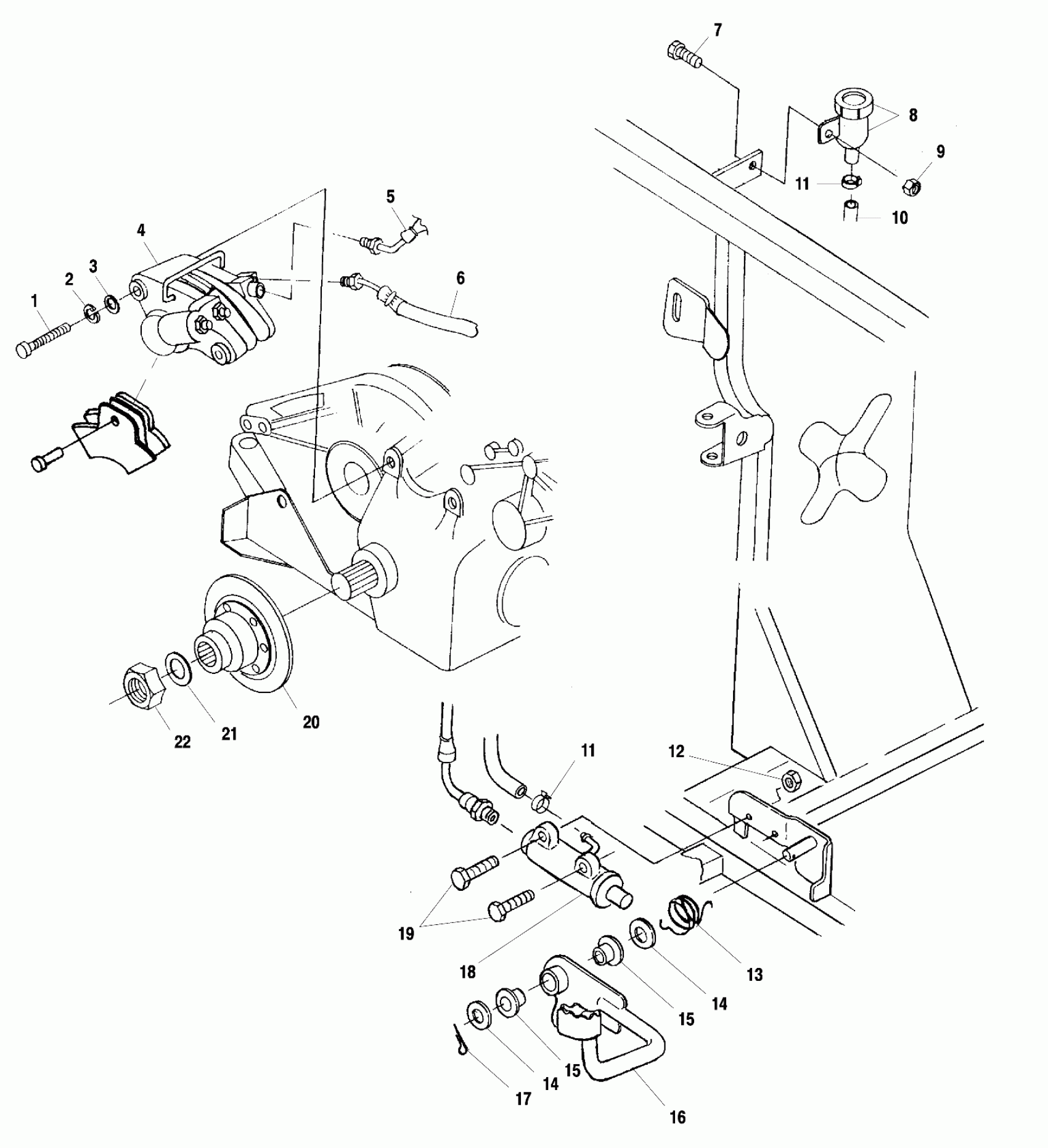

Polaris SPORTSMAN 400 - A01CH42AB REAR BRAKE/FOOT PEDAL - A01CH42AA (4964436443C007) Diagram
#
Description
Price
1
BOLT(10)
7515497
$3.99
2
WASHER(10)
7552603
$1.49
3
WASHER(10)
7555806
$1.49
4
KIT,SEAL,CALIPER,WW
2201180
$64.75
4
BLEEDER REPLACEMENT,KIT
2201428
$27.99
4
PISTON-STEPPED BORE
2201181
$83.33
4
BRAKE PADS,AFT,WW REAR (Incl. Spacer and Pin)
2201399
$31.75
4
ASM-CALIPER,BRAKE,RR,DH1P,AFT
1910553
$259.99
5
LINE-BRAKE,FT TO TRAN,SS
1910479
$89.03
6
LINE, BRAKE, STAINLESS STEEL (See Controls-Master Cylinder Brake Line Pg. B8,Ref. 8)
-------
Unavailable
7
BOLT(10)
7512240
$3.99
8
RESERVOIR ASM,R.BRAKE
1930854
$35.99
9
NUT(10)
7542153
$1.59
10
HOSE,RESERVOIR,1/4ID,22IN.
1910315
Unavailable
11
HOSE CLAMP, RED
7080003
$1.49
11
HOSE CLAMP, RED
7080003
$1.49
12
NUT-LOCK(10)
7542122
$1.49
13
SPRING-TORSION,BRAKE
7041750
$8.79
14
WASHER(10)
7555919
$4.99
14
WASHER(10)
7555919
$4.99
15
BUSHING-PEDAL PIVOT
5431107
$8.79
15
BUSHING-PEDAL PIVOT
5431107
$8.79
16
ROD,BRAKE,BLK.
1910280-067
Unavailable
17
COTTER PIN(10)
7661401
$1.49
18
CYLINDER,MASTER,BRAKE,REAR
1910301
$166.01
19
BOLT(10)
7512247
$2.39
20
DISC,ASM,BRAKE,DOM,1050
1910440
Unavailable
21
WASHER, SLOTTED(10)
7571620
$7.19
22
NUT,NYLOC
7547046
$5.59
