Description

Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

BREATHER-LINE-112 CM,SLIT

5411668

Unavailable

6

DIPSTICK

5432289

Unavailable

7

O RING

5410889

Unavailable

8

BOLT

7517102

Unavailable

8

BOLT

7517102

Unavailable

9

WASHER,COPPER,14MM.

7555896

$1.49

9

WASHER,COPPER,14MM.

7555896

$1.49

9

WASHER,COPPER,14MM.

7555896

$1.49

10

TUBE,BANJO,RETURN

7052109

Unavailable

11

TUBE,BANJO INTAKE

7052133

Unavailable

12

SCREEN-OIL FILTER,BANJO

2530020

Unavailable

13

NUT-LOCK(10)

7542122

$1.49

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

TANK,LH,OIL

5131785

$131.99

16

Grommet

5411042

Unavailable

17

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

18

BUSHING,MTG.

5333204

$26.39

19

BOLT(10)

7512130

$3.99

20

PLUG,MAG.12 M.

7051524

$27.99

21

WASHER

5850135

$3.19

22

SCREW(10)

7515158

$4.79

23

TANK,OIL,RH

5131255

Unavailable

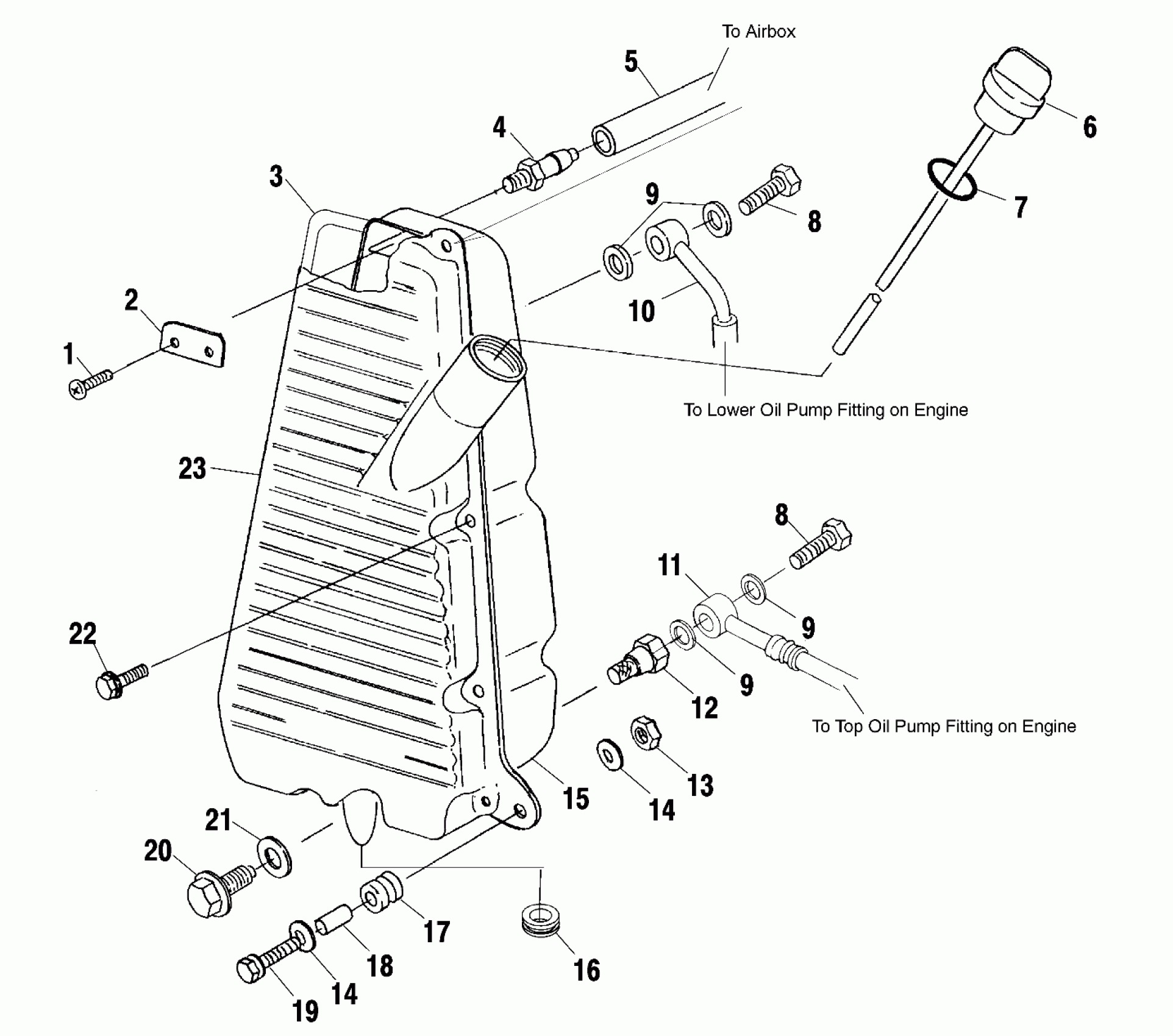

Polaris SPORTSMAN 400 - A01CH42AB OIL TANK - A01CH42AA (4964436443B010) Diagram

SCREW-SEMS(10)

PLATE,VENT,OIL TANK

GASKET,OIL RESERVOIR

Fitting

BREATHER-LINE-112 CM,SLIT

DIPSTICK

O RING

BOLT

BOLT

WASHER,COPPER,14MM.

WASHER,COPPER,14MM.

WASHER,COPPER,14MM.

TUBE,BANJO,RETURN

TUBE,BANJO INTAKE

SCREEN-OIL FILTER,BANJO

NUT-LOCK(10)

WASHER(10)

WASHER(10)

TANK,LH,OIL

Grommet

GROMMET,MTG,RESERVOIR (10)

BUSHING,MTG.

BOLT(10)

PLUG,MAG.12 M.

WASHER

SCREW(10)

TANK,OIL,RH
