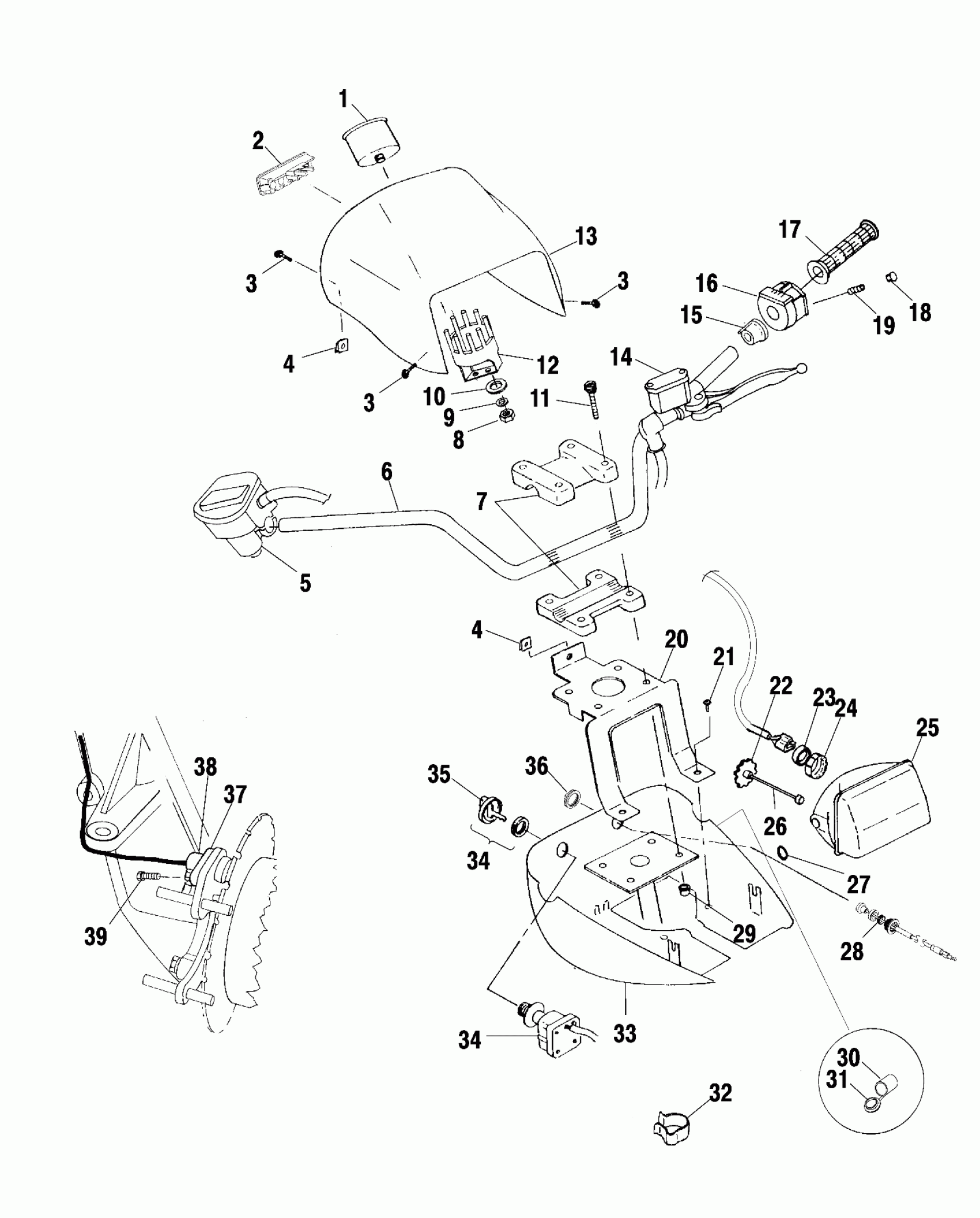

Polaris SPORTSMAN 400 - A01CH42AB HANDLEBAR and HEADLIGHT POD - A01CH42AA (4964436443B013) Diagram

#

Description
Price

1

SPEEDOMETER,3.38",6-PULSE

3280363

Unavailable

2

PANEL-INDICATOR,SVC,STD PVT

4010459

Unavailable

2

BULB-INDICATOR,HOBBS

4010416

$9.70

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

4

CLIP-SCREW,#8/10,.03-.10,PANEL

7670127

$10.46

4

CLIP-SCREW,#8/10,.03-.10,PANEL

7670127

$10.46

5

ASM., THROTTLE CONTROL (See Controls - Throttle Asm./Cable Pg. B7, Ref. 5)

----

Unavailable

6

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$119.99

7

KIT,H'BAR BLOCK (Incl. Blocks and 7,11,29)

2200774

Unavailable

7

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

8

NUT, BRASS(10)

7541933

Unavailable

9

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

10

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

11

SCREW(10)

7515189

$1.19

12

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

13

POD-HEADLIGHT,UPPER,MED YELLOW (AC)

5433763-053

Unavailable

13

POD-HEADLIGHT,UPPER,OLIVE GRN (AA)

5433763-191

Unavailable

13

POD-HEADLIGHT,UPPER,PORCHE RED (AB)

5433763-136

Unavailable

14

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B8 for details)

----

Unavailable

15

SPACER-SWITCH,LH,99

5433903

Unavailable

16

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$206.41

17

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$28.32

18

PLUG,HOLE(10)

5432952

$6.46

19

SCREW,SET

7517625

$4.76

20

BRKT-POD MOUNTING,BLK

5244969-067

$44.99

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

22

KNOB,ADJUSTING

4032079

$28.32

23

BOOT, HEADLIGHT

5411120

$28.32

24

COLLAR,LOCK

4032077

$27.78

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

O RING

5410163

$1.60

28

CABLE-CHOKE,FRICTION,40"

7081008

$80.94

29

NUT-LOCK(10)

7542122

$1.19

30

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

31

CAP-RUBBER,12-VOLT RECEPTACLE

5411744

Unavailable

32

CLIP,CABLE RETAIN,(10)

7080631

Unavailable

33

POD-HEADLIGHT,LOWER,SNAP,BLK

5433762-070

Unavailable

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

$14.56

34

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

$14.29

34

SWITCH,IGNITION (Incl. Key)

4110264

$109.27

34

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

$14.56

34

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

$14.29

34

SWITCH,IGNITION (Incl. Key)

4110264

$109.27

35

KEY SWITCH KEY COVER

5433534

$13.75

36

NUT,CHOKE,M24X1.5 THD,M29 HEX

7080922

$3.17

37

SENSOR,HALLEFFECT

4010298

$117.37

38

CAP-HALL SENSOR

5132382

$24.27

39

Screw

7517658

$5.56
