Description

Price

-

GEARCASE,ASM,SHAFT,PRD,500 (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12)

1341360

Unavailable

1

Nut

3233055

Unavailable

2

Washer

3233054

$6.46

2

Washer

3233054

$6.46

3

Bellcrank

3233153

$27.99

3

Bellcrank

3233153

$27.99

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

4

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

5

Washer

3233040

$9.59

5

Washer

3233040

$9.59

6

O-Ring

3233548

$27.99

6

O-Ring

3233548

$27.99

7

SHAFT-SHIFT,12-POINT,SPRING

3233774

Unavailable

8

SHIFT FORK,LOW,SUB-ASM

3233775

Unavailable

9

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

10

SHAFT,INPUT 15T HCR,HLR(DSL)

3233571

Unavailable

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

11

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

12

Washer

3233176

$9.59

12

Washer

3233176

$9.59

13

GEAR,30T,12PT

3233744

Unavailable

14

DOG,ENGAGE,HIGH/REV 12PT

3233743

Unavailable

15

RING,RET-RING,EXTERNAL

3233720

$9.59

15

RING,RET-RING,EXTERNAL

3233720

$9.59

15

RING,RET-RING,EXTERNAL

3233720

$9.59

16

CHAIN,SILENT,34P

3233036

Unavailable

17

SPROCKET,24T

3233719

$109.27

18

SHAFT,REVERSE,29T

3233742

$174.60

19

SHAFT-SHIFT

3233661

Unavailable

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

20

BEARING,NDL,SPLIT CAGE

3233718

$35.99

21

GEAR,36T,12PT

3233745

Unavailable

22

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

22

SCREW-TAPPING,W/LOCK WASHER

3233747

Unavailable

23

BRACKET,INTERLOCK

3233309

$20.63

24

Spring

3233189

Unavailable

25

PIN,INTERLOCK

3233308

Unavailable

25

PIN,INTERLOCK

3233308

Unavailable

26

RING,RETAINING

3233177

$6.39

26

RING,RETAINING

3233177

$6.39

27

DOG,ENGAGEMENT,LOW

3233732

$169.98

28

FORK,SHIFT,H/R

3233664

Unavailable

29

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

30

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

31

RING,RETAINING

3233364

$6.39

32

COVER,CTR.DRIVE BRG.

3233263

Unavailable

33

LOCK WASHER(10)

7552901

$1.49

34

Screw

3233262

$1.83

35

GEAR,O/P,100T,HCR

3233360

Unavailable

36

DEFLECTOR-OIL

3233669

$7.94

37

Screw

3233282

Unavailable

38

SHAFT-CENTER DRIVE

3233715

Unavailable

39

BEARING

3233020

$47.99

40

CHAIN,SILENT

3233430

Unavailable

41

SPRING,TORSION

3233431

$23.99

42

PIN,DOWEL

3233432

$7.19

43

SHOE,CHAIN TENSIONER

3233433

$27.99

44

CAM,CHAIN TENSIONER

3233434

$12.79

45

SPOCKET-60T,36T SP

3233670

Unavailable

46

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

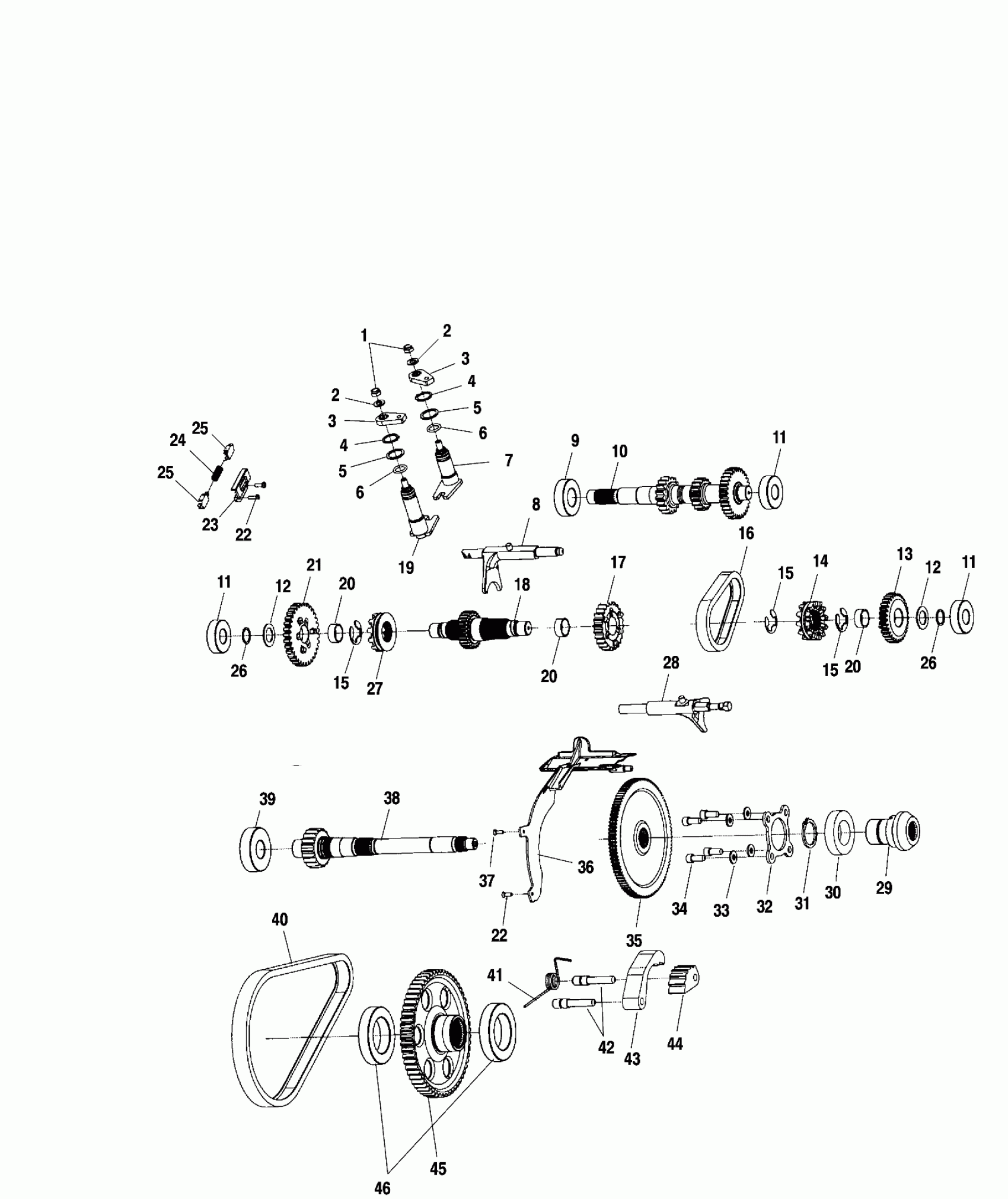

Polaris SPORTSMAN 400 - A01CH42AB GEARCASE (Internal Components) - A01CH42AA (4964436443C013) Diagram

GEARCASE,ASM,SHAFT,PRD,500 (Incl. 1-46 and all except Ref. 6 on Gearcase/Cases and Snorkel Pg. C12)

Nut

Washer

Washer

Bellcrank

Bellcrank

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.75

Washer

Washer

O-Ring

O-Ring

SHAFT-SHIFT,12-POINT,SPRING

SHIFT FORK,LOW,SUB-ASM

BEARING, BALL, 6205 C3 25X52X15

SHAFT,INPUT 15T HCR,HLR(DSL)

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

Washer

Washer

GEAR,30T,12PT

DOG,ENGAGE,HIGH/REV 12PT

RING,RET-RING,EXTERNAL

RING,RET-RING,EXTERNAL

RING,RET-RING,EXTERNAL

CHAIN,SILENT,34P

SPROCKET,24T

SHAFT,REVERSE,29T

SHAFT-SHIFT

BEARING,NDL,SPLIT CAGE

BEARING,NDL,SPLIT CAGE

BEARING,NDL,SPLIT CAGE

GEAR,36T,12PT

SCREW-TAPPING,W/LOCK WASHER

SCREW-TAPPING,W/LOCK WASHER

BRACKET,INTERLOCK

Spring

PIN,INTERLOCK

PIN,INTERLOCK

RING,RETAINING

RING,RETAINING

DOG,ENGAGEMENT,LOW

FORK,SHIFT,H/R

GEAR,16T,SPIRAL BEVEL,SNORKEL

BEARING-BALL 6007 C3 35 X 62 X 14

RING,RETAINING

COVER,CTR.DRIVE BRG.

LOCK WASHER(10)

Screw

GEAR,O/P,100T,HCR

DEFLECTOR-OIL

Screw

SHAFT-CENTER DRIVE

BEARING

CHAIN,SILENT

SPRING,TORSION

PIN,DOWEL

SHOE,CHAIN TENSIONER

CAM,CHAIN TENSIONER

SPOCKET-60T,36T SP

BEARING-BALL 6010 C3 50 X 80 X 10
