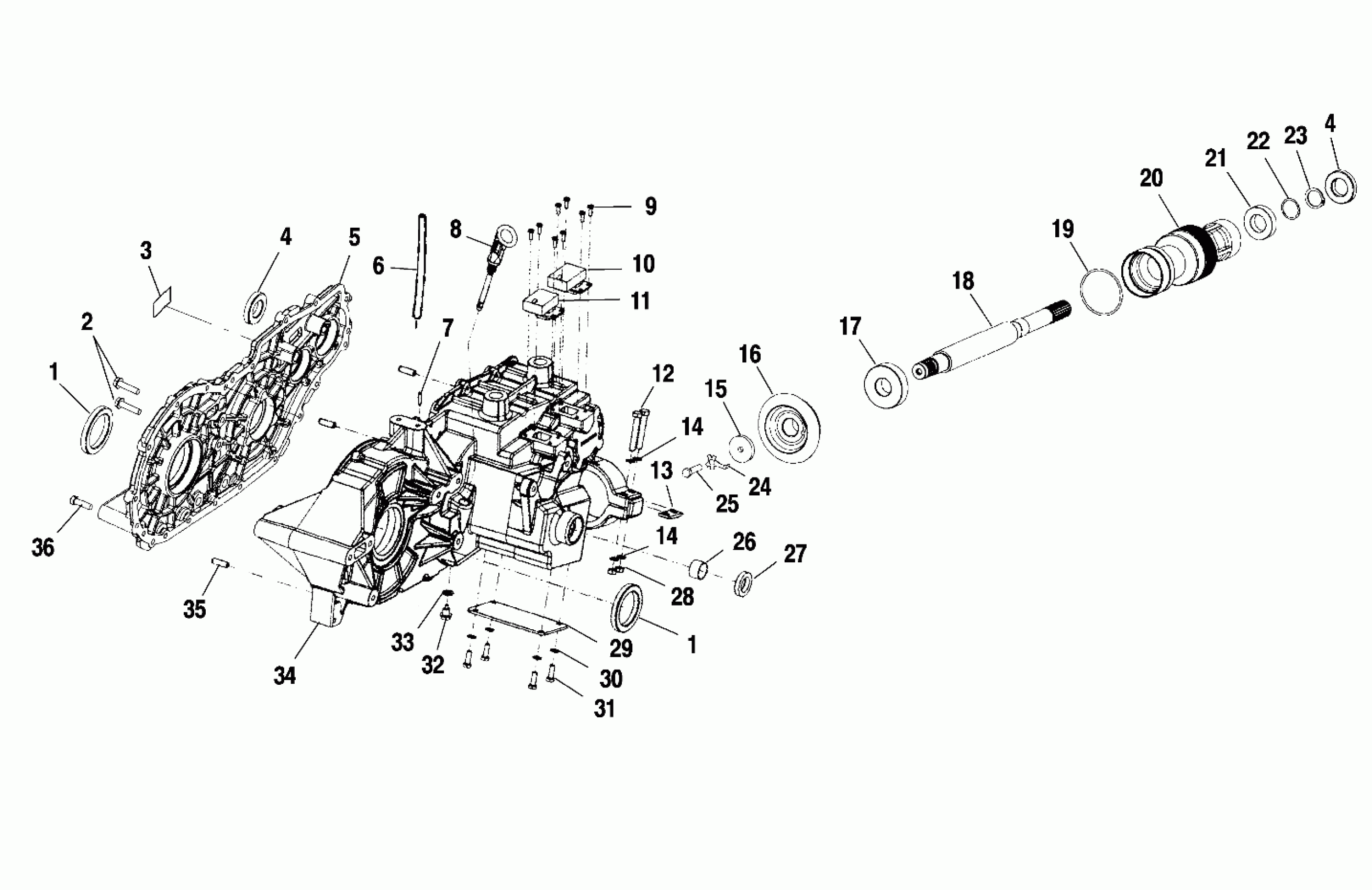

Polaris SPORTSMAN 400 - A01CH42AB GEARCASE (Cases and Snorkel) - A01CH42AA (4964436443C012) Diagram

#

Description
Price

-

Asm., Gearcase (See Gearcase/Internal Components Pg. C14)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

DECAL-SWITCH

3233636

Unavailable

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

GEARCASE-LH

3233778

Unavailable

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

Vent

3233037

Unavailable

8

Dipstick

3233475

Unavailable

9

SCREW

3233749

$5.59

10

SWITCH,ITW 2 POSITION

3233617

Unavailable

11

SWITCH-H/R,ITW

3233635

Unavailable

12

BOLT

3233442

$2.23

13

SPACER-SNORKLE CLAMP

3233779

$3.27

14

Washer (See Gearcase - Internal Components Pg. C14, Ref. 2)

-------

Unavailable

14

Washer (See Gearcase - Internal Components Pg. C14, Ref. 2)

-------

Unavailable

15

Washer

3233352

$1.83

16

GEAR,31T,SNORKEL

3233476

Unavailable

17

Bearing, Ball (See Gearcase -Internal Components Pg. C14, Ref. 39)

-------

Unavailable

18

SHAFT,SNORKEL

3233446

Unavailable

19

O-Ring

3233302

Unavailable

20

TUBE,SNORKEL

3233750

$189.59

21

BEARING,BALL

3233305

$31.99

22

SPACER (1.180x.995x.008) NOTE: Ref. 22 indicates choices, may also be used in combinations.

3233357

$21.99

22

SPACER (1.180x.995x.040)

3233355

$2.63

22

SPACER (1.180x.995x.010)

3233353

$2.55

22

SPACER (1.180x.995x.025)

3233354

$2.55

22

SPACER (1.180x.995x.005)

3233356

$2.62

23

RING,RETAINING

3233306

$4.79

24

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

25

Bolt

3233351

$1.99

26

Bushing

3233292

$31.99

27

Seal

3233293

Unavailable

28

NUT,FLEXLOCK

3233291

$3.03

29

PLATE,COVER

3233294

$11.59

30

WASHER,LOCK

3233295

$1.99

31

Screw

3233296

Unavailable

32

PLUG-HEX FLANGE

3233777

$34.99

33

PLUG, WASHER

3233254

$7.99

34

GEARCASE-RH

3233776

$984.99

35

PIN, DOWEL

3233247

$7.19

36

Screw

3233026

$6.46
