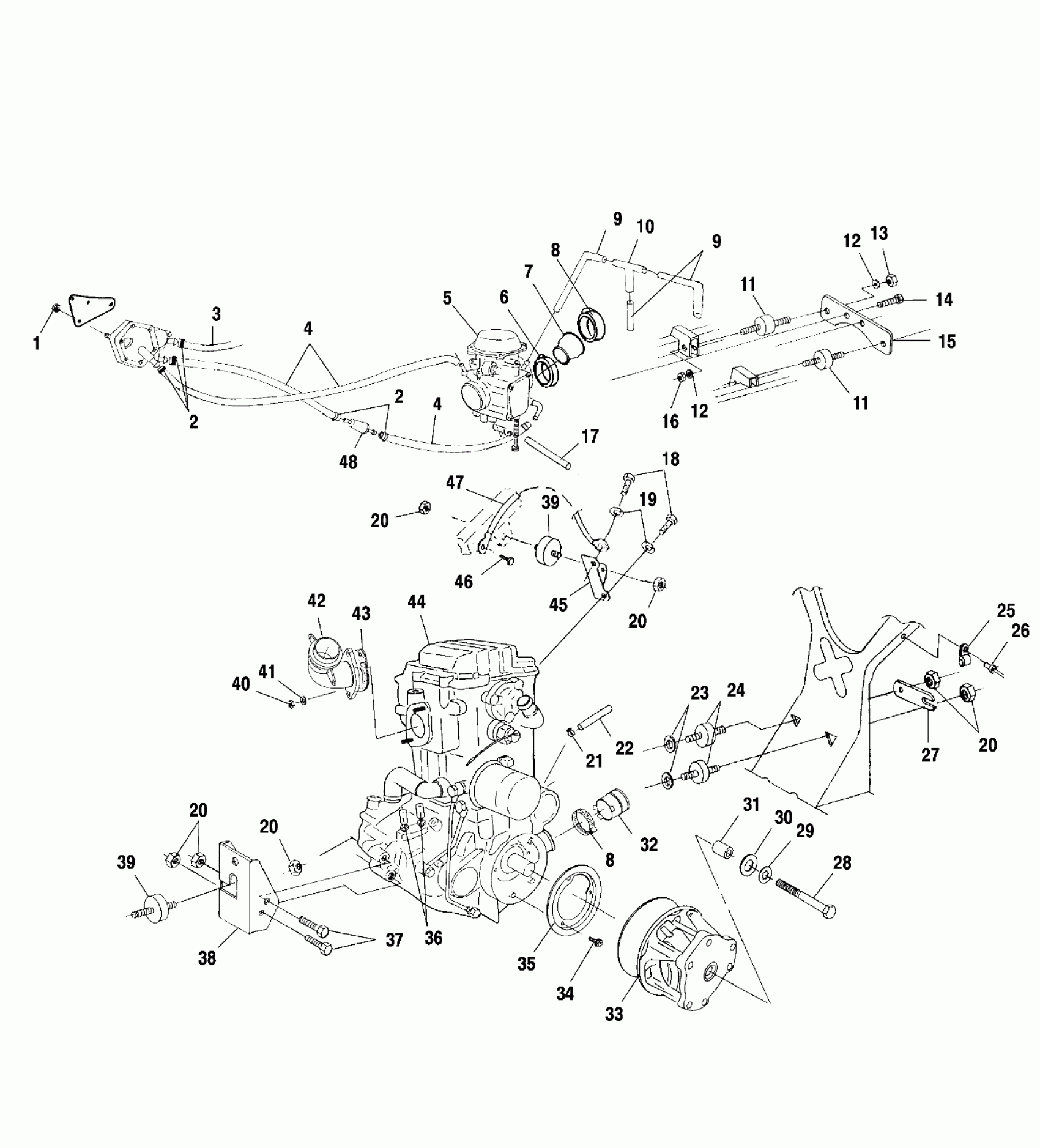

Polaris SPORTSMAN 400 - A01CH42AB ENGINE MOUNTING - A01CH42AA (4964436443A013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

ASM., CARBURETOR (See Carburetor Pg. D8, Ref. 9)

-------

Unavailable

6

CLAMP,BAND,NARROW

7080413

$3.19

7

BOOT,CARB

5410995

Unavailable

8

CLAMP, NARROW BAND(10)

7080511

$4.79

8

CLAMP, NARROW BAND(10)

7080511

$4.79

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FITTING, TEE

7052075

$9.59

11

Mount, Rubber

3110032

$7.99

11

Mount, Rubber

3110032

$7.99

12

WASHER(10)

7552605

$5.27

12

WASHER(10)

7552605

$5.27

13

NUT HEX(10)

7542105

$3.99

14

SCREW AND WASHER (See Carburetor Pg. D8, Ref. 8)

-------

Unavailable

15

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

16

NUTSERT,HEX(10)

7547069

$3.99

17

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

18

BOLT(10)

7512315

$4.79

19

LOCK WASHER(10)

7552901

$1.49

20

NUT

7547108

$4.79

20

NUT

7547108

$4.79

20

NUT

7547108

$4.79

20

NUT

7547108

$4.79

20

NUT

7547108

$4.79

21

CLAMP,HOSE,SPRING

7080694

$6.53

22

HOSE, BREATHER (See Air Box Pg. A12, Ref. 17)

-------

Unavailable

23

WASHER, FLAT(10)

7555815

$3.99

24

MOUNT,RUBBER,FRONT

3110046

Unavailable

25

CLAMP,NYLON,CABLE(10)

7080539

$4.79

26

RIVET(50)

7621462

$1.49

27

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

28

BOLT(10)

7512566

$30.79

29

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

BUSHING-.437 X.770 X.50

5430261

$7.19

32

BOOT,CLUTCH INTAKE

5410421

$11.19

33

Asm., Drive Clutch, Braking (See Drive Clutch Pg. C1, Ref. 14)

-------

Unavailable

34

SCREW AND WASHER (See Crankcase Pg. D1, Ref. 6)

-------

Unavailable

35

Bracket, Retainer, Seal (See Clutch Cover Pg. C3, Ref. 21)

-------

Unavailable

36

CLAMP-HOSE,.875-SS

7080474

$8.40

37

BOLT(10)

7515417

$4.79

38

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

39

MOUNT,RUBBER,TOP

3110044

Unavailable

39

MOUNT,RUBBER,TOP

3110044

Unavailable

40

NUT (See Cylinder Pg. D2, Ref. 23)

-------

Unavailable

41

WASHER (See Cylinder Pg. D2, Ref. 22)

-------

Unavailable

42

MANIFOLD 1.625,BLK

1261043-029

Unavailable

43

GASKET, EXHAUST (See Cylinder Pg. D2, Ref. 34)

-------

Unavailable

44

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required fo

3087023

Unavailable

45

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

46

BOLT(10)

7512232

$1.49

47

CABLE,GND-ENGINE

4010132

Unavailable

48

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
