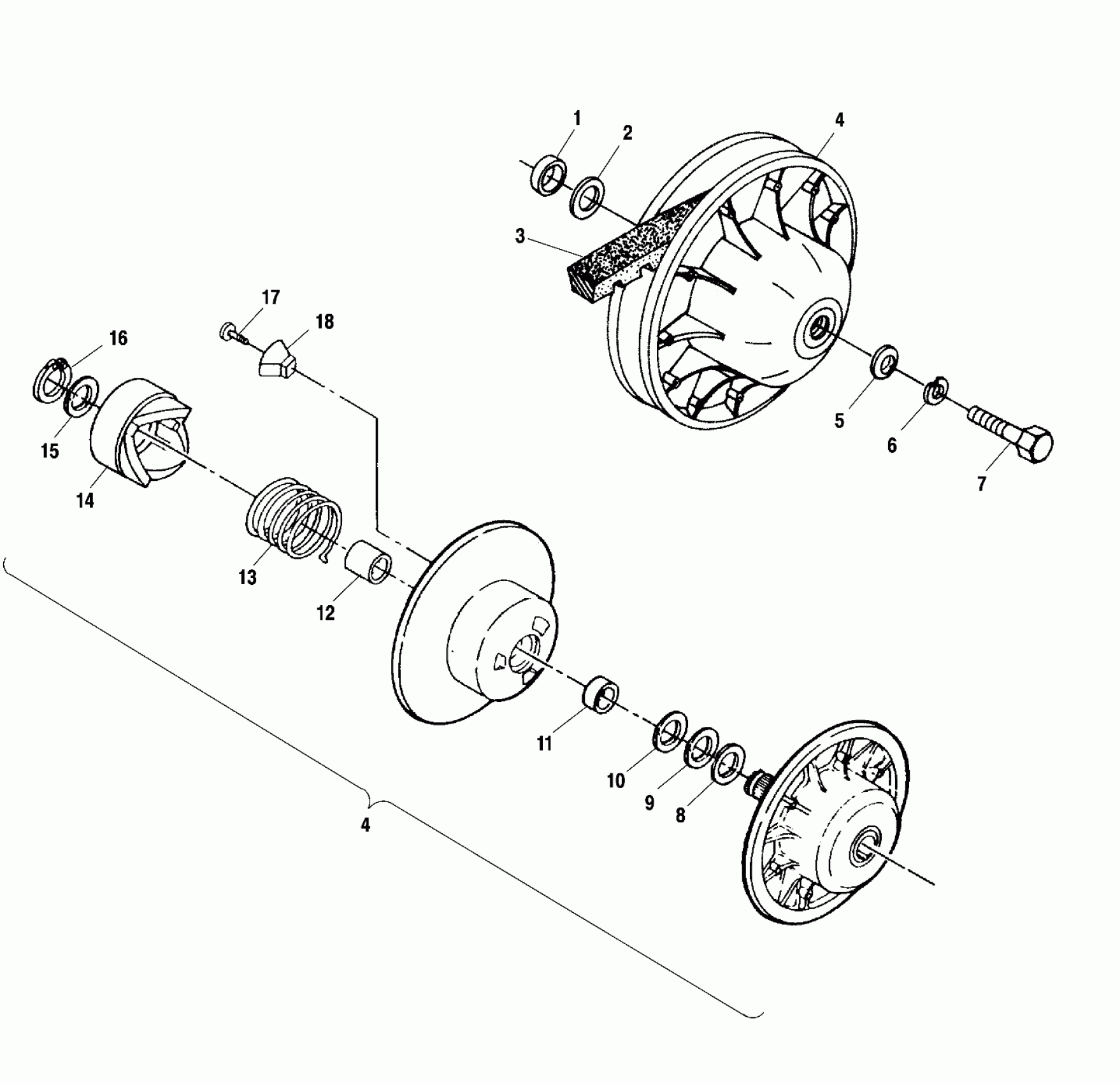

Polaris SPORTSMAN 400 - A01CH42AB DRIVEN CLUTCH - A01CH42AA (4964436443C002) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING-7/8 X 3/8 X 16 GA-Y (3 Max)

7556120

Unavailable

3

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

4

CLUTCH,DRVN,ASM (Incl. 8-12,15-18)

1321874

$614.99

4

CLUTCH,DRVN,ASM (Incl. 8-12,15-18)

1321874

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

BOLT(10)

7515382

$2.39

8

WASHER(10) (.020)

7555898

Unavailable

9

WASHER(10) (.025)

7556076

Unavailable

10

WASHER(10) (.030)

7556804

Unavailable

11

BUSHING, DRIVEN

3576504

$23.99

12

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

13

SPRING-CLTCH,CHRM,SLCN,BLK,DRI

7041782

$56.65

14

RAMP,STA,COMP (MACH)

5132344

$79.99

15

SPACER-1.350X1.750X.020-YW/TAB

5244116

$7.19

16

RING,RET.

7710448

$3.19

17

BOLT(10)

7511854

$1.49

18

BUTTON,RAMP

5430766

Unavailable
