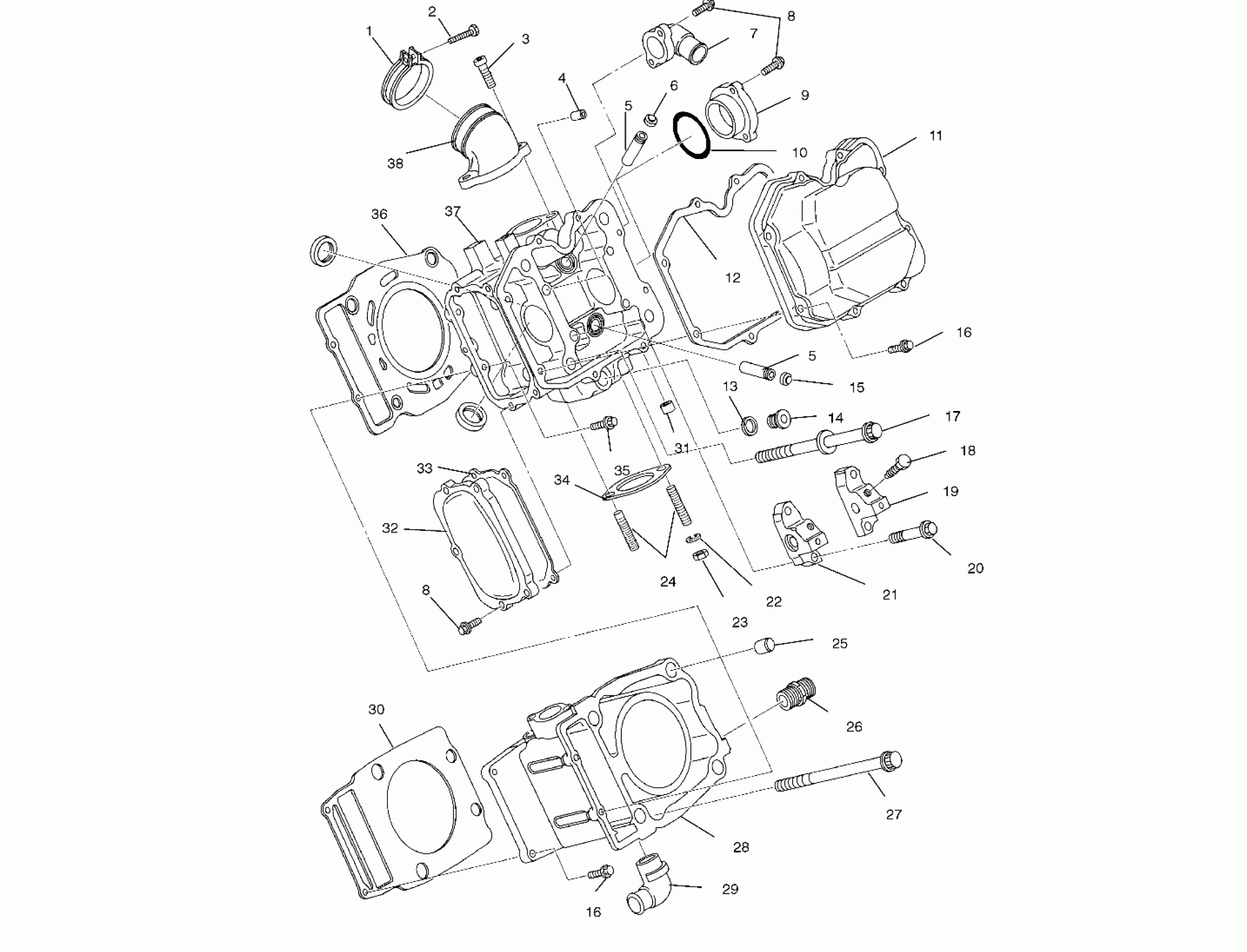

Polaris SPORTSMAN 400 - A01CH42AB CYLINDER - A01CH42AA (4964436443D002) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.38

3

Bolt, Allen

3081330

$3.97

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

5

GUIDE,VALVE

3084994

Unavailable

6

SEAL,INTAKE VALVE

3084858

$13.75

7

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

$64.75

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

ADAPTER,CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$24.27

11

COVER,ROCKER

3085073

$80.94

12

GASKET,(R.COVER)

3085074

$32.37

13

GASKET

3084861

$4.84

14

PLUG

3084860

$7.14

15

SEAL,EXHAUST VALVE

3084859

$24.27

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

BOLT

3084875

Unavailable

18

BOLT (ROCKER SHAFT)

3085854

Unavailable

19

SUPPORT,VALVE ROCKER

3084864

Unavailable

20

BOLT

3084876

$4.76

21

SUPPORT,VALVE ROCKER

3084863

$93.08

22

WASHER LOCK ,(10)

3080530

$3.17

23

NUT(10)

3080285

Unavailable

24

STUD,(10)

3085326

Unavailable

25

PIN,STRAIGHT

3084838

Unavailable

26

UNION,OIL PUMP

3084849

Unavailable

27

BOLT, FLANGE

3084873

Unavailable

28

CYLINDER (Incl. 29,31)

3087062

Unavailable

29

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

30

Gasket, Cylinder

3085370

$40.46

31

PLUG, BLIND

3084862

Unavailable

32

Cover, Camshaft

3084868

$60.70

33

GASKET-COVER CAM

3086200

Unavailable

34

GASKET,EXH.

3085075

$40.46

35

BOLT, FLANGE Substituted by 3086781

3084215

$4.76

36

GASKET,HEAD

3085337

$66.49

37

HEAD,CYLINDER * (Incl. 4-6,13-15,24,31)

3085527

$849.99

38

ADAPTER

3084879

Unavailable
