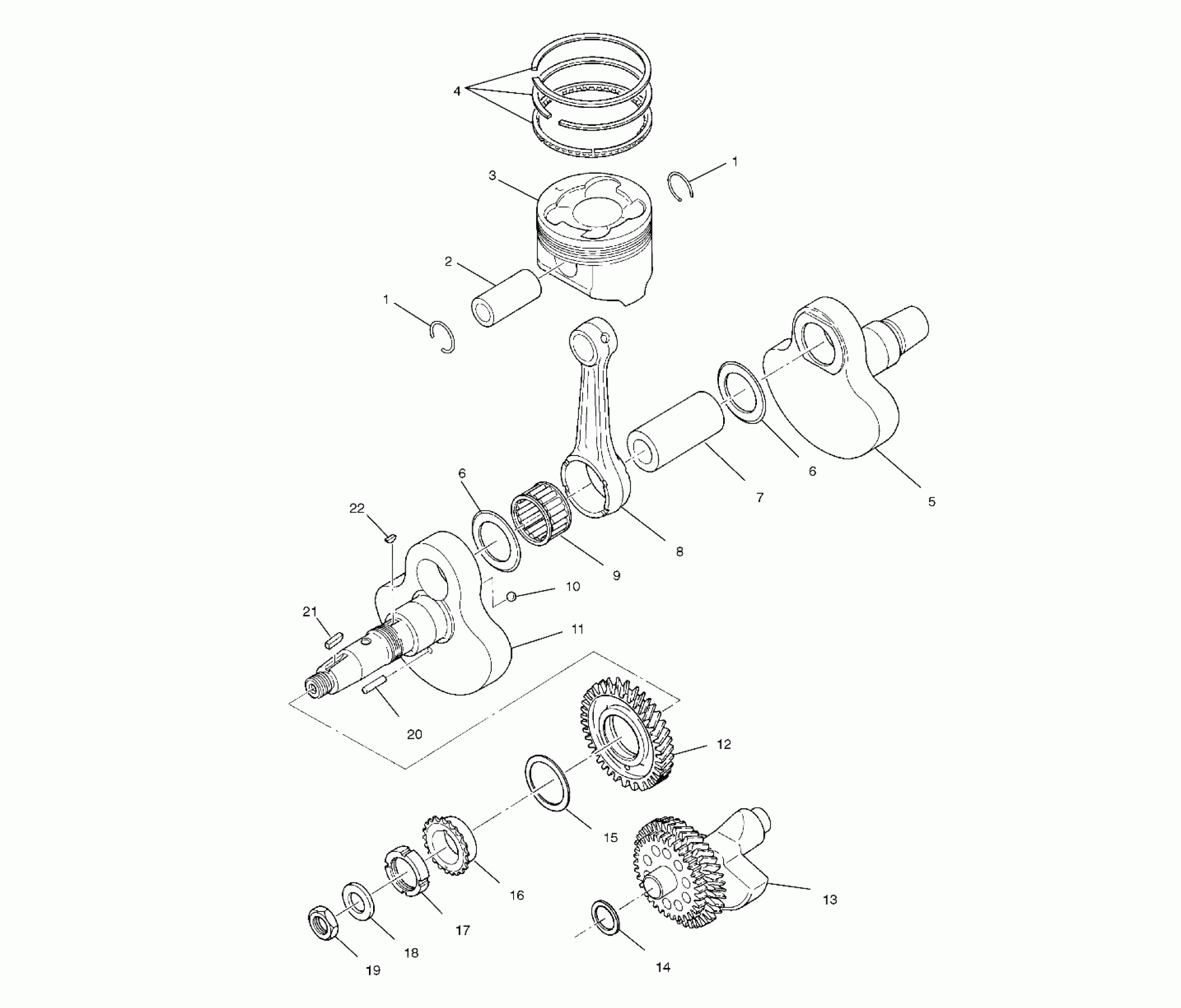

Polaris SPORTSMAN 400 - A01CH42AB CRANKSHAFT and PISTON - A01CH42AA (4964436443D003) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

PIN,PISTON

3084886

Unavailable

3

PISTON SET (STD) (Std)(Incl. 2)

3086207

Unavailable

3

PISTON SET(.25 O/S) (0.25 mm O/S)(Incl. 2)

3086208

Unavailable

3

PISTON SET(.50 O/S) (0.50 mm O/S)(Incl. 2)

3086209

Unavailable

4

PISTON-RING SET(STD) (Std)

3086488

Unavailable

4

PISTON-RING SET(0.25 O/S) (0.25 mm O/S)

3086489

Unavailable

4

PISTON-RING SET(0.50 O/S) (0.50 mm O/S)

3086490

Unavailable

5

CRANKSHAFT #2

3085340

$133.99

6

SPACER,CRANK PIN

3085344

$12.79

6

SPACER,CRANK PIN

3085344

$12.79

7

Pin, Crank

3085341

Unavailable

8

ROD,CONNECTING

3085342

Unavailable

9

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

10

BALL, STEEL

3085024

$5.59

11

CRANKSHAFT #1

3085339

$164.79

11

CRANKSHAFT (Incl. 5-12,20)

3084881

$774.99

12

BALANCER,GEAR,1 *

3085852

Unavailable

13

SHAFT,BALANCER *

3085404

Unavailable

14

SPACER (1.2)

3084897

$6.39

14

SPACER (0.8)

3084895

$6.39

14

SPACER (1.0)

3084896

$6.39

15

SPACER (1.2)

3084894

$19.99

15

SPACER (0.6)

3240088

$10.39

15

SPACER (1.0)

3084893

$19.99

15

SPACER (0.8)

3084892

$12.79

16

SPROCKET 1

3084882

Unavailable

17

NUT,SLIT

3085528

$35.99

18

WASHER Substituted by 3086767

3083904

Unavailable

19

LOCKNUT

3083905

Unavailable

20

Pin, Dowel

3085346

Unavailable

21

KEY

3081447

Unavailable

22

KEY Substituted by 3081543

3080130

Unavailable
