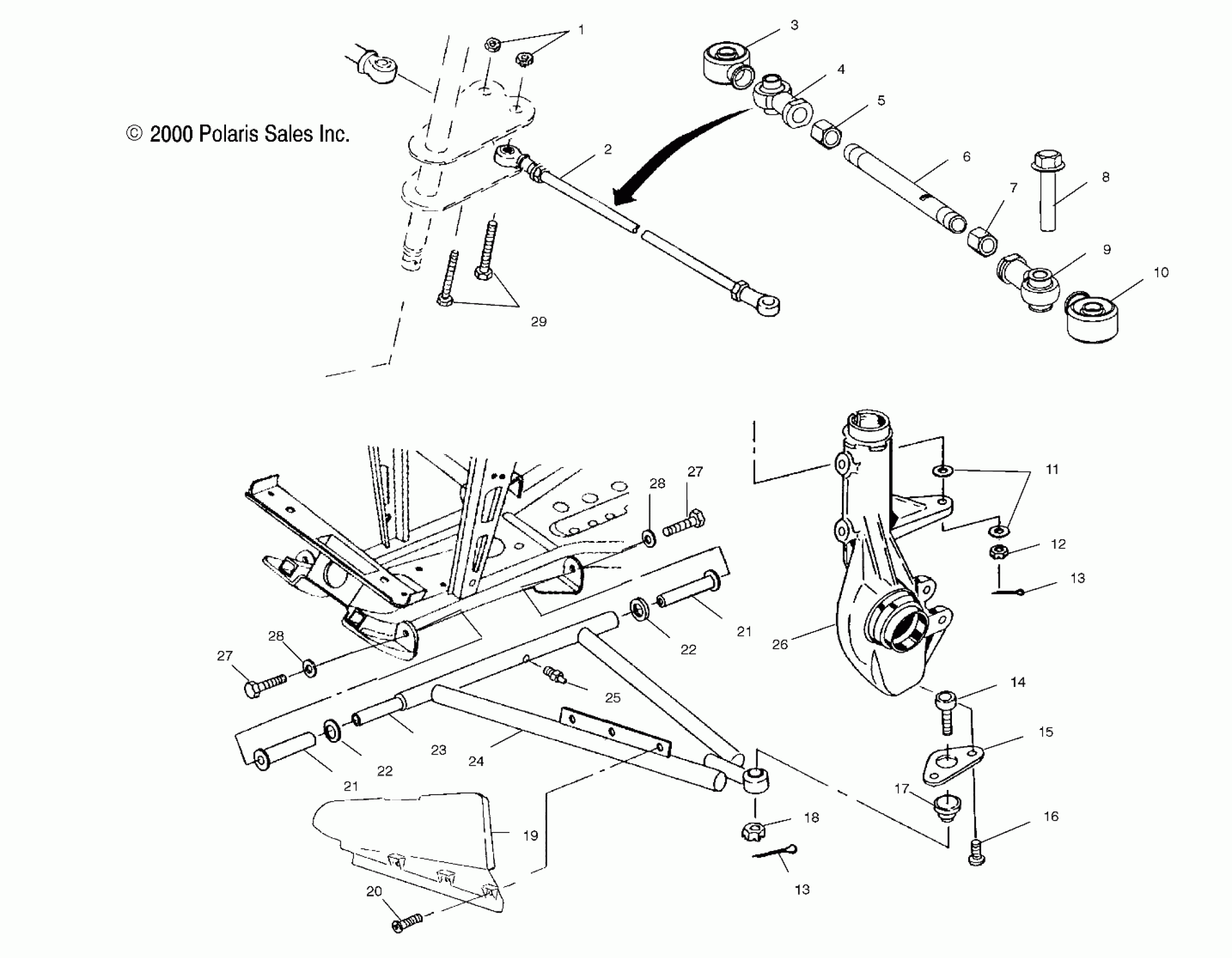

Polaris SPORTSMAN 400 - A01CH42AB A-ARM/STRUT MOUNTING - A01CH42AA (4964436443B012) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

TIE,ROD,1/2-20X13.4,ASM.

1820805

$133.56

3

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

4

ROD END,RH

7061034

$60.70

5

NUT-JAM(10)

7542711

$2.38

6

ROD,TIE

5020926

$44.51

7

NUT,LH,JAM(10)

7547028

$2.38

8

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

$5.56

9

ROD,END,10MM,1/2-20LH,42 DEG

7061054

$56.65

10

BOOT,SEAL,ROD END,10MM

5411920

$11.32

11

Washer

7556099

$1.59

12

NUT, CASTLE(10)

7546904

$4.76

13

PIN COTTER(10)

7661203

$1.19

13

PIN COTTER(10)

7661203

$1.19

14

BALL-JOINT,52 DEG,ATV

7080927

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SHIELD,LH.CV,BLK.

5431837

Unavailable

19

SHIELD,RH.CV,BLK.

5431838

Unavailable

20

SCREW(10)

7512084

$1.19

21

BUSHING,A ARM,LONG

5433066

$5.56

21

BUSHING,A ARM,LONG

5433066

$5.56

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

23

Shaft, A-Arm

5020681

$33.24

24

A-FRAME,KIT,LH (1541448)

2201607

$170.99

24

A-FRAME,KIT,RH (1541449)

2201608

$170.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.19

26

Asm., Heavy Hubstrut (See Front Strut Pg. B4, Ref. 16)

----

Unavailable

27

SCREW(10)

7512492

$1.19

27

SCREW(10)

7512492

$1.19

28

WASHER(10)

7552603

$0.79

28

WASHER(10)

7552603

$0.79

29

BOLT(10)

7515415

$1.19
