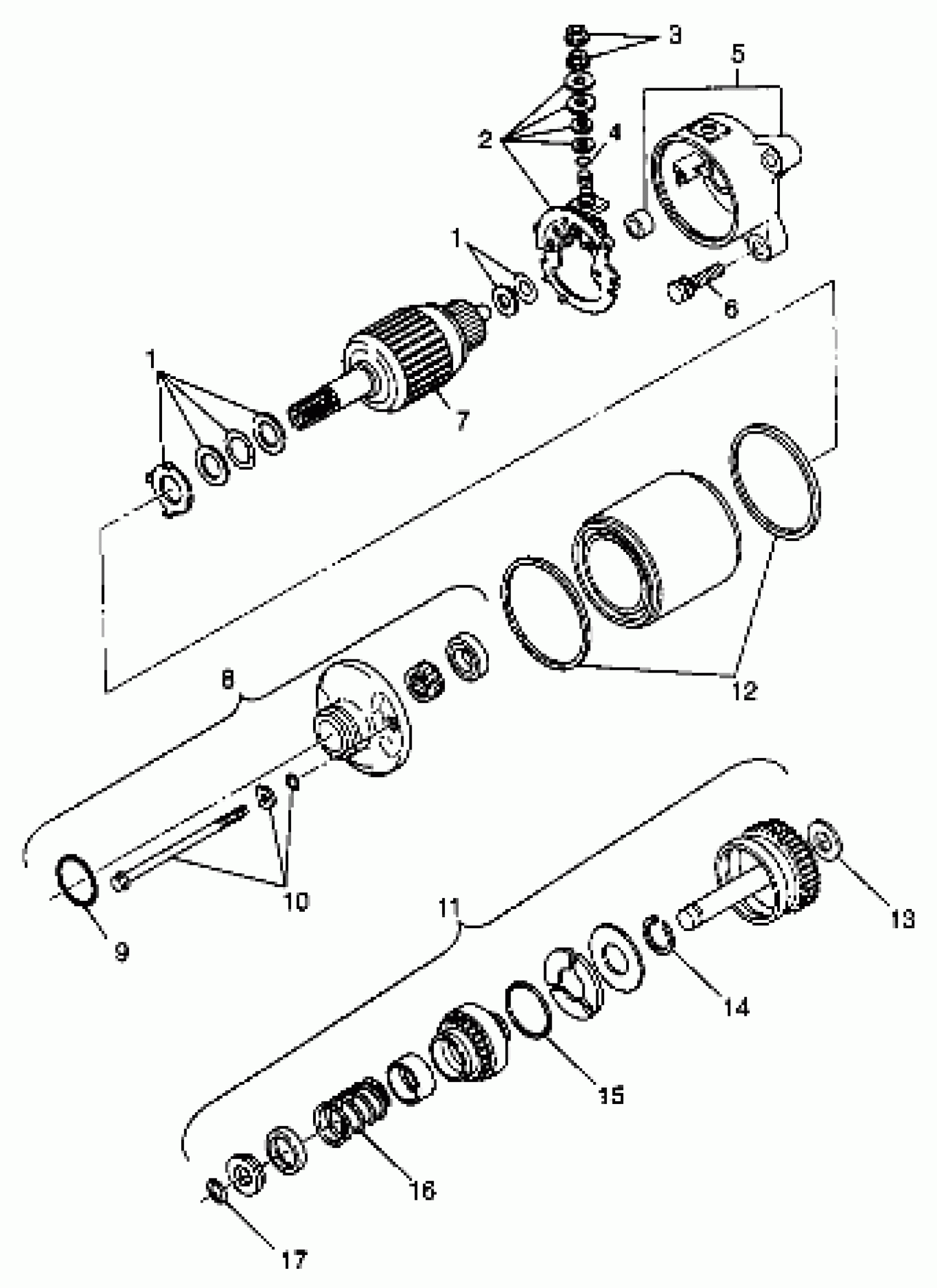

Polaris SPORTSMAN 335 - A99CH33CA STARTING MOTOR - A99CH33CA (4945964596e001) Diagram

Description

Price

MOTOR, STARTING * (Incl. 1-5,7-10,12)

3084981

Unavailable

Washer Set

3084982

Unavailable

Washer Set

3084982

Unavailable

BRUSH,COMPL.2-POLE *

3084406

$125.46

NUT, FLANGE(10)

3083649

$3.97

O-RING

3084408

Unavailable

COVER,REAR,STARTER(MAGNUM) (Incl. 3)

3085034

$93.08

BOLT&WASHER ASM.

3082038

$3.97

ARMATURE ASM.

3085353

Unavailable

COVER,FRT,STARTER(MAGNUM) * (Incl. 9)

3085033

$145.70

O-Ring

3240114

$6.99

BOLT ASM, SET (Incl. 4)

3084983

$23.81

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 13-17)

3085394

$271.10

RING, RUBBER

3084405

Unavailable

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

CLIP

3084412

$9.52

SPRING, WEIGHT

3084411

$15.56

SPRING, RETURN

3084410

Unavailable

CLIP

3084409

$7.14
