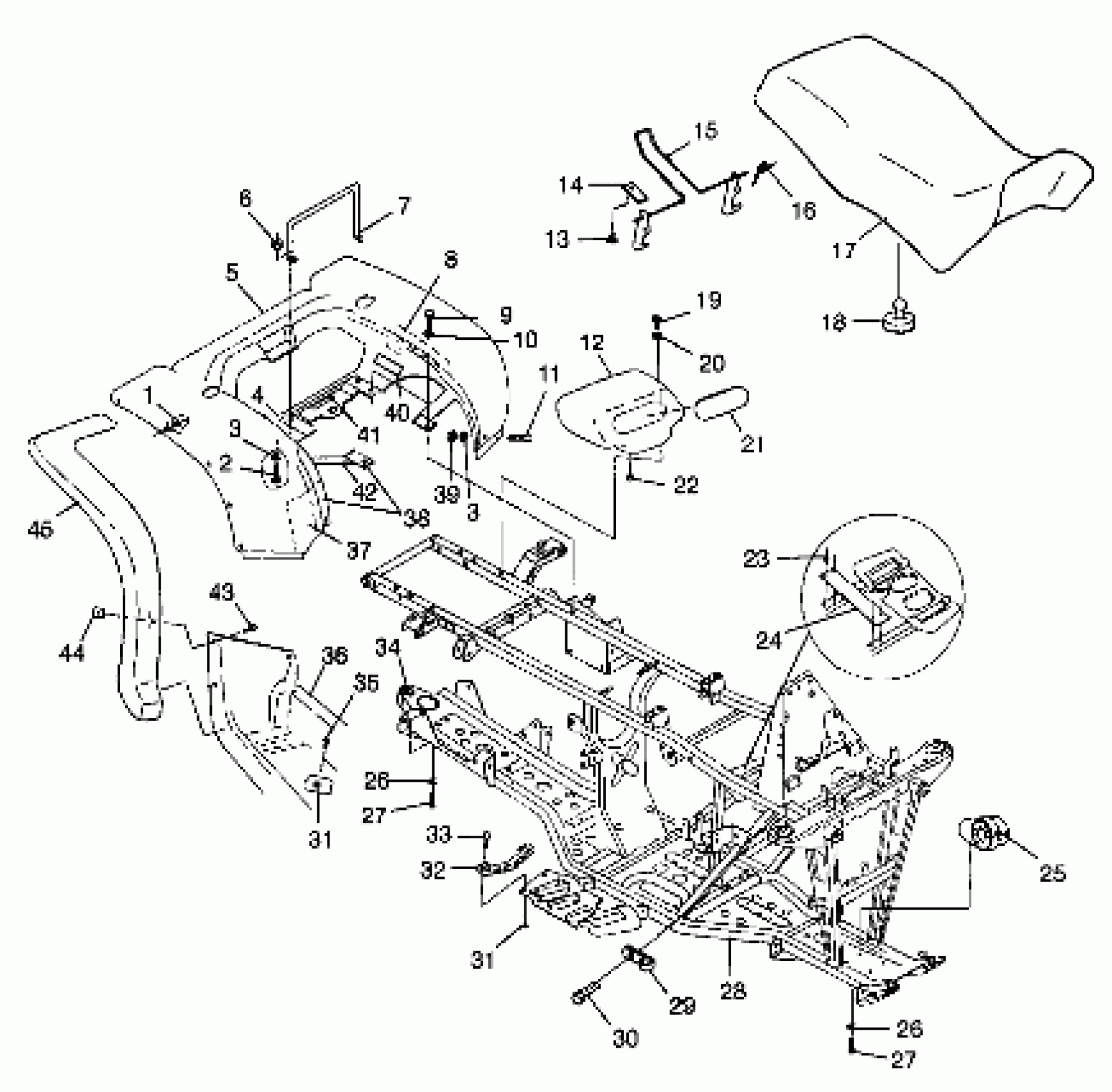

Polaris SPORTSMAN 335 - A99CH33CA REAR CAB and SEAT - A99CH33CB (4945964596a005) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

CAB,REAR,GEN 4,P.RED (A99CH33CB)

5432117-136

Unavailable

5

CAB,REAR,GEN 4,OLV.GRN. (A99CH33CA)

5432117-191

Unavailable

6

NUT(10)

7541925

$0.79

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.94

9

SCREW(10)

7512242

$2.38

10

WASHER, FLAT(10)

7555859

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

TOOLBOX

5431786

$53.17

13

BLIND RIVET(50)

7621403

$1.19

14

BRACKET,LEVER RETAINER

5211033

$34.99

15

LATCH,SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

COVER,SEAT,BLK.

2681747-070

$149.75

17

SEAT,BLK

2682441-070

$445.22

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.84

18

Bumper, Rubber

5410414

$3.17

19

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

21

COVER, TOOLBOX

5431787

Unavailable

22

CAP,DRAIN

5410896

$5.65

23

RIVET,INTERLOCK,B(50)

7661638

$1.19

24

GUARD-CLUTCH, BLK

5241403-067

$5.71

25

Asm., Gearcase (See Footnote) (See Gearcase - Internal Components Pg. D2 for Details)

----

Unavailable

26

WASHER(10)

7552603

$0.79

26

WASHER(10)

7552603

$0.79

27

BOLT(10) Substituted by 7512492

7515458

$1.19

27

BOLT(10) Substituted by 7512492

7515458

$1.19

28

FRAME,MAIN,BLK.

1040699-067

Unavailable

29

CLAMP,HOSE,1",NYLON

7080653

$4.76

30

SCREW,(10)

7512024

$4.76

31

NUT-LOCK(10)

7542122

$1.19

31

NUT-LOCK(10)

7542122

$1.19

32

SPACER,FOOTWELL

5432280

$8.73

33

SCREW

7517377

$4.76

34

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

35

SCREW Substituted by 7512279

7517376

$0.79

36

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

36

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

5432118-070

$230.70

37

FOIL FOAM

5811111

Unavailable

38

FOIL,FR,REAR CAB

5811106

Unavailable

39

NUT, LOCK(10) Substituted by 7541925

7541929

$0.79

40

DECAL,CARB.INFO.

7073761

Unavailable

41

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

42

FOIL-FOAM,(6X1)

5811087

Unavailable

43

BOLT(10)

7512232

$1.19

44

NUT, SPEED(10)

7670057

$1.19

45

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

45

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
