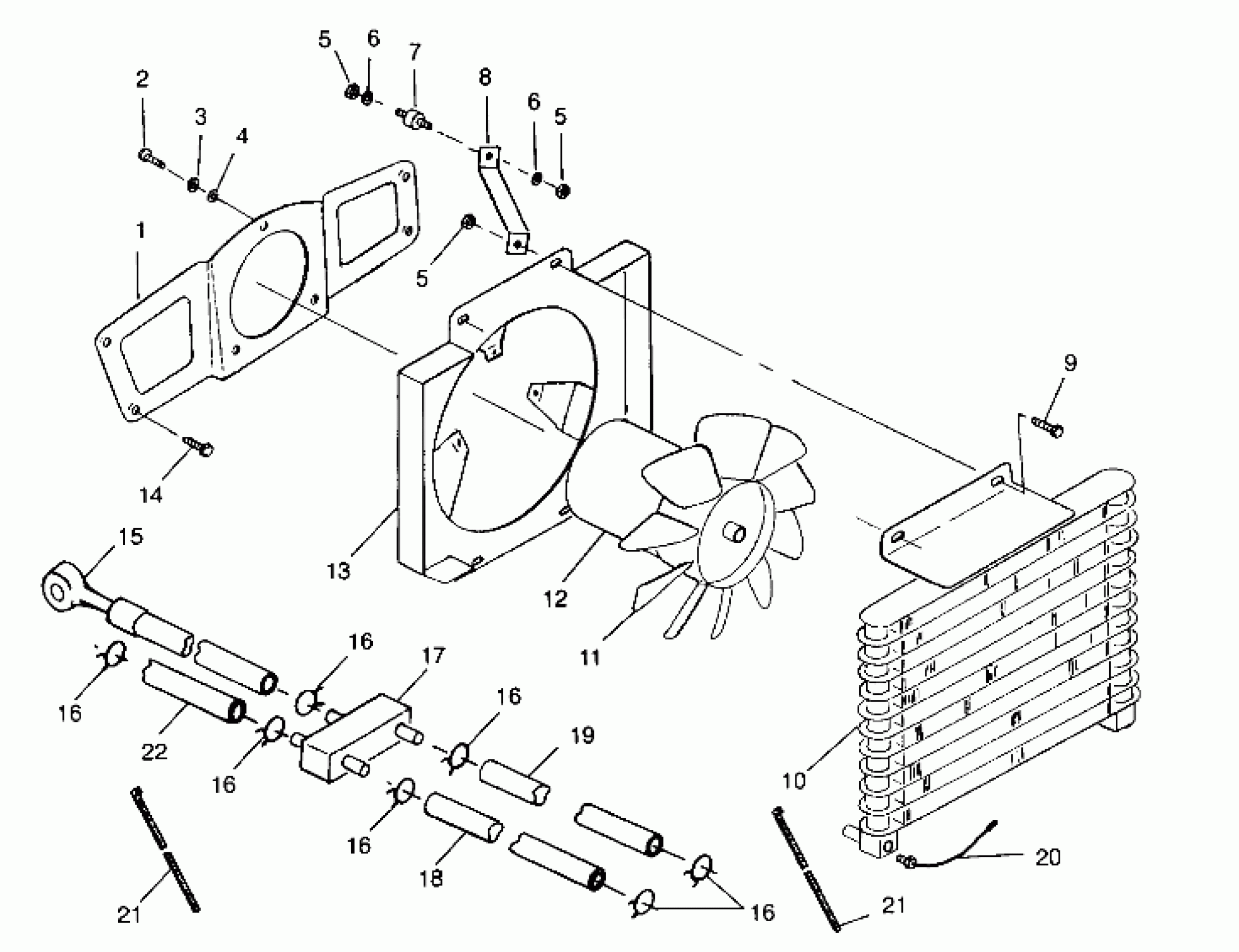

Polaris SPORTSMAN 335 - A99CH33CA OIL COOLING SYSTEM - A99CH33CB (4945964596a012) Diagram

#

Description
Price

1

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

2

SCREW(10)

7511875

$4.79

3

WASHER,TOOTH-LOCK(10)

7555780

Unavailable

4

WASHER, FLAT(10)

7558201

$5.79

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

5

NUT-LOCK(10)

7542122

$1.49

6

WASHER(10)

7558301

$1.49

6

WASHER(10)

7558301

$1.49

7

Mount, Rubber

3110032

$7.99

8

BRKT,COOLING FAN,BLK

5242924-067

Unavailable

9

BOLT(10)

7512240

$3.99

10

COOLER,OIL Substituted by 1240074

1240039

$331.16

11

BLADE,FAN,7"

5433034

Unavailable

12

MOTOR,FAN,D-SHAFT,AIR-COOL.

4170024

Unavailable

13

SHROUD,FAN

5433001

Unavailable

14

BOLT(10)

7512232

$1.49

15

Tube, Banjo Return (See Oil Tank Pg. C1, Ref. 9)

-------

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

16

CLAMP,WIRE

7080771

Unavailable

17

VALVE,THERMO

1240040

Unavailable

18

HOSE,OIL COOLER INLET

5411511

Unavailable

19

HOSE,COOLER OUTLET

5411514

Unavailable

20

SENSOR,THERMISTER

4010162

Unavailable

21

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

21

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

22

HOSE,THERMAL VALVE INLET

5411515

Unavailable
