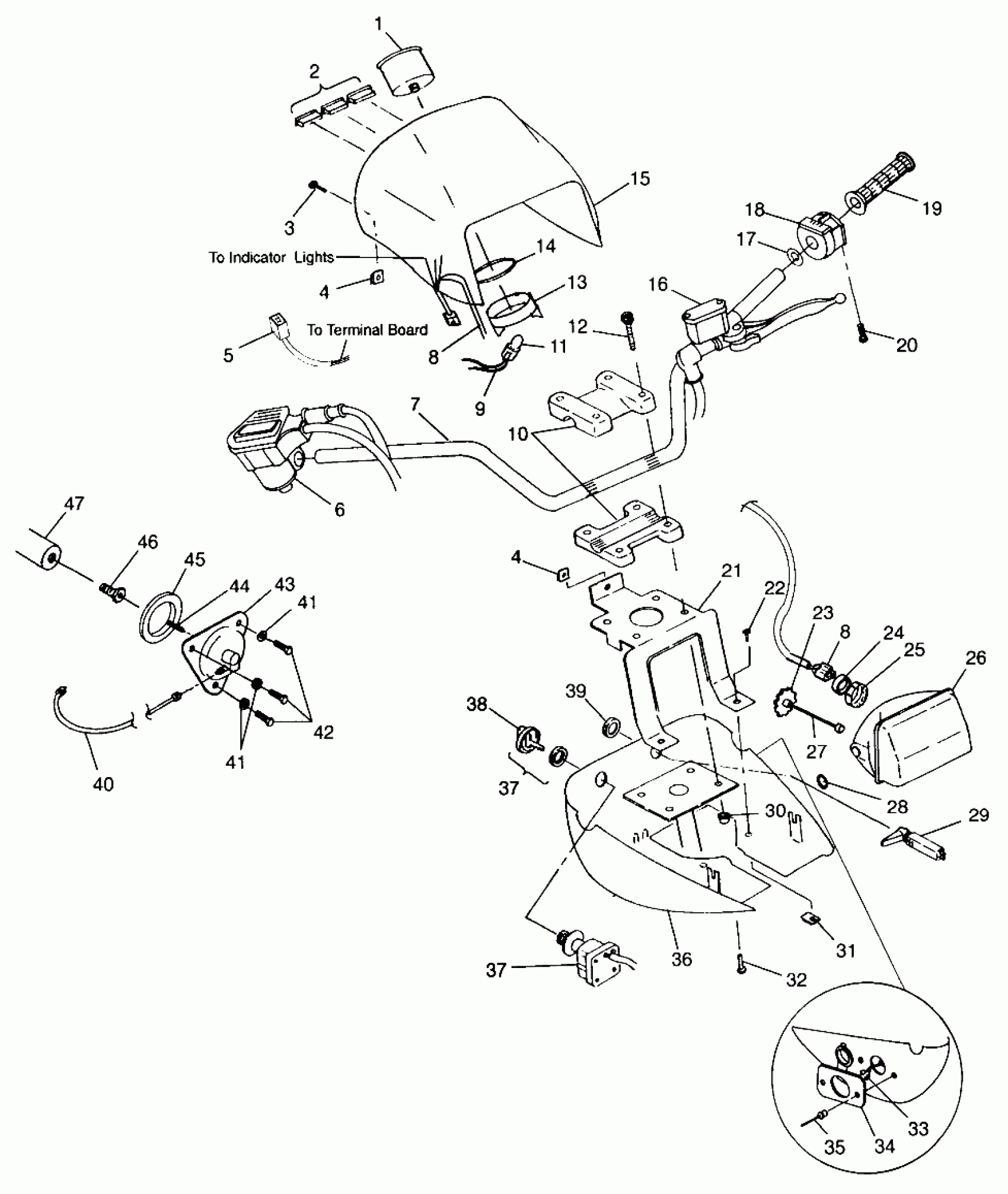

Polaris SPORTSMAN 335 - A99CH33CA HANDLEBAR and HEADLIGHT POD - A99CH33CB (4945964596b013) Diagram

#

Description
Price

1

SPEEDOMETER,3",ATV ASM. (Incl. 13,14)

3280326

$239.19

2

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,WIRE,INDIC,LOW.

2460574

$62.39

6

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B10 Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

9

HARNESS, SPEEDO

2460387

Unavailable

10

KIT,H'BAR BLOCK (Incl. Blocks &10,12,30)

2200774

Unavailable

10

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

11

BULB TAILLIGHT(10)

4030015

$4.03

12

SCREW(10)

7515188

$2.39

13

CLAMP,BACK,SPEEDO.

3280175

Unavailable

14

GASKET,SHOCK MT.

3280174

$9.11

15

POD,H/L,UP,OLV.GRN. (A99CH33CA)

5431812-191

Unavailable

15

POD,H/L,UP.,RED (A99CH33CB)

5431812-136

Unavailable

16

Asm., Master Cylinder (See Footnote) (See Controls - Throttle Asm./Brake Line Pg. B11 for details)

-------

Unavailable

17

SPACER-PLASTIC (.88)

5433198

Unavailable

18

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

19

GRIP, HANDLEBAR

5431030

$24.27

20

SCREW

2010055

Unavailable

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

DESC NOT_AVAILABLE

4032098

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

SCREW(10)

7522021

$3.99

33

HARNESS,12V OUTLET

2460471

Unavailable

34

POWERPLUG ASM,12V

2410025

Unavailable

35

RIVET(50)

7621334

$1.49

36

POD,H/L.LOW.BLK Substituted by 5433366-070

5432314-070

$93.08

37

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

37

KEYBLANK,ATV IGN,31 SER.

4110141

Unavailable

37

KEYBLANK,ATV IGN,32 SER. (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110148

$16.99

37

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

37

KEYBLANK,ATV IGN,31 SER.

4110141

Unavailable

37

KEYBLANK,ATV IGN,32 SER. (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110148

$16.99

38

COVER, KEY Substituted by 5433534

5431964

Unavailable

39

Nut

7080229

$19.99

40

CABLE,SPEEDO,(ATV)

3280236

Unavailable

41

WASHER(10)

7555725

Unavailable

41

WASHER(10)

7555725

Unavailable

42

BOLT(10)

7515378

$1.98

43

Adaptor, Drive (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 5)

-------

Unavailable

44

Key, Speedometer (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 6)

-------

Unavailable

45

Seal (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 7)

-------

Unavailable

46

Bushing, Speedometer Drive (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 34)

-------

Unavailable

47

Shaft, Output, Front Housing (See Footnote) (See Front Housing Pg. C13, Ref. 23)

-------

Unavailable
