Description

Price

-

Asm., Gearcase (See Footnote) (See Gearcase - Internal Components Pg. D2 for Details)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

BOLT(10)

7515378

$1.98

4

WASHER(10)

7555725

Unavailable

5

ADAPTER,DRIVE(1:1.2)

3280219

Unavailable

6

KEY,SPEEDO.DRIVE

3280217

Unavailable

7

SEAL,ANGLE DRIVE

3280164

Unavailable

8

Screw

3233026

$6.46

9

Seal

3233248

$30.88

9

Seal

3233248

$30.88

10

GEARCASE,LH

3233473

Unavailable

11

PIN, DOWEL

3233247

$7.19

12

Vent

3233037

Unavailable

13

Dipstick

3233475

Unavailable

14

Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)

-------

Unavailable

14

Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)

-------

Unavailable

15

BOLT

3233442

$2.23

16

Washer

3233352

$1.83

17

GEAR,29T,SPIRAL BEVEL

3233488

Unavailable

18

Ball Bearing (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 35)

-------

Unavailable

19

SHAFT,SNORKEL

3233446

Unavailable

20

O-Ring

3233302

Unavailable

21

SNORKEL

3233303

Unavailable

22

BEARING,BALL

3233305

$31.99

23

SPACER (1.180x.995x.008) (See Footnote) NOTE: Ref. 23 indicates choices, may also be used in combinations.

3233357

$21.99

23

SPACER (1.180x.995x.040)

3233355

$2.63

23

SPACER (1.180x.995x.010)

3233353

$2.55

23

SPACER (1.180x.995x.025)

3233354

$2.55

23

SPACER (1.180x.995x.005)

3233356

$2.62

24

RING,RETAINING

3233306

$4.79

25

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

26

Bolt

3233351

$1.99

27

NUT,FLEXLOCK

3233291

$3.03

28

Bushing

3233292

$31.99

29

Seal

3233293

Unavailable

30

PLATE,COVER

3233294

$11.59

31

WASHER,LOCK

3233295

$1.99

32

Screw

3233296

Unavailable

33

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

34

PLUG, WASHER

3233254

$7.99

35

GEARCASE,RH

3233487

Unavailable

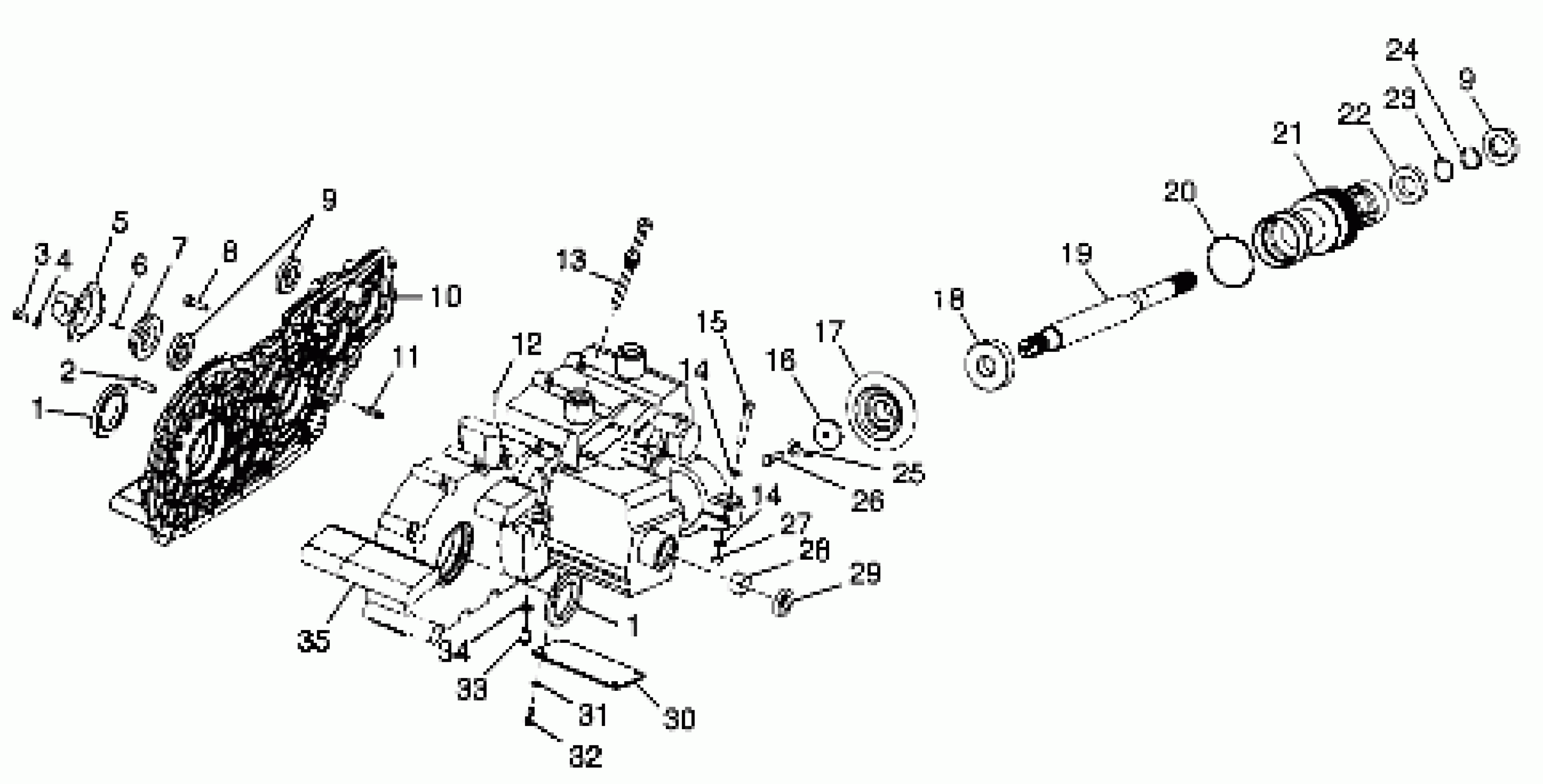

Polaris SPORTSMAN 335 - A99CH33CA GEARCASE (Cases and Snorkel) - A99CH33CB (4945964596d003) Diagram

Asm., Gearcase (See Footnote) (See Gearcase - Internal Components Pg. D2 for Details)

Seal

Seal

Screw

BOLT(10)

WASHER(10)

ADAPTER,DRIVE(1:1.2)

KEY,SPEEDO.DRIVE

SEAL,ANGLE DRIVE

Screw

Seal

Seal

GEARCASE,LH

PIN, DOWEL

Vent

Dipstick

Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)

Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)

BOLT

Washer

GEAR,29T,SPIRAL BEVEL

Ball Bearing (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 35)

SHAFT,SNORKEL

O-Ring

SNORKEL

BEARING,BALL

SPACER (1.180x.995x.008) (See Footnote) NOTE: Ref. 23 indicates choices, may also be used in combinations.

SPACER (1.180x.995x.040)

SPACER (1.180x.995x.010)

SPACER (1.180x.995x.025)

SPACER (1.180x.995x.005)

RING,RETAINING

BOLT,LOCK SNORKEL GEAR

Bolt

NUT,FLEXLOCK

Bushing

Seal

PLATE,COVER

WASHER,LOCK

Screw

PLUG, DRAIN Substituted by 3233777

PLUG, WASHER

GEARCASE,RH
