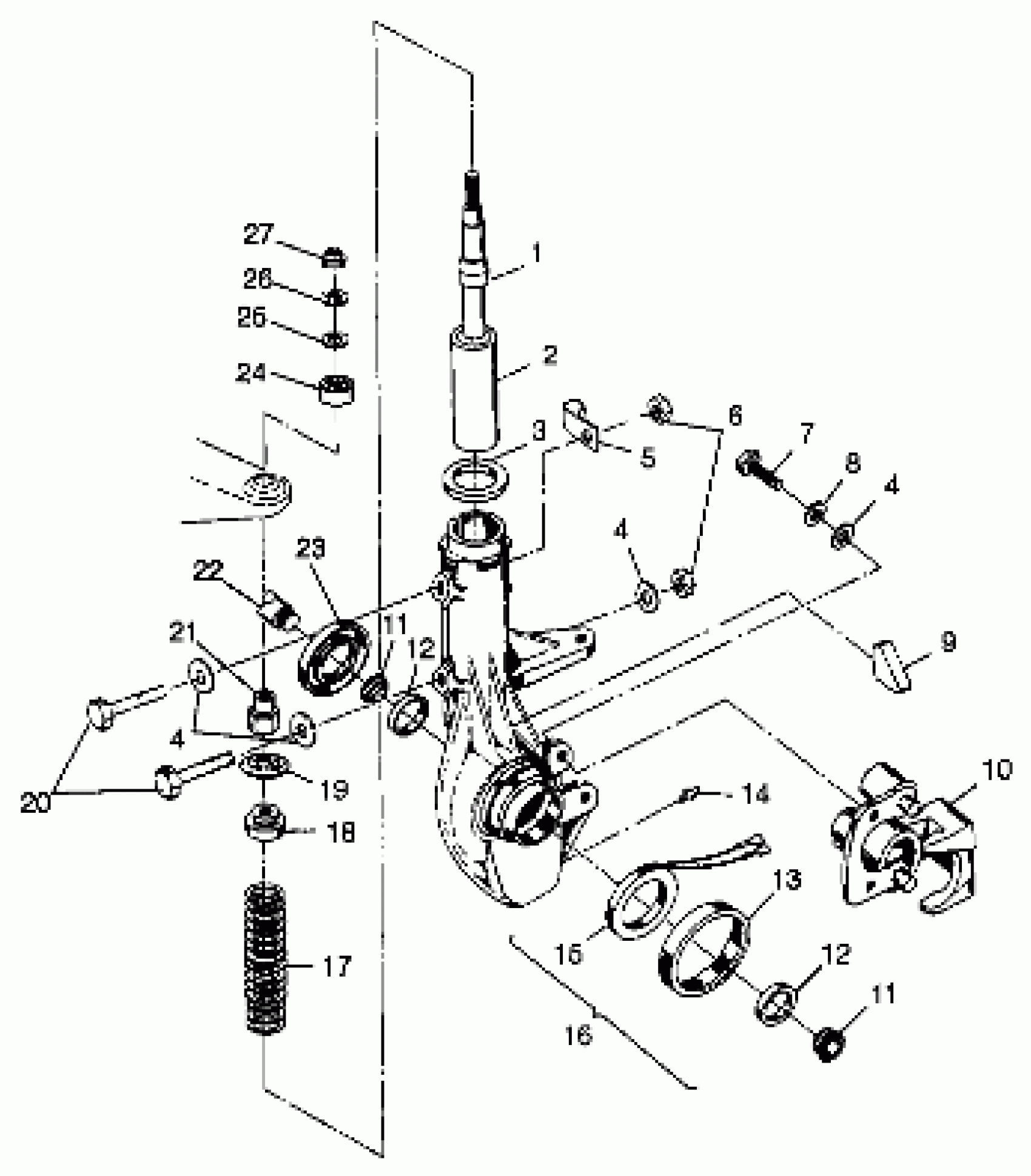

Polaris SPORTSMAN 335 - A99CH33CA FRONT STRUT - A99CH33CB (4945964596b007) Diagram

#

Description
Price

1

BUMPER,STRUT

5411468

Unavailable

2

STRUT,FRONT,32MM. Substituted by 7041755

7041374

Unavailable

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW, CAP(10)

7512365

$1.49

8

LOCK WASHER(10)

7552901

$1.49

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

Asm., Front Brake Caliper, RH (See Footnote) (See Front Brake Pg. B9 for Details)

-------

Unavailable

11

BEARING,TAPERED ROLLER

3554509

$23.99

11

BEARING,TAPERED ROLLER

3554509

$23.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

SLEEVE,STRUT HUB SEAL

5222193

$59.99

14

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

15

COIL,MAGN.,GRY,BRN/WHT,42" Substituted by 2201313

2410122

$121.41

16

HUBSTRUT,SVC,BRN/WHT,42,RH (Incl. 9,12-15,23)

2201312

Unavailable

16

HUBSTRUT,SVC,BRN/WHT,42,LH (Incl. 9,12-15,23)

2201311

Unavailable

17

SPRING,COIL,FR,SHOCK,BLK.

7041375-067

$79.99

18

RETAINER,SPRING,TOP

5220602

Unavailable

19

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

20

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

21

SPACER,THREADED

5130668

$27.99

22

Kit - Drive Shaft w/Sleeve (See Footnote) (See CV Joint - BTB Pg. B4, Ref. 13)

-------

Unavailable

23

SEAL, HUB STRUT

3610028

$31.99

24

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

25

SPACER-RUBBER

5810291

$3.99

26

WASHER(10)

7555749

$1.49

27

NUT,FLEX LOC(10)

7542507

$3.99
