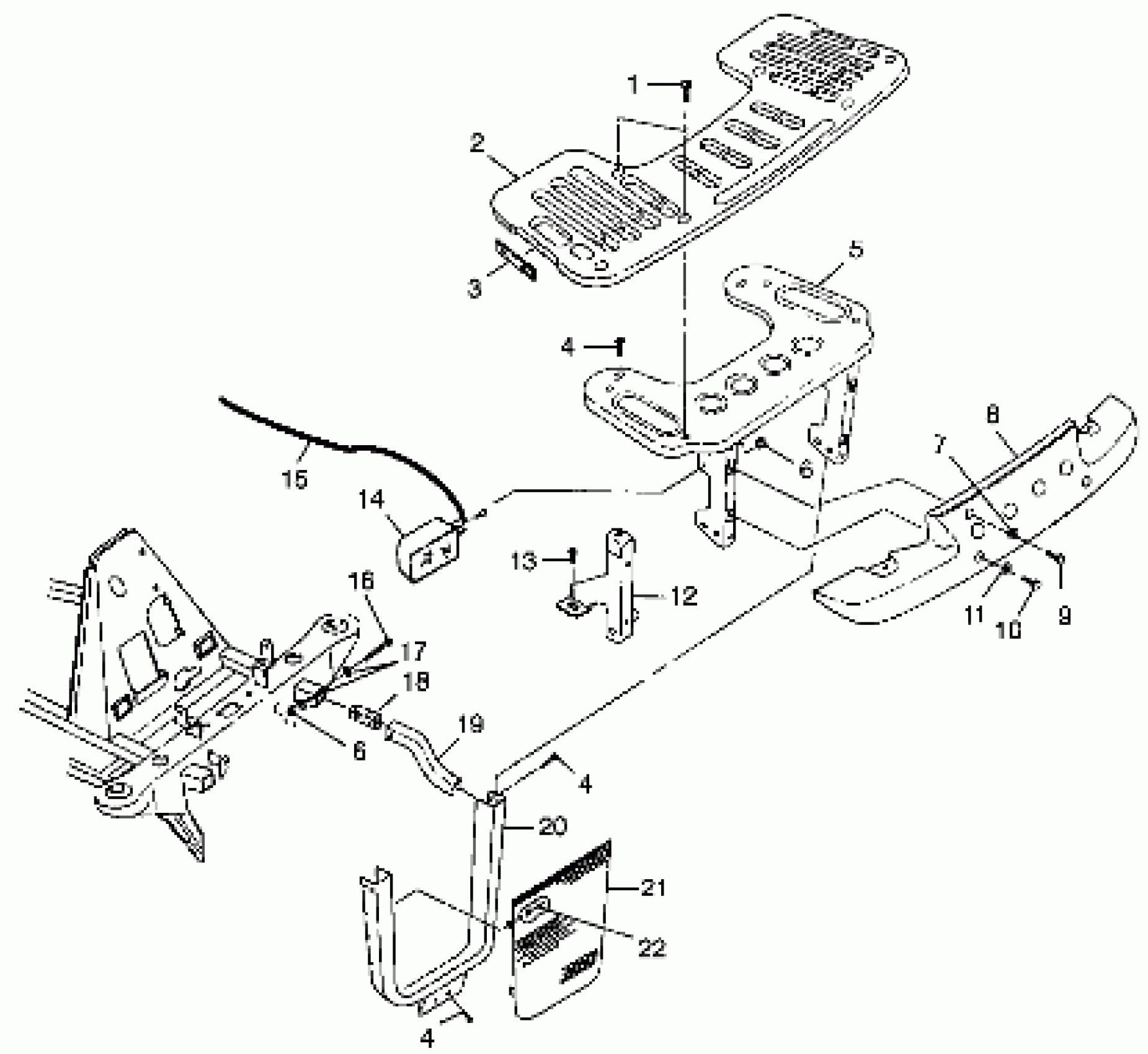

Polaris SPORTSMAN 335 - A99CH33CA FRONT RACK and BUMPER MOUNTING - A99CH33CB (4945964596a009) Diagram

#

Description
Price

1

SCREW(10) Substituted by 7517685

7515194

Unavailable

2

RACK ASM,FRONT Substituted by 2670180-070 (Incl. Ref. 3 & Warning Decal)

2670180

Unavailable

3

REFLECTOR AMBER

2670071

Unavailable

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

4

SCREW(10)

7515399

$1.49

5

KIT,FRT.RACK MOUNT

2200775

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER WROUGHT(10)

7558403

$4.79

8

BUMPER,BLK.

5432155-070

$143.99

9

BOLT(10)

7515391

$4.79

10

BOLT(10)

7515390

Unavailable

11

WASHER(10)

7555954

$4.79

12

SUPPORT,LH,F.RACK Substituted by 1013210-067

1040554-067

$69.99

12

SUPPORT,RH,F.RACK Substituted by 1013211-067

1040555-067

Unavailable

13

BOLT(10)

7512232

$1.49

14

BULB,H/L,27W.HOBBS

4030059

Unavailable

14

H/L ASM,LH,35W

2431014

Unavailable

14

H/L ASM,RH,35W

2431015

$92.99

15

HARNESS,H/L,LO

2460610

Unavailable

16

BOLT(10)

7515384

Unavailable

17

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

18

PLUG, FRAME

5810467

Unavailable

19

EXTENSION,LH.FRAME,BLK.

5241398-067

$91.27

19

EXTENSION,RH.FRAME,BLK.

5241399-067

Unavailable

20

GUARD,BRUSH,BLK

5241583-067

Unavailable

21

GRILL,BRUSHGUARD,BLK.

5240591-067

$62.99

22

RIVET, POP(50)

7621330

$1.49
