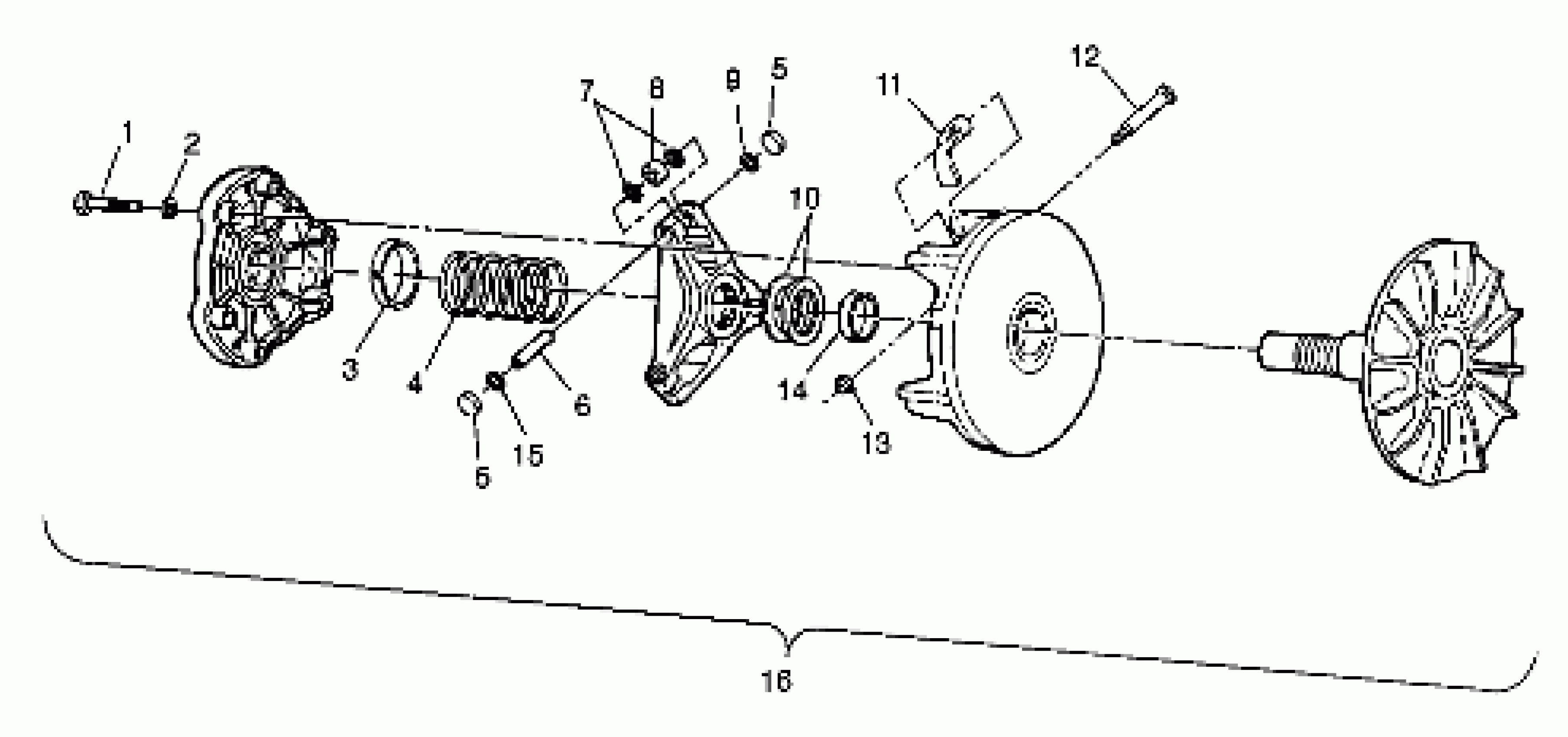

Polaris SPORTSMAN 335 - A99CH33CA DRIVE CLUTCH - A99CH33CB (4945964596c004) Diagram

#

Description
Price

1

BOLT(10) Substituted by 7512163

7512176

$3.97

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.52

4

SPRING,CLUTCH

7041157

$48.56

5

BUTTON, GUIDE(10)

5430768

$7.14

5

BUTTON, GUIDE(10)

5430768

$7.14

6

Pin, Spider

5020795

$23.81

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

O RING(10)

5410610

$5.65

10

SPACER(10) (.050)

5210754

Unavailable

10

SPACER(10) (.020)

5210752

Unavailable

10

SPACER(10) (.032)

5210753

Unavailable

11

WT.,CLUTCH,16(6)

5630279

$32.37

12

BOLT,SPECIAL(10)

7512266

$3.17

13

NUT FLEX LOC(10)

7541906

$3.17

14

BUSHING, DRIVEN

3576504

$23.81

15

Washer, Rubber

5410609

$1.59

16

CLUTCH,DRIVE(ATV-08) (Incl. All Less 4,11)

1321635

$697.13
