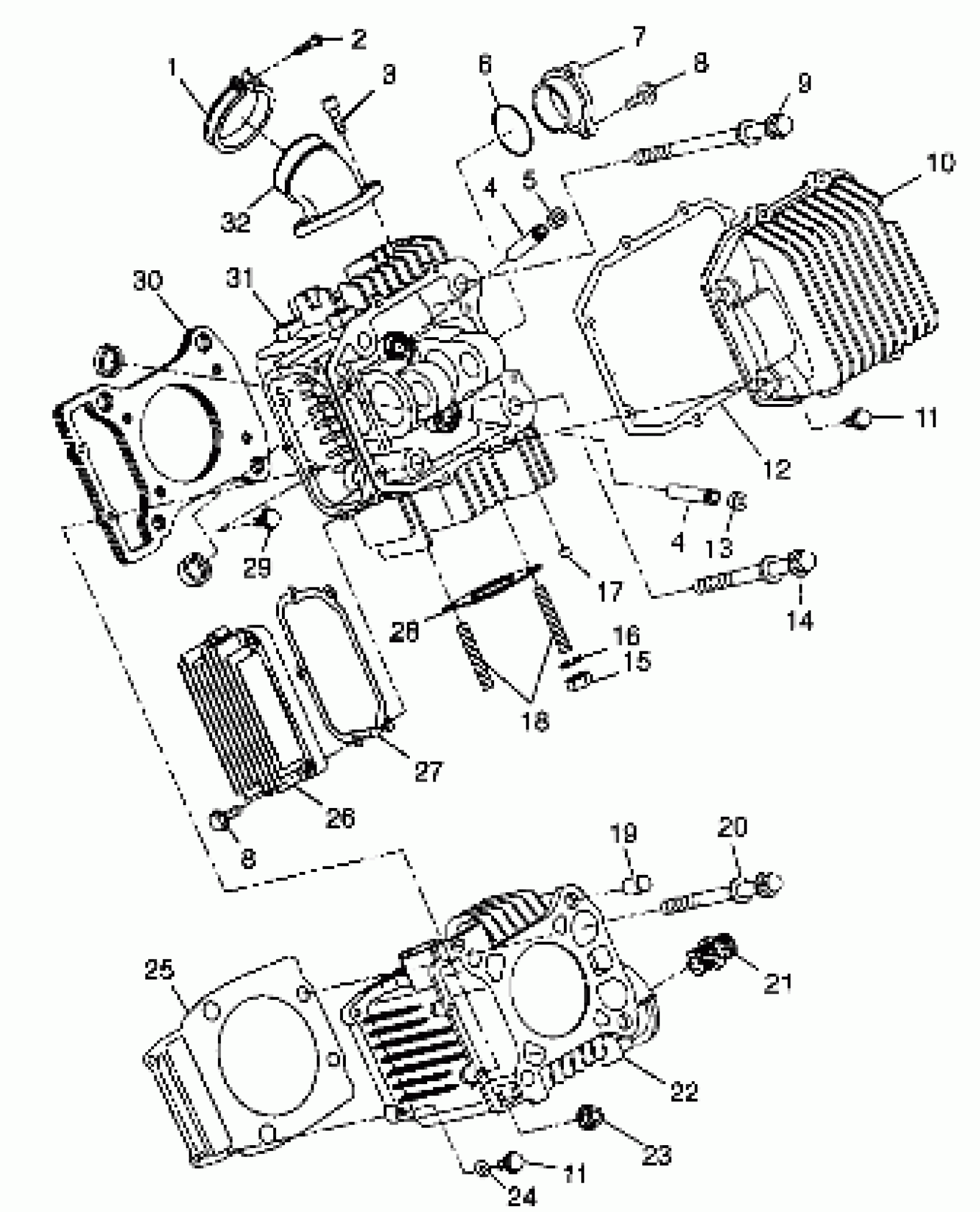

Polaris SPORTSMAN 335 - A99CH33CA CYLINDER - A99CH33CB (4945964596d006) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.39

3

Bolt, Allen

3081330

$3.99

4

GUIDE,VALVE

3084994

$39.99

4

GUIDE,VALVE

3084994

$39.99

5

SEAL,INTAKE VALVE

3084858

$13.59

6

O-RING

3084867

$23.99

7

ADAPTER,CAMSHAFT

3084866

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

BOLT

3084875

Unavailable

10

COVER,ROCKER

3085767

Unavailable

11

BOLT, FLANGE

3084874

Unavailable

11

BOLT, FLANGE

3084874

Unavailable

12

GASKET-ROCKER COVER

3085831

Unavailable

13

SEAL,EXHAUST VALVE

3084859

$23.99

14

BOLT (HEAD)

3085832

$7.99

15

NUT(10)

3080285

Unavailable

16

WASHER LOCK ,(10)

3080530

$3.19

17

PLUG, BLIND

3084862

Unavailable

18

STUD,(10)

3085326

Unavailable

19

PIN,STRAIGHT

3084838

Unavailable

20

BOLT, FLANGE

3084873

Unavailable

21

UNION,OIL PUMP

3084849

Unavailable

22

CYLINDER UNIT

3085762

Unavailable

23

NUT-FLANGE(10)

3082911

$1.99

24

Washer

3082206

$1.49

25

GASKET-CYLINDER

3085827

Unavailable

26

COVER-CAMSHAFT

3085830

Unavailable

27

GASKET Substituted by 3086200

3084869

Unavailable

28

GASKET,EXH.

3085075

$39.99

29

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

30

GASKET-HEAD

3085829

Unavailable

31

HEAD-CYLINDER Substituted by 3086849 (Incl. 4,5,13,17,18)

3085828

Unavailable

32

ADAPTER

3084879

Unavailable
