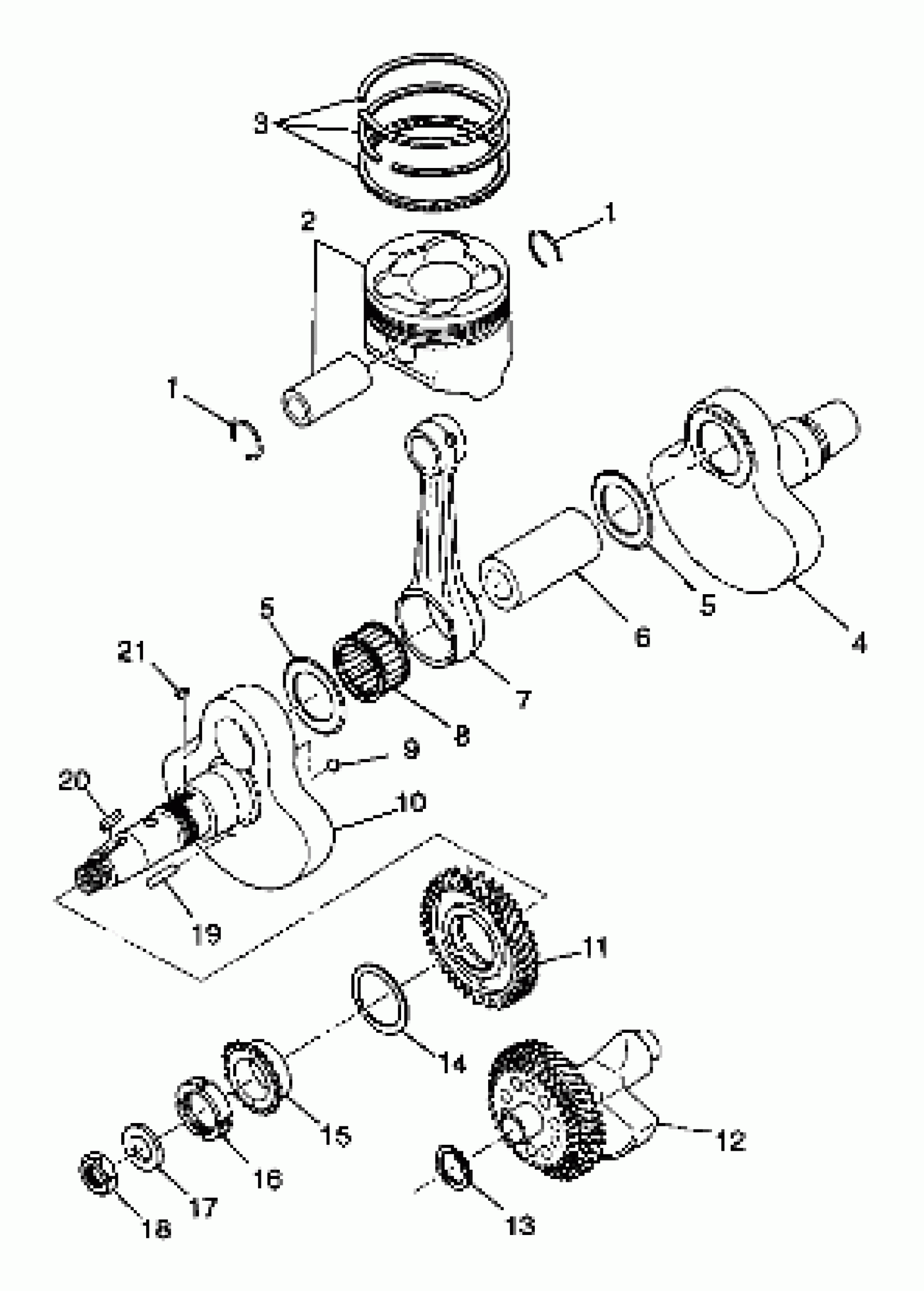

Polaris SPORTSMAN 335 - A99CH33CA CRANKSHAFT and PISTON - A99CH33CB (4945964596d007) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

PISTON-SET (STD) (Std.) (Incl. 1)

3085833

Unavailable

2

PISTON-SET (0.25O/S) (0.25 mm O/S) (Incl. 1)

3085834

Unavailable

2

PISTON-SET (0.50 O/S) (0.50 mm O/S) (Incl. 1)

3085835

Unavailable

3

PISTONRING SET,,STD * (Std.)

3085774

Unavailable

3

PISTONRING SET,(.25MM O/S) (0.25 mm O/S)

3085775

Unavailable

3

PISTONRING SET,(.50MM O/S) (0.50 mm O/S)

3085776

Unavailable

4

CRANKSHAFT #2

3085340

$133.99

5

SPACER,CRANK PIN

3085344

$12.79

5

SPACER,CRANK PIN

3085344

$12.79

6

Pin, Crank

3085341

Unavailable

7

ROD,CONNECTING

3085342

Unavailable

8

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

9

BALL, STEEL

3085024

$5.59

10

CRANKSHAFT #1

3085339

$164.79

10

CRANKSHAFT (Incl. 4-11,19)

3084881

$774.99

11

GEAR,BALANCER #1 Substituted by 3085852

3085401

Unavailable

12

SHAFT,BALANCER *

3085404

Unavailable

13

SPACER (1.2)

3084897

$6.39

13

SPACER (0.8)

3084895

$6.39

13

SPACER (1.0)

3084896

$6.39

14

SPACER (1.2)

3084894

$19.99

14

SPACER (0.6)

3240088

$10.39

14

SPACER (1.0)

3084893

$19.99

14

SPACER (0.8)

3084892

$12.79

15

SPROCKET 1

3084882

Unavailable

16

NUT,SLIT

3085528

$35.99

17

WASHER Substituted by 3086767

3083904

Unavailable

18

LOCKNUT

3083905

Unavailable

19

Pin, Dowel

3085346

Unavailable

20

KEY

3081447

Unavailable

21

KEY Substituted by 3081543

3080130

Unavailable
