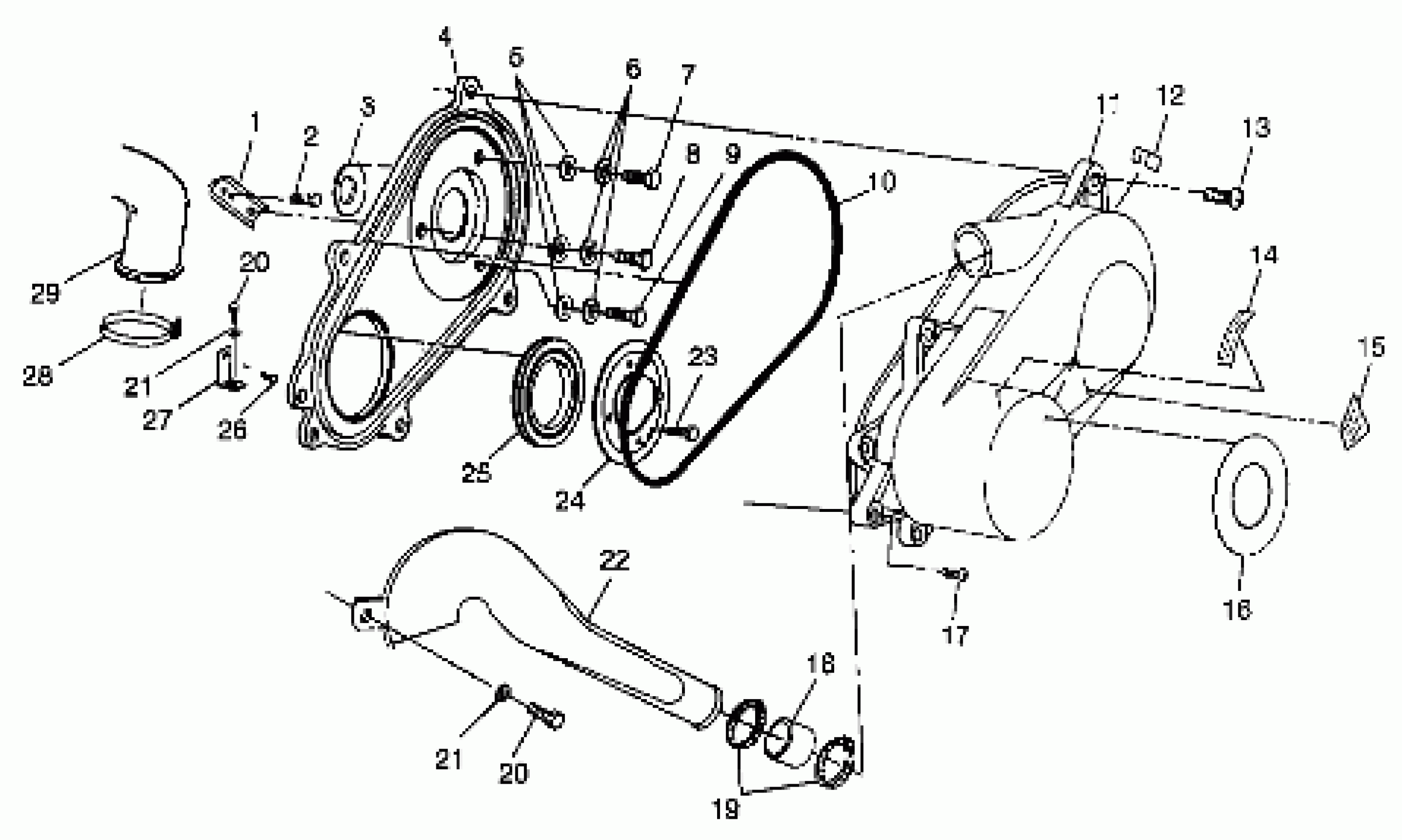

Polaris SPORTSMAN 335 - A99CH33CA CLUTCH COVER - A99CH33CB (4945964596c006) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.97

3

SEAL,COVER CASE

5410489

$13.75

4

KIT,CVR,IN.CLUTCH,(500) Substituted by 2201160 (Incl. 13,17,26)

2200793

Unavailable

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

6

WASHER(10)

7552605

$5.69

7

BOLT(10)

7512247

Unavailable

8

BOLT(10)

7512277

$4.76

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$32.37

11

COVER,CLUTCH,OUTER,HV Substituted by 5433540

5432849

$186.17

12

CLIP,CLUTCH COVER(10)

7670051

Unavailable

13

SCREW(10)

7512093

$1.19

14

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

15

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

16

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

17

SCREW(10)

7512094

$1.59

18

BOOT,DUCT,HI-FLOW

5411489

Unavailable

19

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

20

BOLT(10)

7512232

$1.19

20

BOLT(10)

7512232

$1.19

21

WASHER(10)

7555935

$2.38

21

WASHER(10)

7555935

$2.38

22

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980

5432947

Unavailable

23

Screw & Washer (See Crankcase Pg. D5, Ref. 7)

----

Unavailable

24

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

25

Seal, Cover Case

5410575

$44.51

26

SCREW(10)

7512095

$4.76

27

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

28

CLAMP, NARROW BAND(10)

7080511

$4.76

29

Duct, Air Inlet, Clutch (See Air Box Pg. B3, Ref. 7)

----

Unavailable
