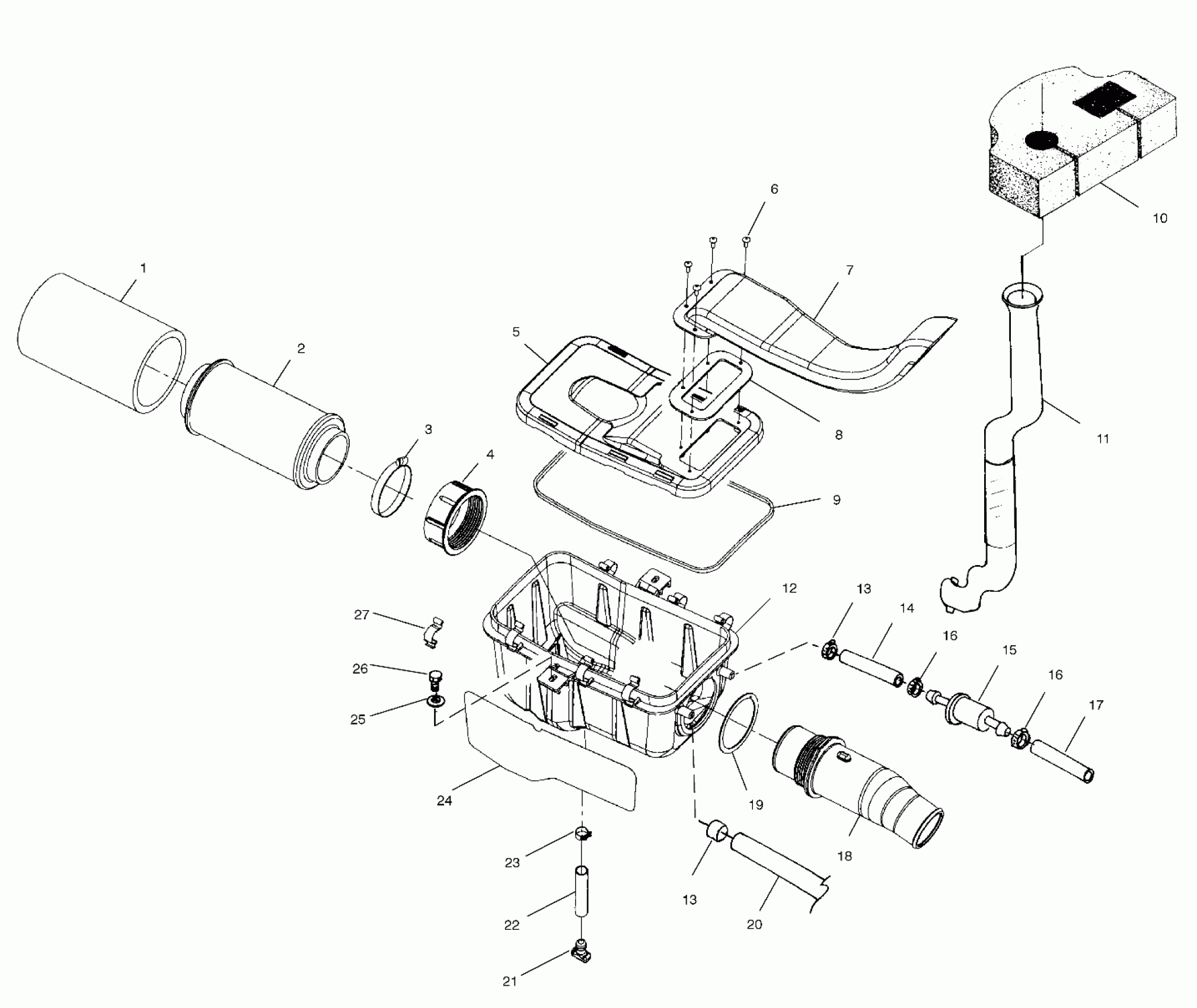

Polaris SPORTSMAN 335 - A99CH33CA AIR BOX - A99CH33CB (4945964596b003) Diagram

#

Description
Price

1

FOAM, FILTER

5811137

$11.19

2

FILTER,AIR INTAKE

7080595

Unavailable

3

CLAMP,BAND,NARROW

7080413

$3.19

4

COLLAR,CARB INLET

5432601

$12.79

5

COVER,AIRBOX

5432868

$51.99

6

SCREW,SEMS(10)

7517541

$4.79

7

DUCT,AIR INLET

5433293

$69.99

8

GASKET,INTAKE

5411422

$6.63

9

SEAL,AIRBOX COVER

5811482

Unavailable

10

SEAL,FOAM

5811626

$31.99

11

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

12

BOX,AIR INT,4-STROKE

5432774

$117.37

13

CLAMP,HOSE

7080699

$1.59

13

CLAMP,HOSE

7080699

$1.59

14

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

15

FILTER,BREATHER,IN LINE

2530029

$6.39

16

CLAMP,HOSE(10)

7080544

Unavailable

16

CLAMP,HOSE(10)

7080544

Unavailable

17

HOSE,BREATHER(50.5 CM.)

5411477

Unavailable

18

DUCT,CARB.INLET

5432858

$91.99

19

GASKET,CARB.IN.DUCT

5830128

Unavailable

20

BREATHER-LINE-112 CM,SLIT

5411668

Unavailable

21

Plug, Trap

5432377

Unavailable

22

FUEL LINE

8450059-150

Unavailable

23

CLAMP,HOSE,(10)

7080650

$3.99

24

FOIL,AIRBOX

5811650

Unavailable

25

WASHER(10)

7558301

$1.49

26

SCREW(10)

7515180

Unavailable

27

CLIP-AIR BOX

5242044

$9.59
