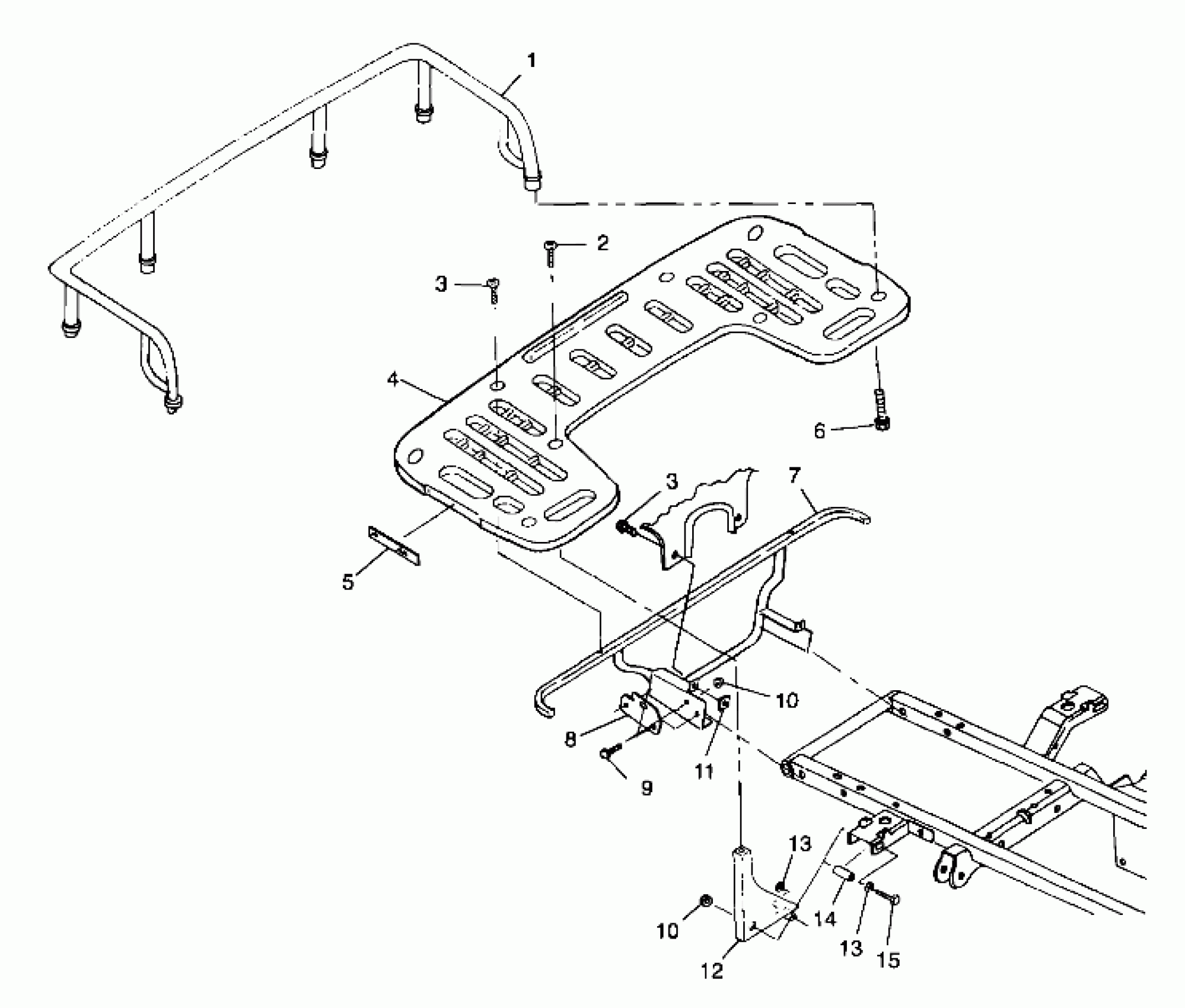

Polaris SPORTSMAN 335 - A99CH33AB REAR RACK MOUNTING - A99CH33IA (4949884988a008) Diagram

#

Description
Price

1

RACK EXT,REAR,GENIV,3.5" (Incl. 6)

2871501

$73.95

2

SCREW(10)

7515193

$1.59

3

SCREW(10) Substituted by 7517685

7515194

$1.59

3

SCREW(10) Substituted by 7517685

7515194

$1.59

4

RACK ASM,REAR Substituted by 2670174-070 (Incl. 5 & Warning Decal)

2670174

Unavailable

5

REFLECTOR RED

2670070

$9.84

6

SCREW(10)

7517208

$1.98

7

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

8

BRKT,SILENCER,FRAME,BLK

5241663-067

$10.51

9

BOLT(10)

7512329

$3.97

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

Nut

7670096

$1.59

12

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

12

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

13

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

14

Spacer

5333332-067

$6.59

15

SCREW(10)

7515385

$5.56
