- SPORTSMAN 335 - A99CH33AB
OIL COOLING SYSTEM - A99CH33IA (4949884988a012)

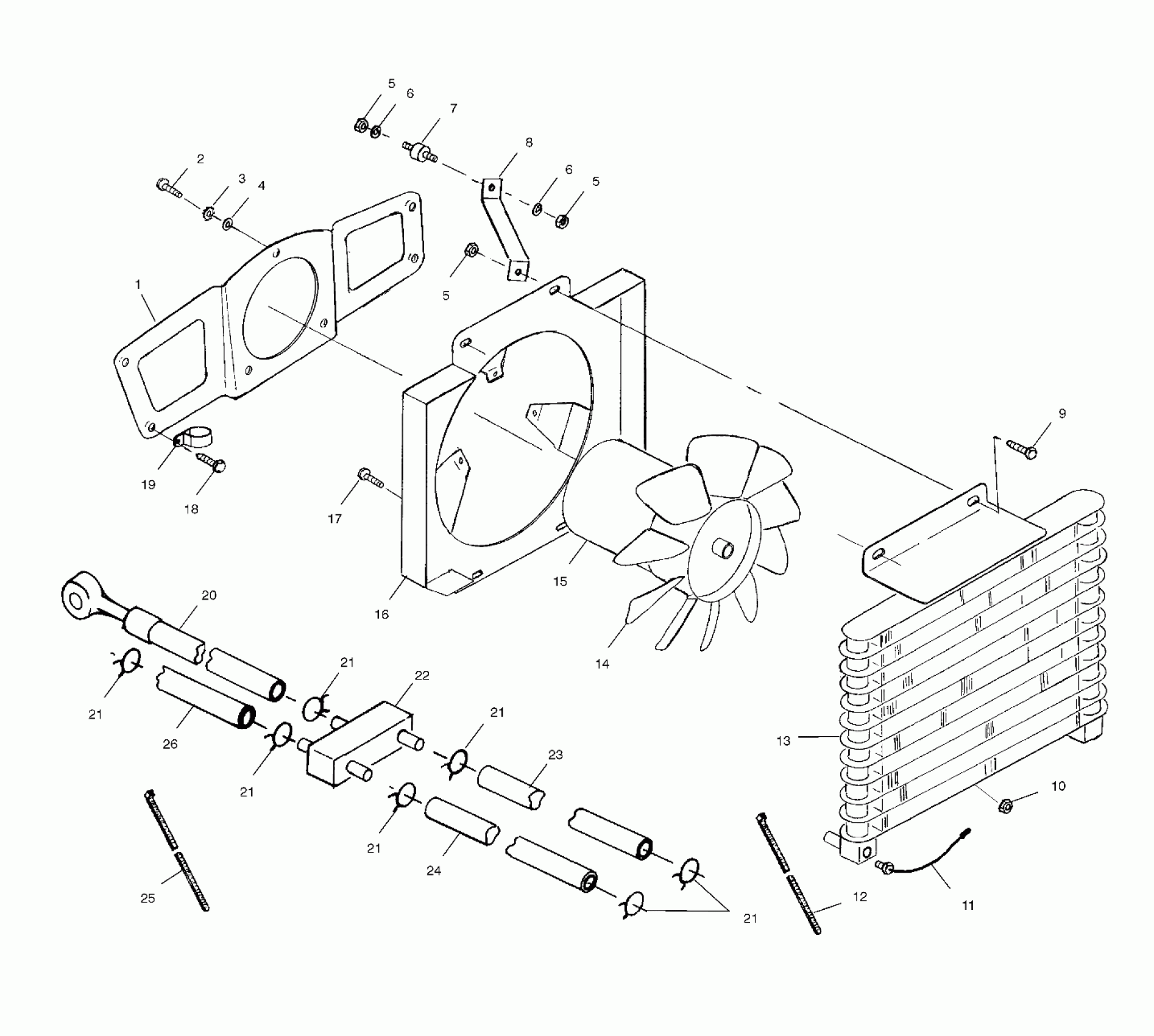

Polaris SPORTSMAN 335 - A99CH33AB OIL COOLING SYSTEM - A99CH33IA (4949884988a012) Diagram
#
Description
Price
1
BRKT.COOL.FAN,BLK
5241355-067
Unavailable
2
SCREW(10)
7511875
$4.79
3
WASHER,TOOTH-LOCK(10)
7555780
Unavailable
4
WASHER, FLAT(10)
7558201
$5.79
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER(10)
7558301
$1.49
6
WASHER(10)
7558301
$1.49
7
Mount, Rubber
3110032
$7.99
8
BRKT,COOLING FAN,BLK
5242924-067
Unavailable
9
BOLT(10)
7512240
$3.99
10
Nut
7547004
$4.79
11
SENSOR,THERMISTER
4010162
Unavailable
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
13
COOLER,OIL Substituted by 1240074
1240039
$331.16
14
BLADE,FAN,7"
5433034
Unavailable
15
MOTOR,FAN,D-SHAFT,AIR-COOL.
4170024
Unavailable
16
SHROUD,FAN
5433001
Unavailable
17
SCREW -8-32X1/2
7517549
Unavailable
18
BOLT(10)
7512232
$1.49
19
CLAMP,RUBBER-COATED,.562(10)
7080573
$7.19
20
Tube, Banjo Return (See Oil Tank Pg. C1, Ref. 9)
-------
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
21
CLAMP, WIRE
7080771
Unavailable
22
VALVE,THERMO
1240040
Unavailable
23
HOSE,COOLER OUTLET
5411514
Unavailable
24
HOSE,OIL COOLER INLET
5411511
Unavailable
25
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
26
HOSE,THERMAL VALVE INLET
5411515
Unavailable
