- SPORTSMAN 335 - A99CH33AB
HANDLEBAR and HEADLIGHT POD - A99CH33IA (4949884988b013)

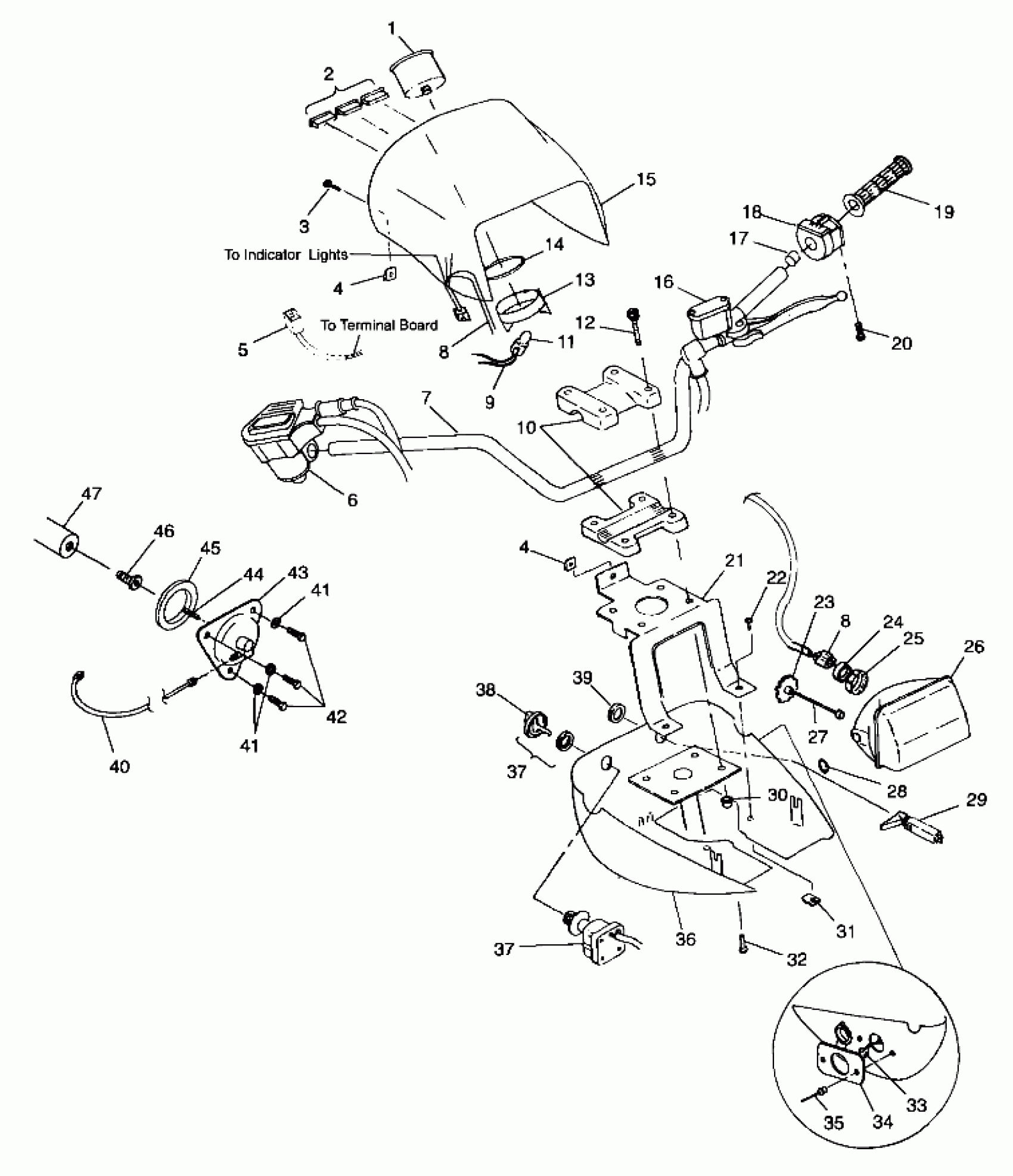

Polaris SPORTSMAN 335 - A99CH33AB HANDLEBAR and HEADLIGHT POD - A99CH33IA (4949884988b013) Diagram
#
-
KEYBLANK,ATV IGN,31 SER.
4110141
Unavailable
-
KEYBLANK,ATV IGN,32 SER. (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.
4110148
$16.99
1
SPEEDO,KILOMETER,3",ATV (Incl. 13,14)(A99CH33IA)
3280258
Unavailable
1
SPEEDOMETER,3",ATV ASM. (See Footnote) (Incl. 13,14)(A99CH33AA)(A99CH33AB)
3280326
$239.19
2
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
2
INDIC"HOT TEMPERATURE"
4040053
$31.99
2
INDIC"NEUT./REV."
4040054
$31.99
3
SCR-#8X.625,SELF TAP-PH/PN-ZTB
7511881
$1.49
4
NUT
7670086
$3.99
4
NUT
7670086
$3.99
5
HARNESS,WIRE,INDIC,LOW.
2460574
$62.39
6
Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5)
-------
Unavailable
7
TUBE,H'BAR,BLK. Substituted by 5242987-067
5224607-067
$114.99
8
HARNESS,WIRE,INDIC,UP.
2460573
Unavailable
8
HARNESS,WIRE,INDIC,UP.
2460573
Unavailable
9
HARNESS, SPEEDO
2460387
Unavailable
10
KIT,H'BAR BLOCK (Incl. Blocks & 10,12,30)
2200774
Unavailable
10
BLOCK,H'BAR RETAINER,BLK
5630616-067
Unavailable
11
BULB TAILLIGHT(10)
4030015
$4.03
12
SCREW(10)
7515189
Unavailable
13
CLAMP,BACK,SPEEDO.
3280175
Unavailable
14
GASKET,SHOCK MT.
3280174
$9.11
15
POD,H/L,UP,OLV.GRN. (A99CH33AA)
5431812-191
Unavailable
15
POD,H/L,UP.,RED (A99CH33AB)(A99CH33IA)
5431812-136
Unavailable
16
Asm., Master Cylinder (See Footnote) (See Controls - Master Cyl./Brake Line Pg. B11)
-------
Unavailable
17
SPACER-PLASTIC (.88)
5433198
Unavailable
18
SWITCH,HI/LOW/OFF,LH,H'BAR
4110193
$184.99
19
GRIP, HANDLEBAR
5431030
$24.27
20
SCREW
2010055
Unavailable
21
BRKT,POD MTG,BLK.
5240586-067
Unavailable
22
SCR-#8X1/2,TR/PH,TYPE B-Y
7517317
$3.19
23
KNOB,ADJUSTING
4032079
$23.99
24
BOOT, HEADLIGHT
5411120
$27.99
25
COLLAR,LOCK
4032077
$27.99
26
BULB,QUARTZ.H/L,INDY
2870448
$24.99
26
LENS&REFLECTOR ASM.
4032075
Unavailable
27
DESC NOT_AVAILABLE
4032098
Unavailable
28
O RING
5410163
$1.60
29
KIT-CHOKE CONTROL
2200188
$24.27
29
CABLE,CHOKE,W/ADJUSTER
7080726
$99.99
30
NUT-LOCK(10)
7542122
$1.49
31
NUT,U-TYPE(10)
7670089
$5.59
32
SCREW(10)
7522021
$3.99
33
HARNESS,12V OUTLET
2460471
Unavailable
34
POWERPLUG ASM,12V
2410025
Unavailable
35
RIVET(50)
7621334
$1.49
36
POD,H/L.LOW.BLK Substituted by 5433366-070
5432314-070
$93.08
37
SWITCH, IGNITION (Incl. Key)
4110194
Unavailable
37
SWITCH, IGNITION (Incl. Key)
4110194
Unavailable
38
COVER, KEY Substituted by 5433534
5431964
Unavailable
39
Nut
7080229
$19.99
40
CABLE,SPEEDO,(ATV)
3280236
Unavailable
41
WASHER(10)
7555725
Unavailable
41
WASHER(10)
7555725
Unavailable
42
BOLT(10)
7515378
$1.98
43
Adaptor, Drive (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 5)
-------
Unavailable
44
Key, Speedometer (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 6)
-------
Unavailable
45
Seal (See Footnote) (See Gearcase - Cases and Snorkel Pg. D3, Ref. 7)
-------
Unavailable
46
Bushing, Speedometer Drive (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 34)
-------
Unavailable
47
Shaft, Output, Front Housing (See Footnote) (See Front Housing Pg. C13, Ref. 24)
-------
Unavailable
