- SPORTSMAN 335 - A99CH33AB
GEARCASE (Internal Components) - A99CH33IA (4949884988d001)

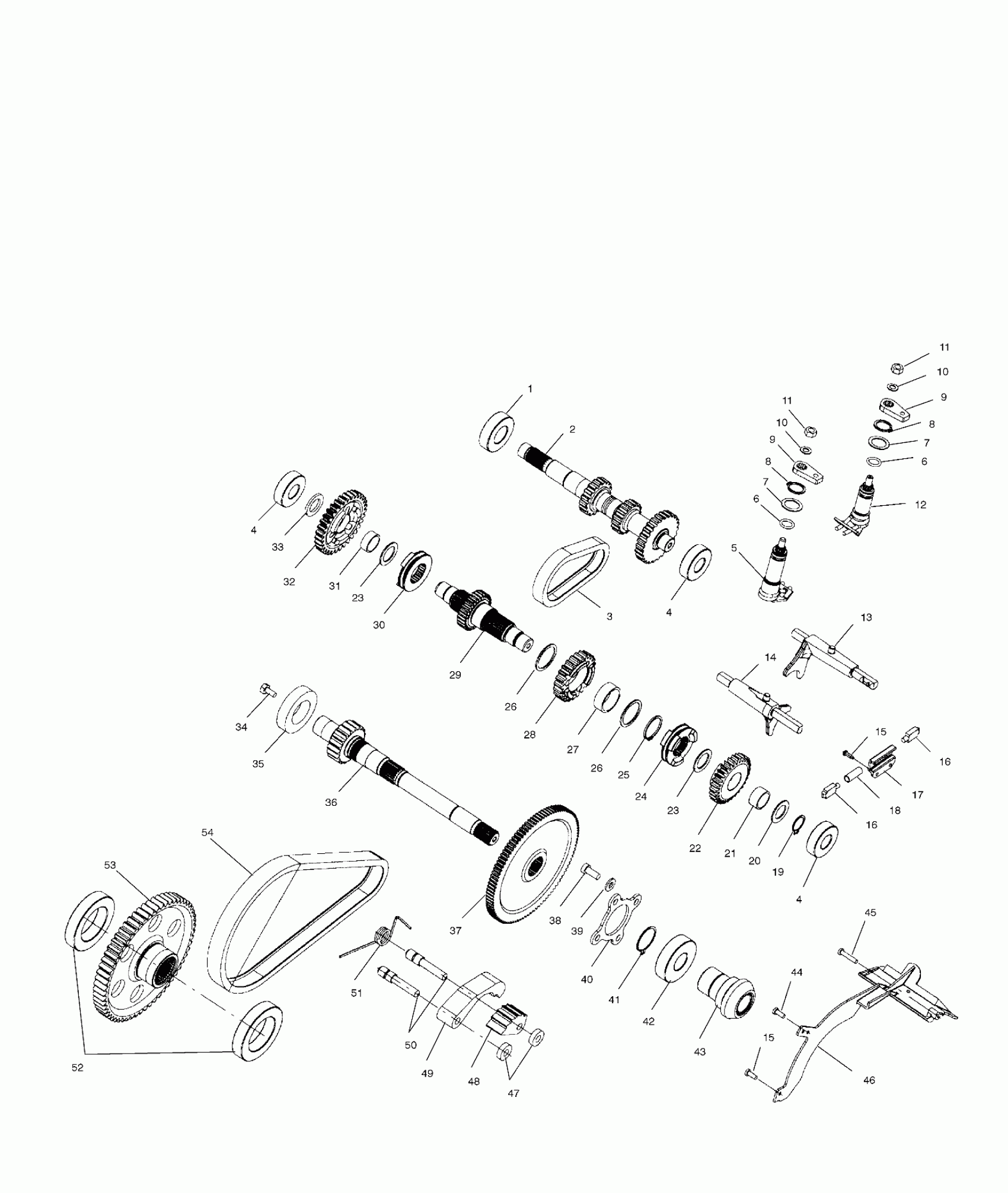

Polaris SPORTSMAN 335 - A99CH33AB GEARCASE (Internal Components) - A99CH33IA (4949884988d001) Diagram
#
-
GEARCASE (See Footnote) (Incl. 1-54 on Pg. D2 and 1,2,7-35 on Pg. D3)
1341255
Unavailable
1
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
2
SHAFT,INPUT
3233483
Unavailable
3
CHAIN,SILENT,34P
3233036
Unavailable
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
4
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
5
SHAFT,SHIFT,H/R
3233342
Unavailable
6
O-RING Substituted by 3233548
3233044
Unavailable
6
O-RING Substituted by 3233548
3233044
Unavailable
7
Washer
3233040
$9.59
7
Washer
3233040
$9.59
8
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
8
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
9
Bellcrank
3233153
$27.99
9
Bellcrank
3233153
$27.99
10
Washer
3233054
$6.46
10
Washer
3233054
$6.46
11
Nut
3233055
Unavailable
11
Nut
3233055
Unavailable
12
SHAFT,SHIFT,LOW
3233258
$65.46
13
FORK ASM,SHIFT,LOW
3233259
$159.99
14
FORK ASM,SHIFT,H/R
3233260
Unavailable
15
SCREW Substituted by 3233747
3233033
Unavailable
15
SCREW Substituted by 3233747
3233033
Unavailable
16
PIN,INTERLOCK
3233308
Unavailable
16
PIN,INTERLOCK
3233308
Unavailable
17
BRACKET,INTERLOCK
3233309
$20.63
18
Spring
3233032
$12.94
19
RING,RETAINING
3233177
$6.39
20
Washer
3233176
$9.59
21
BEARING,NEEDLE
3233017
$35.99
22
GEAR,31T,HCR.
3233484
$114.39
23
Washer
3233010
Unavailable
23
Washer
3233010
Unavailable
24
DOG,ENGAGEMENT,HI/REV.
3233128
Unavailable
25
RING,RETAINING
3233029
$5.59
26
WASHER
3233012
Unavailable
26
WASHER
3233012
Unavailable
27
BEARING, NEEDLE
3233014
$43.99
28
SPROCKET, 24T
3233127
Unavailable
29
SHAFT,REV,29T,HCR
3233362
Unavailable
30
DOG,ENGAGEMENT,LOW
3233126
Unavailable
31
BEARING,NEEDLE
3233009
$39.99
32
GEAR, 33T
3233125
Unavailable
33
WASHER
3233007
Unavailable
34
BUSHING,SPEEDO.DRIVE
5020741
$9.03
35
BEARING
3233020
$47.99
36
SHAFT,CTR,DRIVE
3233485
Unavailable
37
GEAR,O/P,100T,HCR
3233360
Unavailable
38
Screw
3233262
$1.83
39
LOCK WASHER(10)
7552901
$1.49
40
COVER,CTR.DRIVE BRG.
3233263
Unavailable
41
RING,RETAINING
3233364
$6.39
42
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
43
PINION,16T,SPIRAL BEVEL
3233486
Unavailable
44
Screw
3233282
Unavailable
45
SCREW
3233283
$1.99
46
DEFLECTOR,OIL
3233284
Unavailable
47
WASHER
3233435
Unavailable
48
CAM,CHAIN TENSIONER
3233434
$12.79
49
SHOE,CHAIN TENSIONER
3233433
$27.99
50
PIN,DOWEL
3233432
$7.19
51
SPRING,TORSION
3233431
$23.99
52
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
53
SPROCKET,60T Substituted by 3233670
3233429
$187.14
54
CHAIN,SILENT
3233430
Unavailable
