- SPORTSMAN 335 - A99CH33AB
GEARCASE (Cases and Snorkel) - A99CH33IA (4949884988d003)

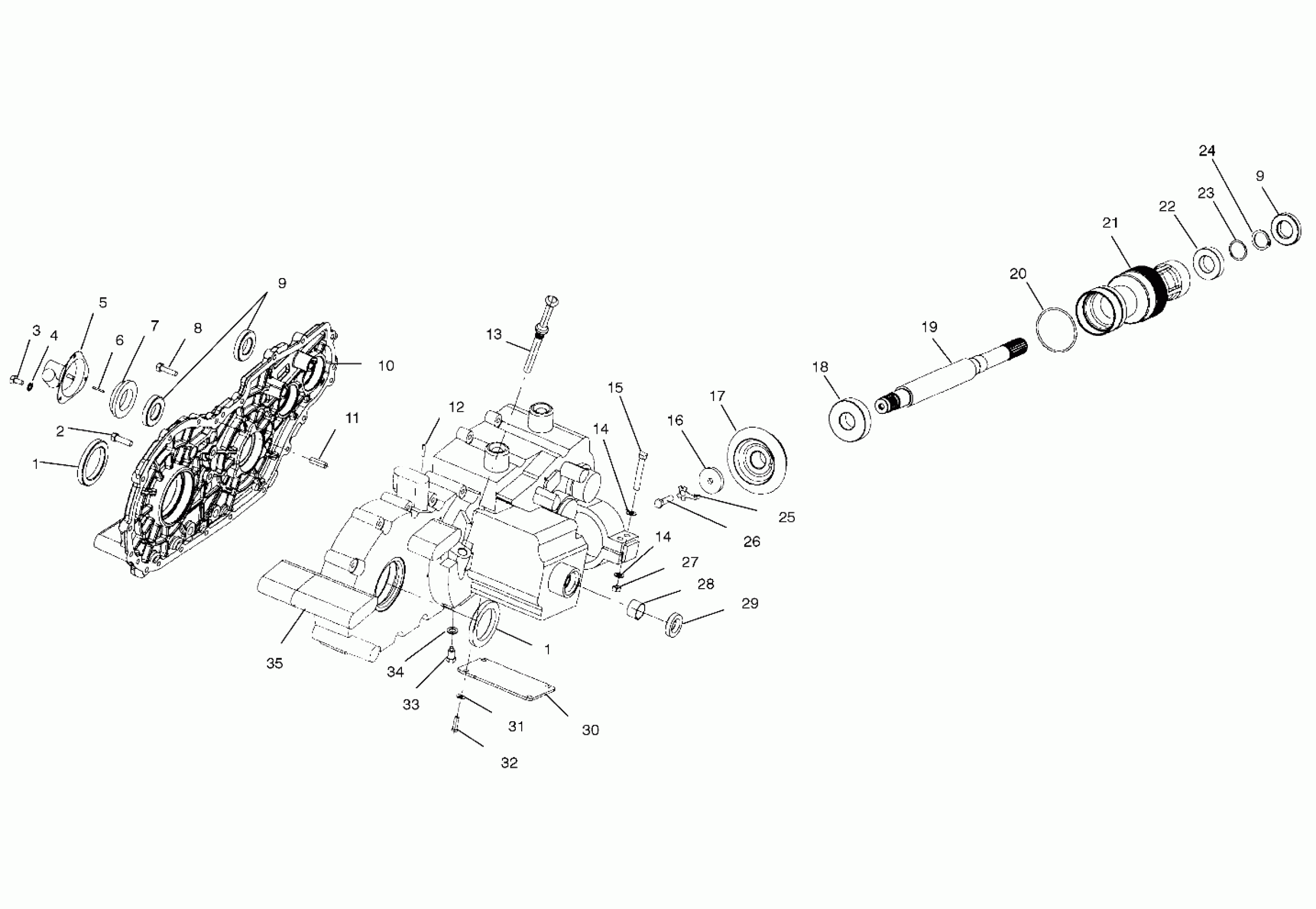

Polaris SPORTSMAN 335 - A99CH33AB GEARCASE (Cases and Snorkel) - A99CH33IA (4949884988d003) Diagram
#
-
Asm., Gearcase (See Footnote) (See Gearcase - Internal Components Pg. D2)
-------
Unavailable
1
Seal
3233256
Unavailable
1
Seal
3233256
Unavailable
2
Screw
3233252
$5.27
3
BOLT(10)
7515378
$1.98
4
WASHER(10)
7555725
Unavailable
5
ADAPTER,DRIVE(1:1.2)
3280219
Unavailable
6
KEY,SPEEDO.DRIVE
3280217
Unavailable
7
SEAL,ANGLE DRIVE
3280164
Unavailable
8
Screw
3233026
$6.46
9
Seal
3233248
$30.88
9
Seal
3233248
$30.88
10
GEARCASE,LH
3233473
Unavailable
11
PIN, DOWEL
3233247
$7.19
12
Vent
3233037
Unavailable
13
Dipstick
3233475
Unavailable
14
Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)
-------
Unavailable
14
Washer (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 10)
-------
Unavailable
15
BOLT
3233442
$2.23
16
Washer
3233352
$1.83
17
GEAR,29T,SPIRAL BEVEL
3233488
Unavailable
18
Ball Bearing (See Footnote) (See Gearcase - Internal Components Pg. D2, Ref. 35)
-------
Unavailable
19
SHAFT,SNORKEL
3233446
Unavailable
20
O-Ring
3233302
Unavailable
21
SNORKEL
3233303
Unavailable
22
BEARING,BALL
3233305
$31.99
23
SPACER (1.180x.995x.008) (See Footnote) NOTE: Ref. 23 indicates choices, may also be used in combinations.
3233357
$21.99
23
SPACER (1.180x.995x.040)
3233355
$2.63
23
SPACER (1.180x.995x.010)
3233353
$2.55
23
SPACER (1.180x.995x.025)
3233354
$2.55
23
SPACER (1.180x.995x.005)
3233356
$2.62
24
RING,RETAINING
3233306
$4.79
25
BOLT,LOCK SNORKEL GEAR
3233444
$2.39
26
Bolt
3233351
$1.99
27
NUT,FLEXLOCK
3233291
$3.03
28
Bushing
3233292
$31.99
29
Seal
3233293
Unavailable
30
PLATE,COVER
3233294
$11.59
31
WASHER,LOCK
3233295
$1.99
32
Screw
3233296
Unavailable
33
PLUG, DRAIN Substituted by 3233777
3233253
$34.99
34
PLUG, WASHER
3233254
$7.99
35
GEARCASE,RH
3233487
Unavailable
