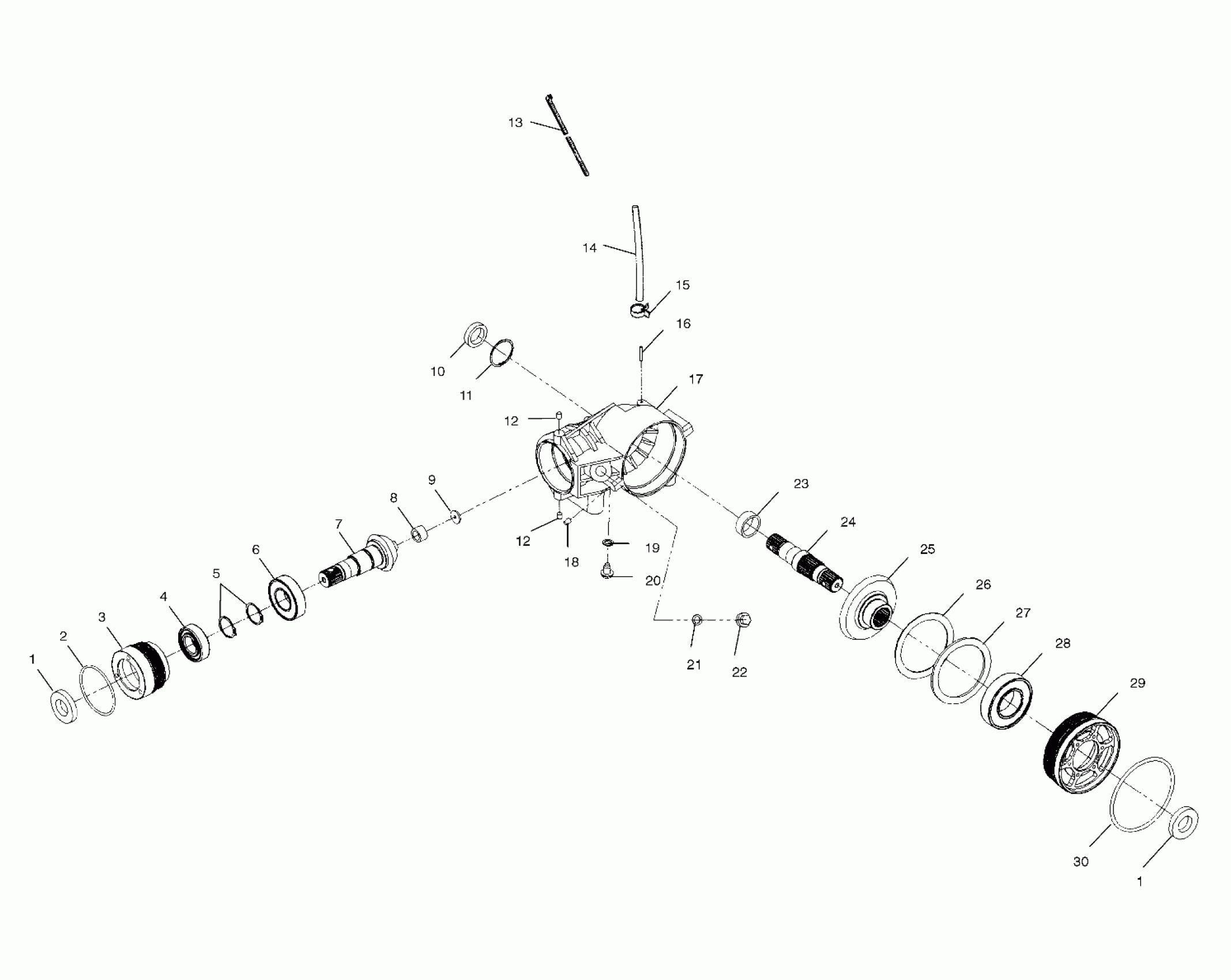

Polaris SPORTSMAN 335 - A99CH33AB FRONT HOUSING - A99CH33IA (4949884988c013) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341323 (See Footnote) (Incl. 1-12,16-30)(For Machines Built Before 9-14-98)

1341257

$1,299.99

1

Seal

3233248

$32.37

1

Seal

3233248

$32.37

2

O-RING

3233315

Unavailable

3

COVER,F.HSG INPUT

3233316

Unavailable

4

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

5

RING,RETAINING

3233306

$4.76

6

BEARING

3233020

$47.62

7

SHAFT,INPUT,FRONT HSG.

3233489

Unavailable

8

BEARING,NEEDLE

3233479

Unavailable

9

WASHER

3233480

Unavailable

10

Seal

3233319

$28.32

11

RING,RETAINING

3233320

Unavailable

12

SCREW

3233321

$1.90

12

SCREW

3233321

$1.90

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

16

Vent

3233037

Unavailable

17

HSG,GEARCASE FRT.

3233481

Unavailable

18

RIVET

3233463

Unavailable

19

PLUG, WASHER

3233254

$8.08

20

PLUG, DRAIN Substituted by 3233777

3233253

Unavailable

21

Washer

3233324

$8.54

22

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

23

BEARING,NEEDLE

3233326

Unavailable

24

SHAFT,O/P,FR.HSG.

3233327

Unavailable

25

GEAR,31T,FRT.HSG.

3233328

$160.82

26

WASHER,THRUST

3233346

Unavailable

27

WASHER,THRUST

3233347

Unavailable

28

BEARING,BALL

3233329

Unavailable

29

COVER,FR.HSG,OUTPUT

3233330

Unavailable

30

O-RING

3233331

Unavailable
