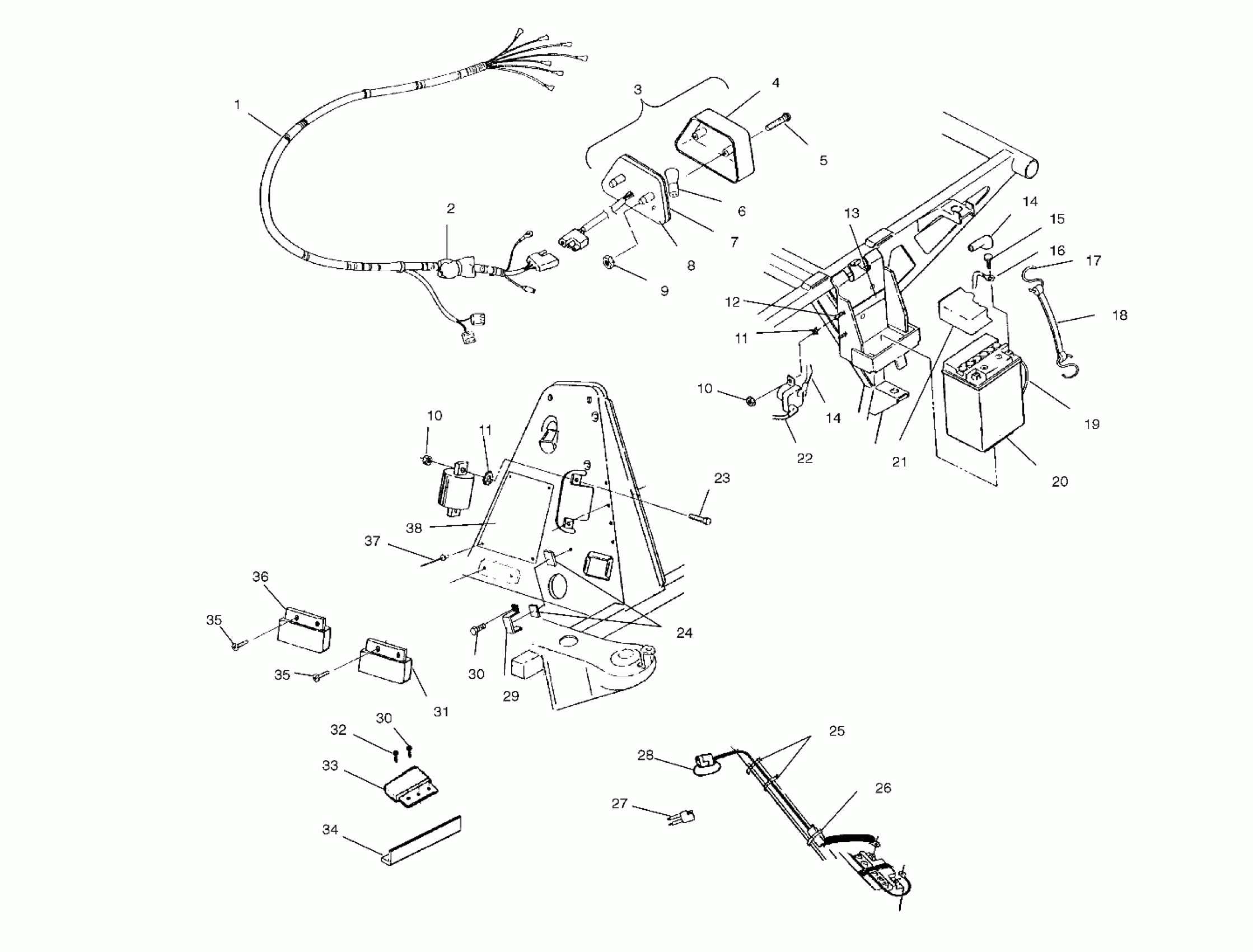

Polaris SPORTSMAN 335 - A99CH33AB ELECTRICAL/TAILLIGHT - A99CH33IA (4949884988c008) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE

2460544

Unavailable

2

KIT,CKT.BRKR,20 AMP

2200593

$63.99

3

TAIL LIGHT ASM. (Incl. 4-9)

2432034

$55.99

4

LENS,TAILLIGHT

4032046

$32.37

5

Screw, Taillight

4032029

$4.79

6

BULB,TAILLIGHT

4030043

$6.46

7

GASKET,TAILLIGHT

4032045

$4.03

8

BACKING,TAILLIGHT

4032064

$83.99

9

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

10

NUT(10)

7541925

$1.49

10

NUT(10)

7541925

$1.49

11

WASHER(10)

7571602

$4.79

11

WASHER(10)

7571602

$4.79

12

SCREW(10)

7512027

$1.49

13

PAD-BATTERY

5810290

$7.27

14

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

14

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

15

BOLT,BATT,KIT(SHORT)

2200361

$3.99

16

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

17

HOOK-BATT.H/D(10)

7010032

$1.59

18

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

19

TUBE,BATTERY VENT

5432077

Unavailable

20

Battery

4140006

$99.99

21

COVER,BATTERY

5431769

$14.39

22

CABLE,SOL/STARTER

4010093

$47.99

23

SCREW(10)

7512007

$3.99

24

PAD,RACK MOUNT

5810455

$3.19

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

27

PIGTAIL, POWER

2460442

$12.39

28

POWER ASM,12V

2410022

Unavailable

29

BRACKET-CDI

5241416

$5.75

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

30

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

31

RELAY,SOLID STATE,LR-60

4010164

Unavailable

32

SCREW(10)

7512017

$4.79

33

RECTIFIER/REGULATOR,LR-35

4060191

Unavailable

34

HEATSINK,RECT.

5131818

Unavailable

35

SCREW,(10)

7512024

$4.79

35

SCREW,(10)

7512024

$4.79

36

LIMITER,RPM,LR-83,HUB GROUND

4060205

Unavailable

37

RIVET,(50)

7621336

$1.59

38

BOARD, TERMINAL Substituted by 4040063

4040064

Unavailable
