- SPORTSMAN 335 - A99CH33AB
CYLINDER - A99CH33IA (4949884988d006)

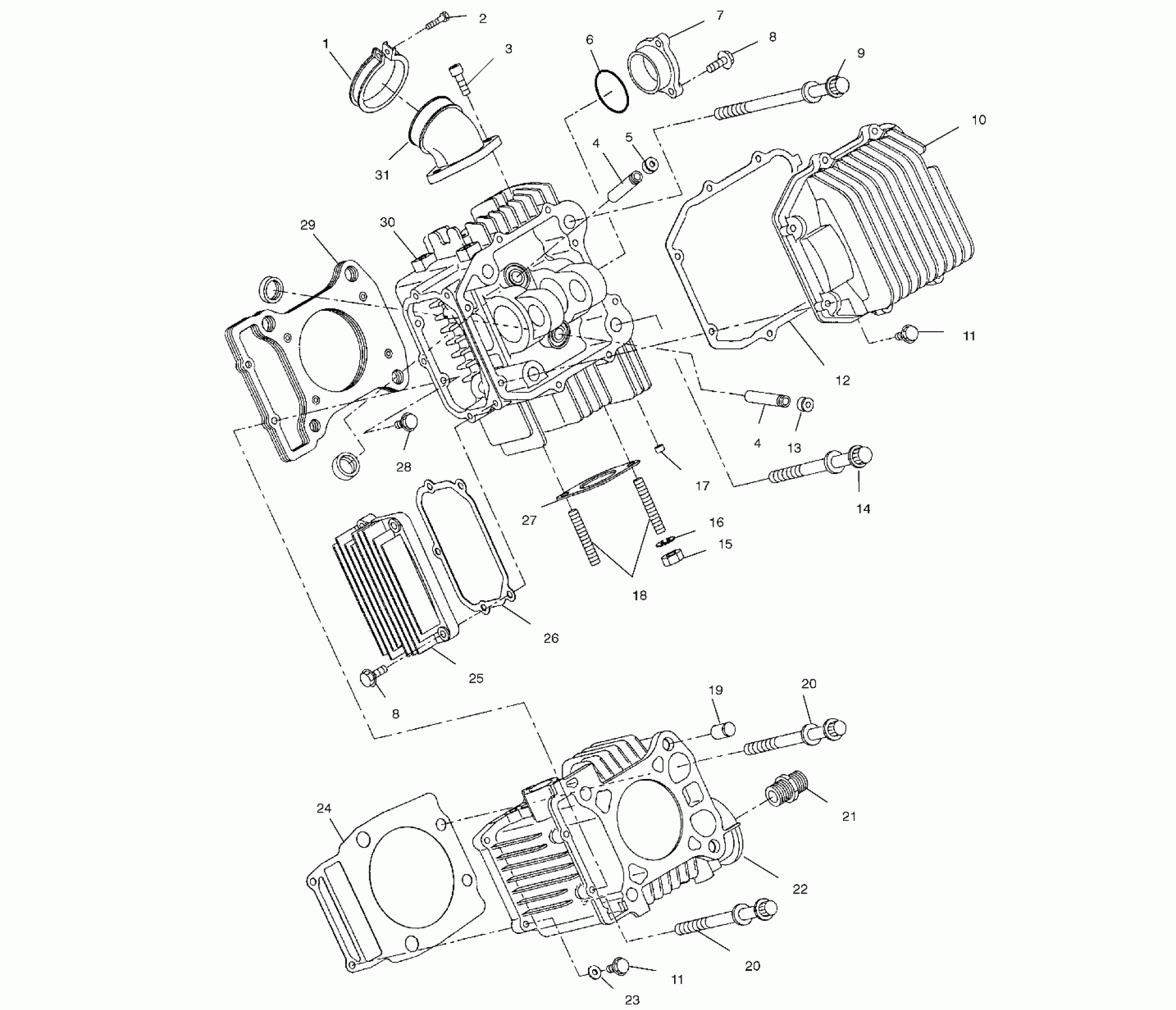

Polaris SPORTSMAN 335 - A99CH33AB CYLINDER - A99CH33IA (4949884988d006) Diagram
#
Description
Price
1
BAND ASM. (Incl. 2)
3083166
$19.84
2
SCREW,(10)
3081497
$2.39
3
Bolt, Allen
3081330
$3.99
4
GUIDE,VALVE
3084994
$39.99
4
GUIDE,VALVE
3084994
$39.99
5
SEAL,INTAKE VALVE
3084858
$13.59
6
O-RING
3084867
$23.99
7
ADAPTER,CAMSHAFT
3084866
Unavailable
8
BOLT,FLANGE(10)
3084877
Unavailable
8
BOLT,FLANGE(10)
3084877
Unavailable
9
BOLT
3084875
Unavailable
10
COVER,ROCKER
3085767
Unavailable
11
BOLT, FLANGE
3084874
Unavailable
11
BOLT, FLANGE
3084874
Unavailable
12
GASKET-ROCKER COVER
3085831
Unavailable
13
SEAL,EXHAUST VALVE
3084859
$23.99
14
BOLT (HEAD)
3085832
$7.99
15
NUT(10)
3080285
Unavailable
16
WASHER LOCK ,(10)
3080530
$3.19
17
PLUG, BLIND
3084862
Unavailable
18
STUD,(10)
3085326
Unavailable
19
PIN,STRAIGHT
3084838
Unavailable
20
BOLT, FLANGE
3084873
Unavailable
20
BOLT, FLANGE
3084873
Unavailable
21
UNION,OIL PUMP
3084849
Unavailable
22
CYLINDER Substituted by 3086847
3085851
Unavailable
23
Washer
3082206
$1.49
24
GASKET-CYLINDER
3085827
Unavailable
25
COVER-CAMSHAFT
3085830
Unavailable
26
GASKET Substituted by 3086200
3084869
Unavailable
27
GASKET,EXH.
3085075
$39.99
28
BOLT, FLANGE Substituted by 3086781
3084215
Unavailable
29
GASKET-HEAD
3085829
Unavailable
30
HEAD-CYLINDER Substituted by 3086849 (Incl. 4,5,13,17,18)
3085828
Unavailable
31
ADAPTER
3084879
Unavailable
