Description

Price

1

BUSHING, STARTER

3083669

Unavailable

2

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,8,10,11,16,21,23)

3085849

$774.99

2

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,8,10,11,16,21,23)

3085849

$774.99

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING, BALL

3080676

$39.99

5

Pin, Dowel

3084840

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

SCREW & WASHER(10)

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

Pipe

3085850

$51.99

9

Union

3084842

Unavailable

10

BEARING,BALL

3084834

$23.99

11

BEARING,BALL

3084835

Unavailable

12

PLUG

3084845

Unavailable

13

GASKET,(ALUM.)(10)

3084846

$5.59

14

SPRING

3084844

$3.99

15

VALVE Substituted by 3086810

3084843

Unavailable

16

BOLT,FLANGE

3084841

Unavailable

17

GASKET

3082956

$4.84

18

PLUG Substituted by 3086749

3083453

Unavailable

19

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

20

COVER,CRANKCASE

3085761

$26.39

21

SEAL, OIL

3084836

Unavailable

22

O-RING

3084847

$6.39

23

PIN, DOWEL Substituted by 3086838

3080103

$7.14

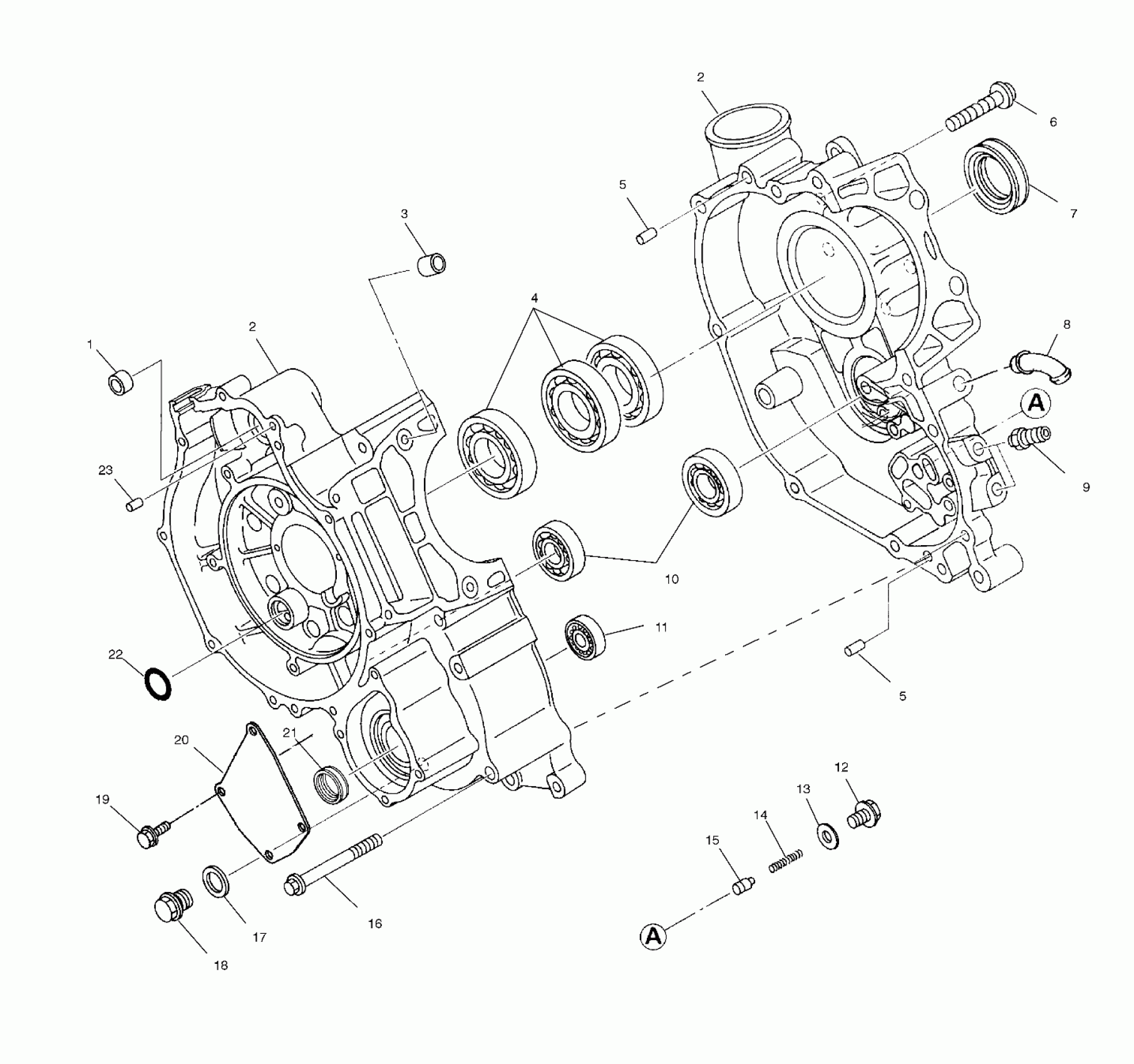

Polaris SPORTSMAN 335 - A99CH33AB CRANKCASE - A99CH33IA (4949884988d005) Diagram

BUSHING, STARTER

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,8,10,11,16,21,23)

CRANKCASE ASM. (See Footnote) (Incl. 1,4,5,7,8,10,11,16,21,23)

PIN,STRAIGHT

BEARING, BALL

Pin, Dowel

Pin, Dowel

SCREW & WASHER(10)

SEAL, OIL

Pipe

Union

BEARING,BALL

BEARING,BALL

PLUG

GASKET,(ALUM.)(10)

SPRING

VALVE Substituted by 3086810

BOLT,FLANGE

GASKET

PLUG Substituted by 3086749

BOLT, FLANGE(10) Substituted by 3087035

COVER,CRANKCASE

SEAL, OIL

O-RING

PIN, DOWEL Substituted by 3086838
