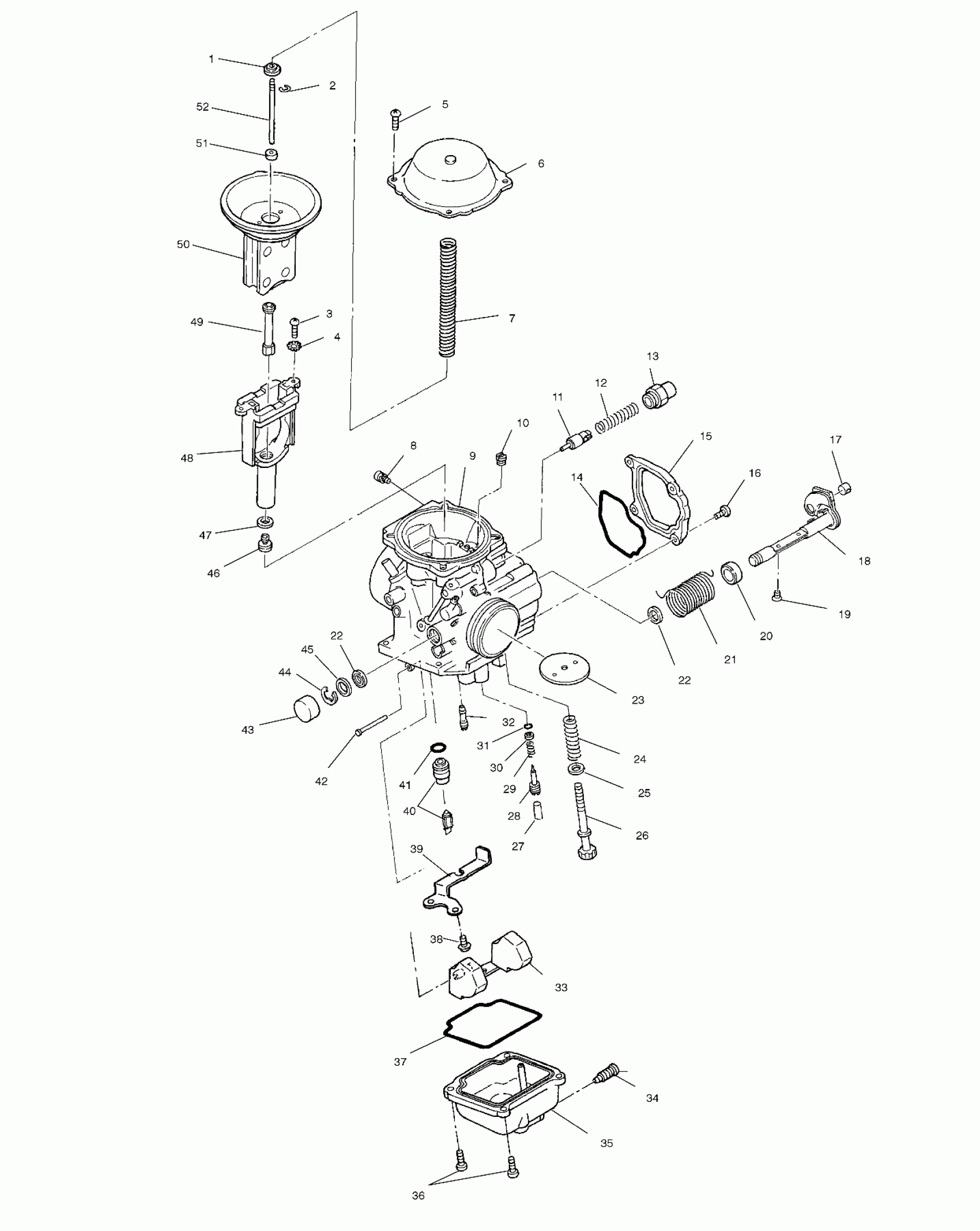

Polaris SPORTSMAN 335 - A99CH33AB CARBURETOR - A99CH33IA (4949884988d009) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING,(10)

3130508

$6.46

3

SCREW

3130541

$11.11

4

WASHER,SPRING

3130540

$4.76

5

SCREW-MIKUNI C2=0408

3130592

$1.59

6

Cover

3130503

$68.79

7

SPRING

3130505

$28.32

8

SCREW & WASHER(10)

3084205

$3.97

9

CARBURETOR (Incl. 1-13,18-52)

3130904

Unavailable

10

JET,AIR,#160 (#160)

3130625

$14.56

11

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

12

SPRING

3130538

$5.65

13

HOLDER,GUIDE

3130199

$28.32

14

O-Ring

3130512

Unavailable

15

COVER

3130511

$54.99

16

SCREW

3130535

$7.14

17

GUIDE,CABLE

3130543

$32.37

18

SHAFT ASM,THROTTLE

3130513

$79.37

19

SCREW

3130501

$3.97

20

Ring

3130514

$7.27

21

SPRING

3130589

$28.32

22

SEAL

3130515

$12.13

22

SEAL

3130515

$12.13

23

VALVE,THROTTLE (100)

3130502

$62.92

24

Spring

3130544

$10.51

25

Ring

3130545

$12.13

26

SCREW, ADJ.

3130546

$13.75

27

PLUG

3130905

$5.11

28

Adjuster

3130524

$23.81

29

Spring

3130525

$5.65

30

Washer

3130523

$2.38

31

O-Ring

3130522

$5.65

32

JET,PILOT,#40 (#40)

3130624

$28.32

33

FLOAT ASM.

3130529

$99.74

34

SCREW

3130521

$10.32

35

FLOATBODY ASM.

3130590

$119.98

36

SCREW

3130520

$1.59

37

O-RING

3130532

$32.37

38

SCREW

3130591

$3.97

39

PLATE

3130594

$32.37

40

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

$61.74

41

O-RING

3130533

$5.65

42

PIN, FLOAT

3130361

$9.70

43

CAP

3130519

$10.51

44

E-RING

3130518

$1.60

45

PACKING

----

Unavailable

46

MAIN JET,#150 (#150)

3130569

Unavailable

47

WASHER (10)

3130014

$1.59

48

JETBLOCK ASM.

3130504

$64.75

49

NEEDLE JET,(P-9) (P-9)

3130731

Unavailable

50

DIAPHRAGM ASM.

3130732

$156.74

51

RING

3130752

$5.65

52

JET NEEDLE,(J8-5F14) (5F81-3)

3130730

Unavailable
