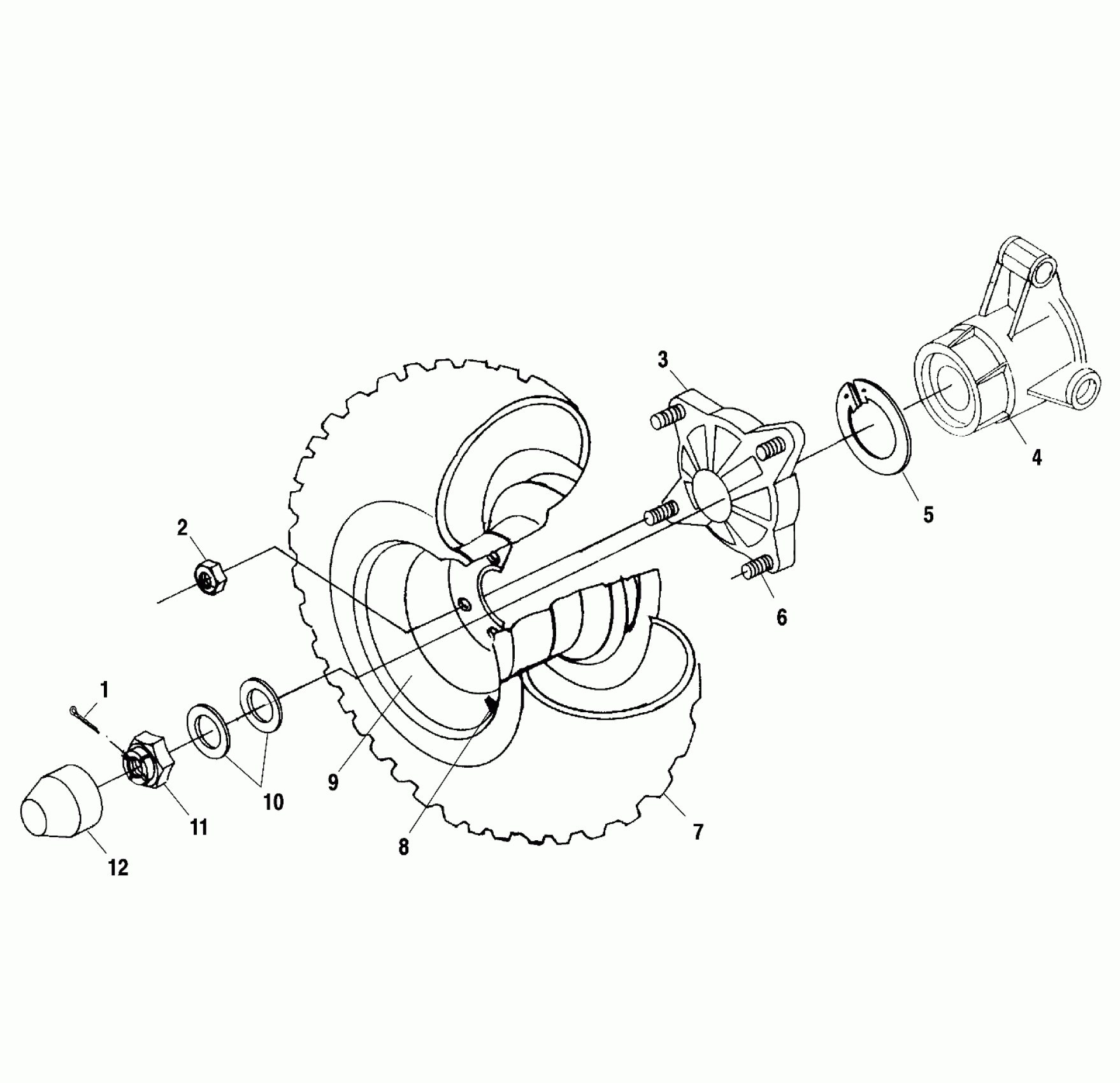

Polaris SPORTSMAN 335 - A00CH33AG REAR WHEEL DRIVE - A00CH33AC (4959905990C008) Diagram

#

Description

Price

1

PIN, COTTER(10)

7661404

$4.76

2

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

3

HUB,R.WHEEL,MACH

5131649

Unavailable

4

Carrier, Bearing, Wheel (See Rear Suspension Pg. C11, Ref. 41)

----

Unavailable

5

RING,RETAINING(10)

7710440

$10.32

6

STUD(10)

7515513

$1.19

7

TIRE,24X11.5-10,TITAN (24x11.5-10)

5411710

Unavailable

8

VALVE-RIM

1525017

$6.46

9

RIM,REAR,(8.5X10),BLK (AC)(AE)(AG)

1520217-067

Unavailable

9

RIM,REAR(8.5X10),SLVR (A00CH33AD)(A00CH33AF)

1520217-117

Unavailable

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

12

DUSTCOVER, HUB

5411164

$28.32
