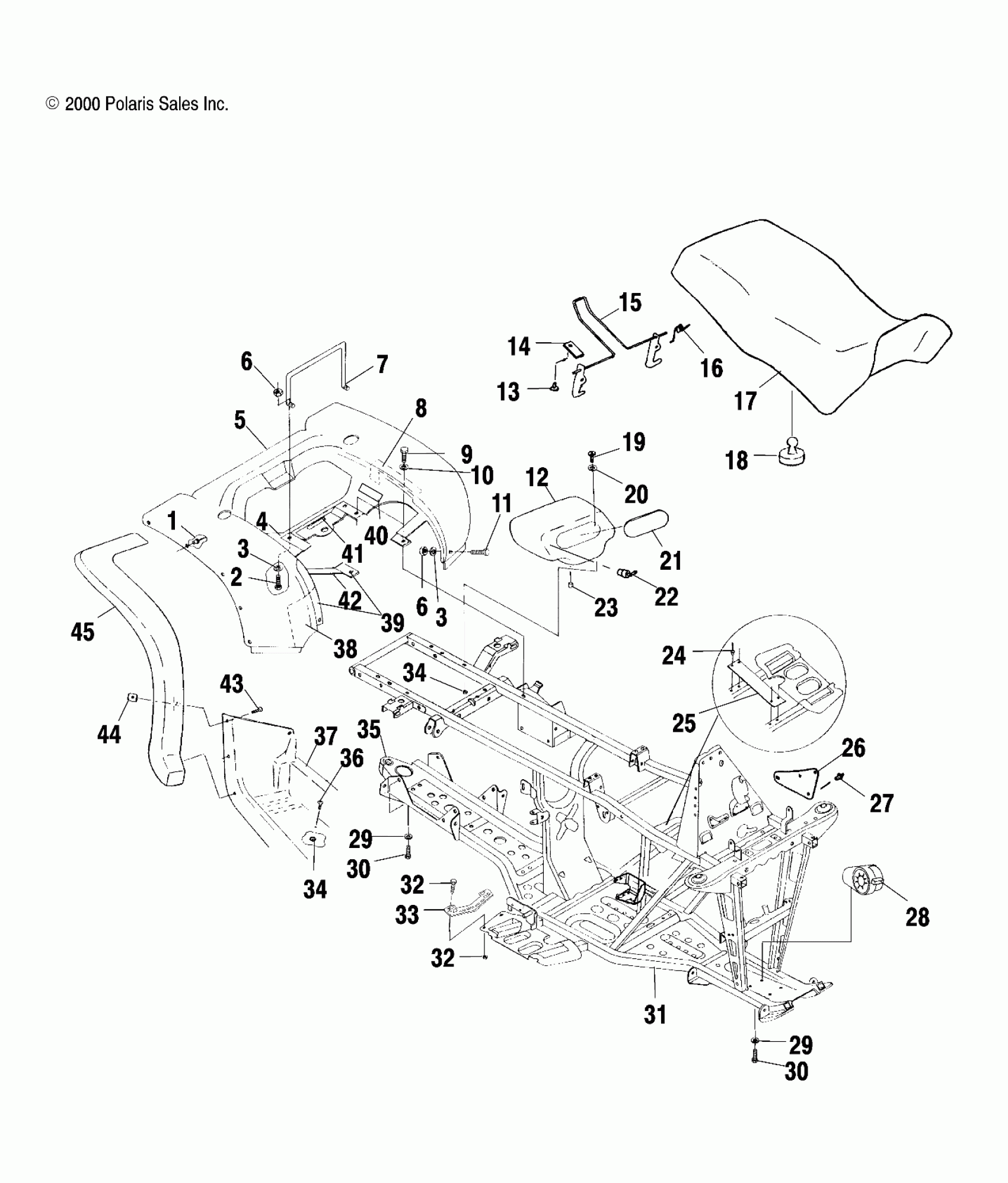

Polaris SPORTSMAN 335 - A00CH33AG REAR CAB and SEAT - A00CH33AC (4959905990A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

CAB,REAR,GEN4,MD.YELLOW (A00CH33AG)

5432117-053

Unavailable

5

CAB,REAR,GEN 4,P.RED (A00CH33AD)(A00CH33AF)

5432117-136

Unavailable

5

CAB,REAR,GEN 4,OLV.GRN. (A00CH33AC)(A00CH33AE)

5432117-191

Unavailable

6

NUT(10)

7541925

$0.79

6

NUT(10)

7541925

$0.79

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.94

9

SCREW(10)

7512242

$2.38

10

WASHER, FLAT(10)

7555859

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

BOX,TOOL

5433640

Unavailable

13

BLIND RIVET(50)

7621403

$1.19

14

BRACKET,LEVER RETAINER

5211033

$34.99

15

LATCH,SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

COVER,SEAT,BLK.

2681747-070

$149.75

17

SEAT,BLK

2682441-070

$445.22

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.84

18

Bumper, Rubber

5410414

$3.17

19

BOLT(10)

7512130

$3.97

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

21

COVER, TOOLBOX

5431787

Unavailable

22

FITTING,90 DEG,1/8,(10)

7052095

$4.76

23

CAP,DRAIN

5410896

$5.65

24

RIVET,INTERLOCK,B(50)

7661638

$1.19

25

GUARD,CLUTCH,BLK

5242953-067

Unavailable

26

DESC NOT_AVAILABLE

5243829

Unavailable

27

RIVET,PLASTI-LOC.(50)

7621509

$1.19

28

Asm., Front Gearcase (See Front Housing Pg. C12 for Details)

----

Unavailable

29

WASHER(10)

7552603

$0.79

29

WASHER(10)

7552603

$0.79

30

SCREW(10)

7512492

$1.19

30

SCREW(10)

7512492

$1.19

31

MAINFRAME,BLK Substituted by 1013359-067 (If built before 3/13/00)

1012979-067

Unavailable

31

FRAME,MAIN,BLK. (If built after 3/13/00)

1013359-067

Unavailable

32

SCREW

7517377

$4.76

32

SCREW

7517377

$4.76

33

SPACER,FOOTWELL

5432280

$8.73

34

NUT-LOCK(10)

7542122

$1.19

34

NUT-LOCK(10)

7542122

$1.19

35

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

36

SCREW Substituted by 7512279

7517376

$0.79

37

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

37

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

38

FOIL FOAM

5811111

Unavailable

39

FOIL,FR,REAR CAB

5811106

Unavailable

40

DECAL,CARB.INFO.

7073761

Unavailable

41

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

42

FOIL-FOAM,(6X1)

5811087

Unavailable

43

BOLT(10)

7512232

$1.19

44

NUT, SPEED(10)

7670057

$1.19

45

GUARD-MUD,REAR,LH,BLK

5431796-070

Unavailable

45

GUARD-MUD,REAR,RH,BLK

5431797-070

Unavailable
