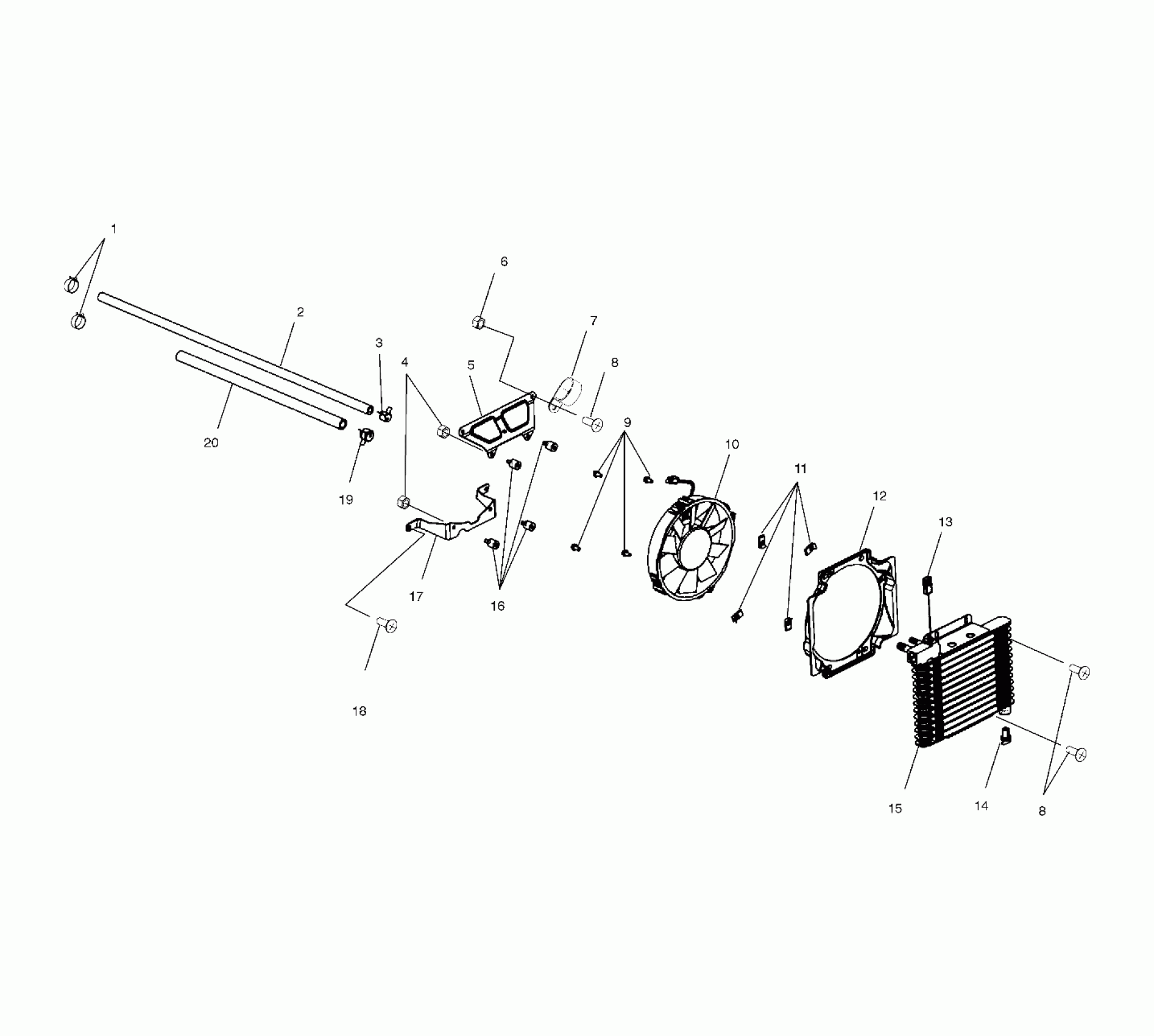

Polaris SPORTSMAN 335 - A00CH33AG OIL COOLING - A00CH33AC (4959905990A012) Diagram

#

Description
Price

1

CLAMP-HOSE,.875-SS

7080474

$8.40

2

HOSE,OIL COOLER INLET

5411769

Unavailable

3

CLAMP-HOSE MUBEA

7080862

Unavailable

4

NUT HEX(10)

7542105

$3.99

5

BRKT,OIL COOLER,TOP,BLK

5243783-067

$48.99

6

NUT-LOCK(10)

7542122

$1.49

7

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

8

BOLT(10)

7512240

$3.99

8

BOLT(10)

7512240

$3.99

9

Screw

7517659

$3.99

10

FAN,MOTOR

2410157

Unavailable

11

CLIP,U,ZY

7670111

Unavailable

12

SHROUD-FAN,ATV

5433353

$70.39

13

Thermister

4010274

$124.99

14

VALVE-PLASTIC DRAIN

7052244

Unavailable

15

COOLER-OIL TO AIR

1240064

Unavailable

16

MNT,RUBBER,CARB,DURO 55

3021186

$11.99

17

BRKT,OIL COOLER,LOWER,BLK

5244069-067

Unavailable

18

BOLT(10) Substituted by 7512247

7515184

Unavailable

19

CLAMP-HOSE MUBEA 1/2"

7080866

$7.19

20

TUBE,BANJO OUTLET

5411806

$53.17
