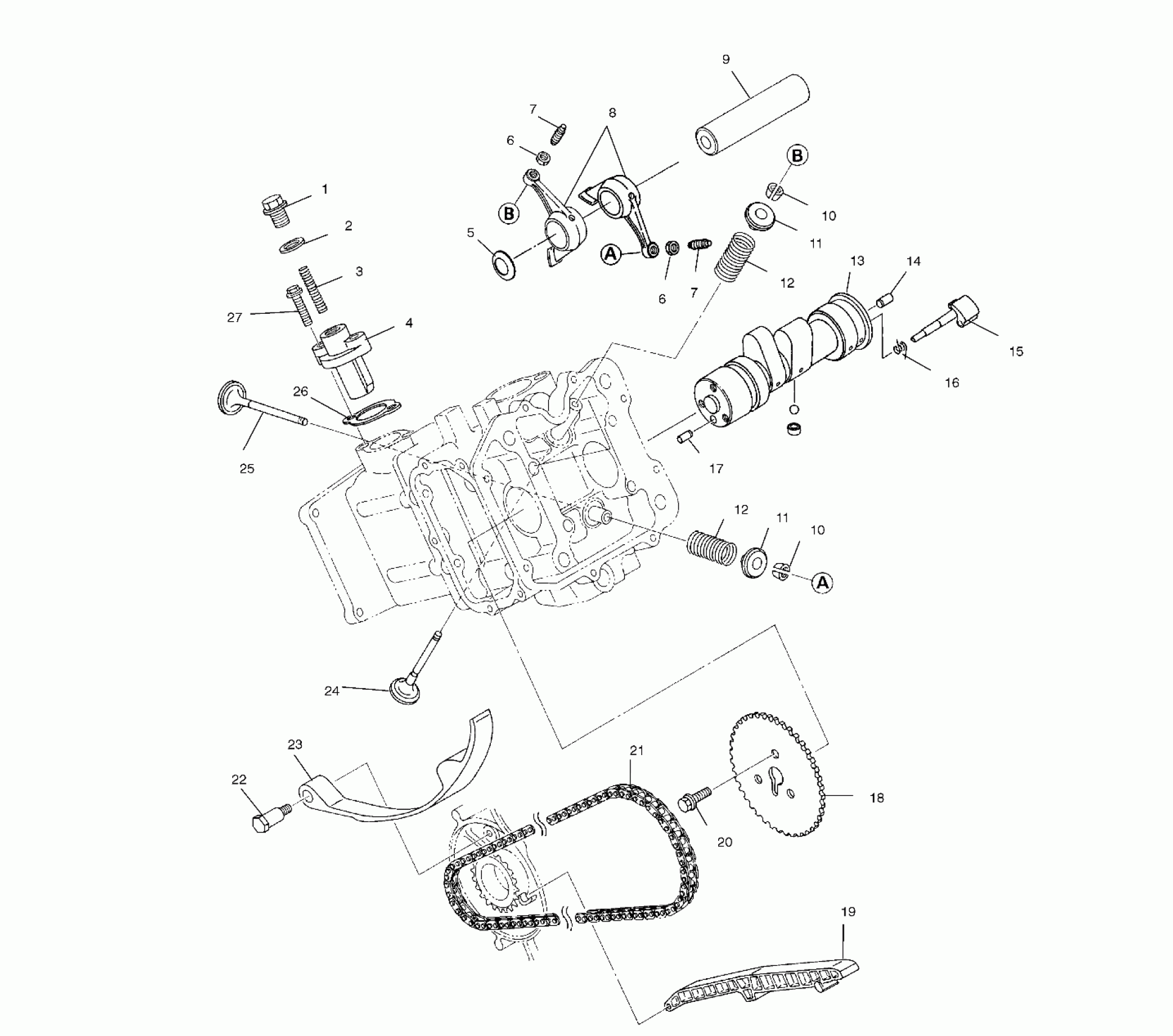

Polaris SPORTSMAN 335 - A00CH33AG INTAKE and EXHAUST - A00CH33AC (4959905990D006) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING,TENSIONER

3086839

Unavailable

4

TENSIONER,ASM (Incl. 1-3)

3086813

Unavailable

5

WASHER-WAVE

3085836

$5.59

6

NUT(10)

3084912

$3.99

6

NUT(10)

3084912

$3.99

7

SCREW, ADJ.

3084911

$9.59

7

SCREW, ADJ.

3084911

$9.59

8

ROCKERARM ASM,INTAKE * (Incl. 6,7)

3084910

$115.99

9

SHAFT,ROCKER

3085780

$35.19

10

COLLET,VALVE

3084908

$3.99

10

COLLET,VALVE

3084908

$3.99

11

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

11

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

12

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

12

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

13

CAMSHAFT (Incl. 14-17)

3085853

Unavailable

14

DOWEL-PIN

3086838

$7.19

15

LEVER, RELEASE

3085348

Unavailable

16

SPRING,RETURN

3085076

Unavailable

17

PIN,DOWEL

3084899

$7.19

18

SPROCKET 2

3084914

$75.99

19

GUIDE,CHAIN

3084916

Unavailable

20

BOLT&WASHER ASM.

3081657

$4.79

21

CHAIN, TIMING *

3084915

$95.99

22

BOLT,PIVOT,LEVER

3084924

Unavailable

23

LEVER

3084917

$91.99

24

VALVE,INTAKE

3085778

Unavailable

25

VALVE-EXHAUST

3086441

$51.99

26

GASKET,TENSIONER

3084922

Unavailable

27

BOLT, FLANGE

3084874

Unavailable
