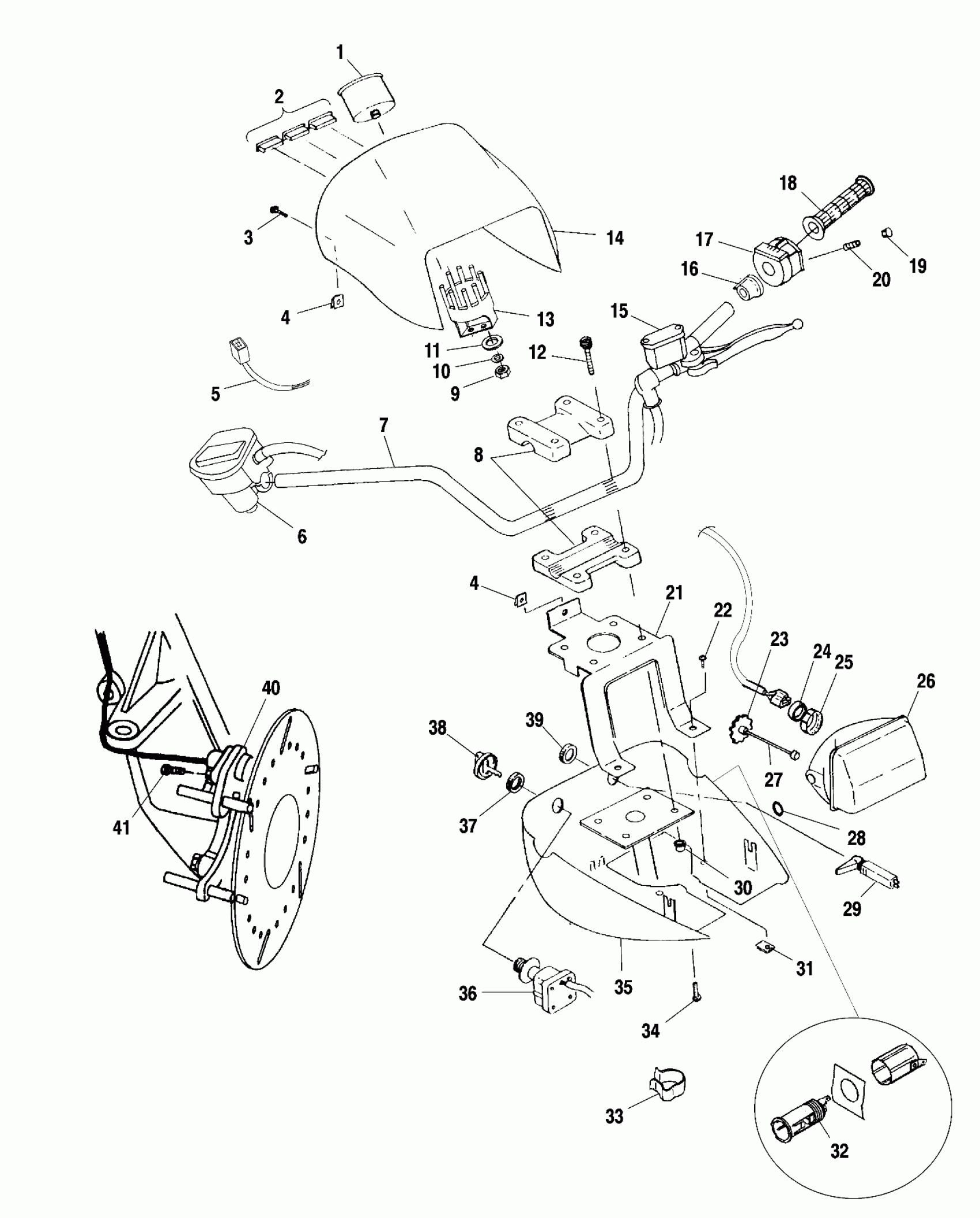

Polaris SPORTSMAN 335 - A00CH33AG HANDLEBAR and HEADLIGHT POD - A00CH33AC (4959905990B013) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B10, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

POD-HEADLIGHT,UPPER,RED (A00CH33AD)(A00CH33AF)

5433042-136

Unavailable

14

POD-HEADLIGHT,UPPER,OLIVE GR (A00CH33AC)(A00CH33AE)

5433042-191

Unavailable

14

POD,HDLIGHT,UPPER,MD.YLW (A00CH33AG)

5433042-053

Unavailable

15

Asm., Master Cylinder (See Controls - Master Cylinder/Brake Line Pg. B11 for details)

-------

Unavailable

16

SPACER,SWITCH,LH

5432926

$2.63

17

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

18

GRIP, HANDLEBAR

5431030

$24.27

19

PLUG,HOLE(10)

5432952

$5.59

20

SCREW,SET

7517625

$4.79

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

33

CLIP,CABLE RETAIN,(10)

7080631

$6.29

34

SCREW(10)

7522021

$3.99

35

POD,HEADLIGHT,LOWER,BLK

5433366-070

$93.08

36

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

36

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

36

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

37

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

38

KEY SWITCH KEY COVER

5433534

$12.35

39

Nut

7080229

$19.99

40

SENSOR,HALLEFFECT (If built after 8/09/99)

4010298

$111.99

40

CAP-HALL SENSOR (Only w/4010298

5132382

$23.99

40

SENSOR,HALL EFFECT Substituted by 2201625 (If built before 8/09/99)

4040081

Unavailable

41

Screw

7517658

$5.59
