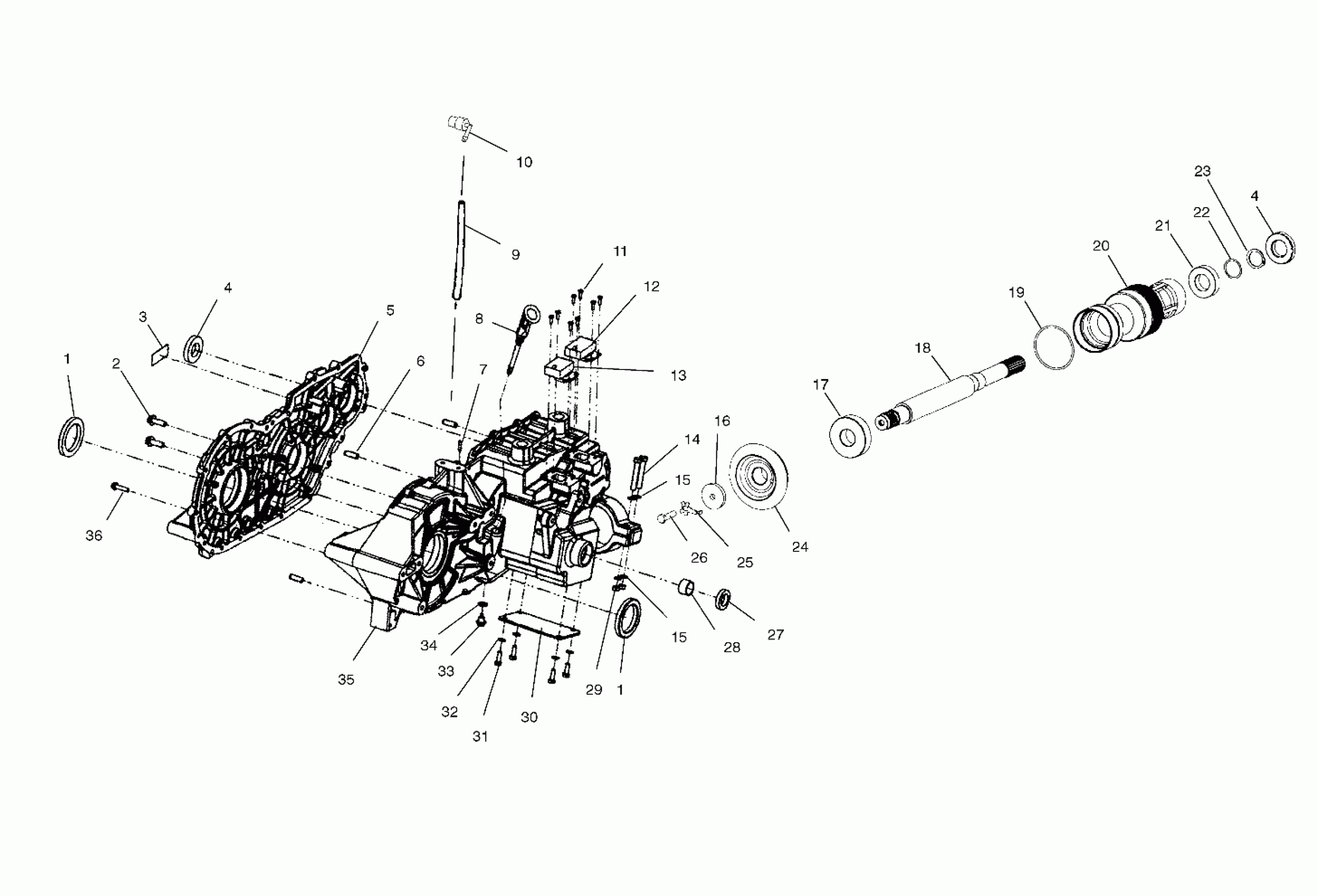

Polaris SPORTSMAN 335 - A00CH33AG GEARCASE (Cases and Snorkel) - A00CH33AC (4959905990D001) Diagram

#

Description
Price

-

Asm., Gearcase (See Gearcase - Internal Components Pg. C14)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

DECAL-SWITCH

3233636

Unavailable

4

Seal

3233248

$30.88

4

Seal

3233248

$30.88

5

GEARCASE-LH

3233716

$339.99

6

PIN, DOWEL

3233247

$7.19

7

Vent

3233037

Unavailable

8

Dipstick

3233475

Unavailable

9

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

10

FITTING,90 DEG,1/8,(10)

7052095

$4.79

11

SCREW Substituted by 3233749

3233691

Unavailable

12

SWITCH,ITW 2 POSITION

3233617

Unavailable

13

SWITCH-H/R,ITW

3233635

Unavailable

14

BOLT

3233442

$2.23

15

Washer (See Gearcase - Internal Components Pg. C14, Ref. 9)

-------

Unavailable

15

Washer (See Gearcase - Internal Components Pg. C14, Ref. 9)

-------

Unavailable

16

Washer

3233352

$1.83

17

Bearing, Ball (See Gearcase - Internal Components Pg. C14, Ref. 29)

-------

Unavailable

18

SHAFT,SNORKEL

3233446

Unavailable

19

O-Ring

3233302

Unavailable

20

SNORKEL

3233303

Unavailable

21

BEARING,BALL

3233305

$31.99

22

SPACER (1.180x.995x.008)

3233357

$21.99

22

SPACER (1.180x.995x.040)

3233355

$2.63

22

SPACER (1.180x.995x.010)

3233353

$2.55

22

SPACER (1.180x.995x.025)

3233354

$2.55

22

SPACER (1.180x.995x.005)

3233356

$2.62

23

RING,RETAINING

3233306

$4.79

24

GEAR,31T,SNORKEL

3233476

Unavailable

25

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

26

Bolt

3233351

$1.99

27

Seal

3233293

Unavailable

28

Bushing

3233292

$31.99

29

NUT,FLEXLOCK

3233291

$3.03

30

PLATE,COVER

3233294

$11.59

31

Screw

3233296

Unavailable

32

WASHER,LOCK

3233295

$1.99

33

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

34

PLUG, WASHER

3233254

$7.99

35

GEARCASE-RH Substituted by 3233748

3233672

Unavailable

36

Screw

3233026

$6.46
