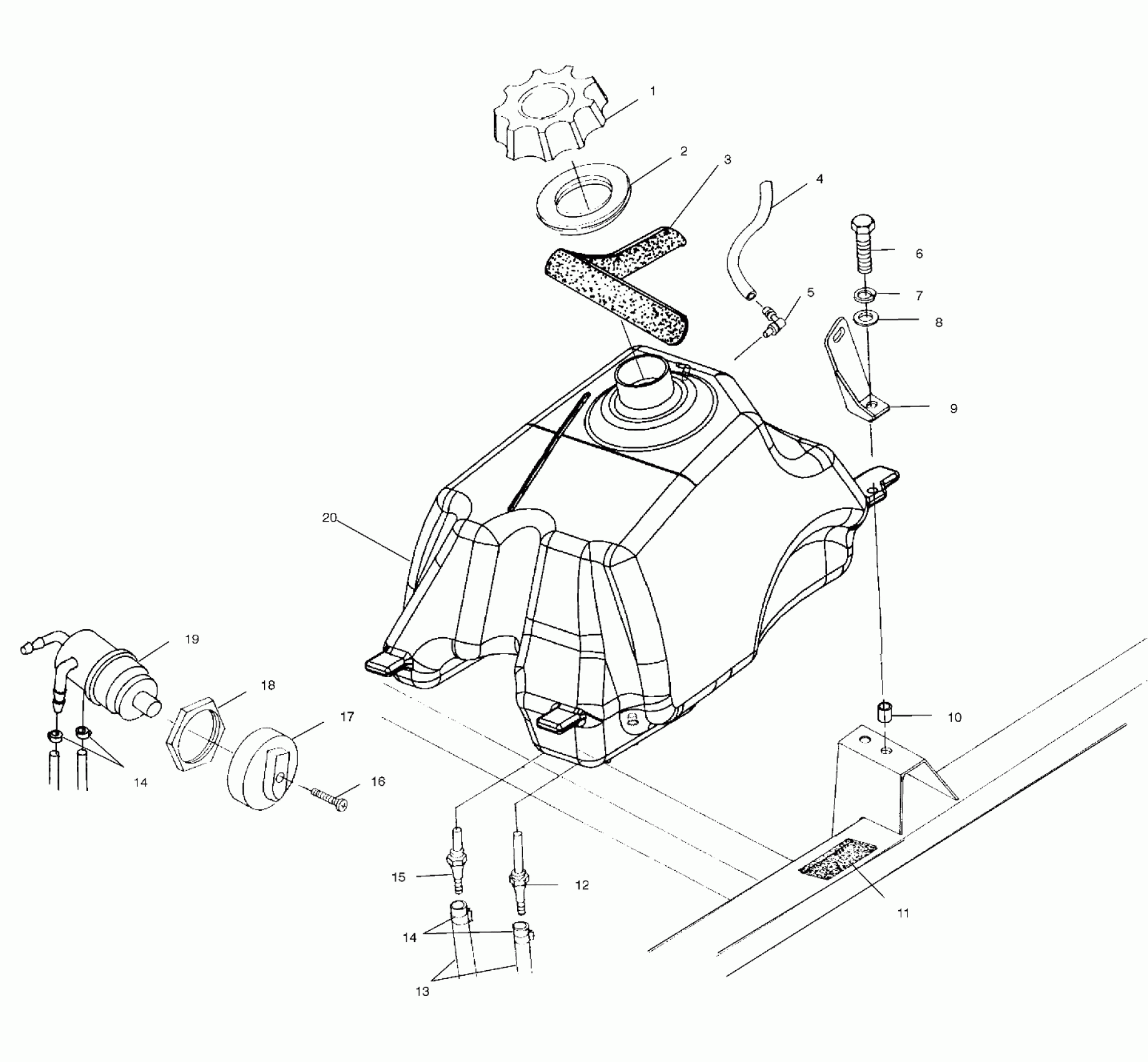

Polaris SPORTSMAN 335 - A00CH33AG FUEL TANK - A00CH33AC (4959905990B002) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.65

3

SEAL-FOAM,21 IN

5811310

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$24.27

6

BOLT(10)

7512247

Unavailable

7

LOCK WASHER(10)

7552801

$1.59

8

WASHER(10)

7558301

$1.19

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

INSERT,(10)

7542143

$5.56

11

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

12

FITTING,FUEL OUT,MAIN,Y

7052146

$27.78

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

15

FITTING,FUEL OUT,RES.,Z

7052149

$23.81

16

SCREW(10)

7517505

$1.59

17

KNOB,FUEL VALVE

5432559

$11.32

18

NUT,FUELVALVE,ATV

5432733

Unavailable

19

VALVE,3-WAY

7052161

$44.51

20

TANK ASM,FUEL (Incl. 5,12,15)

2511289

Unavailable
