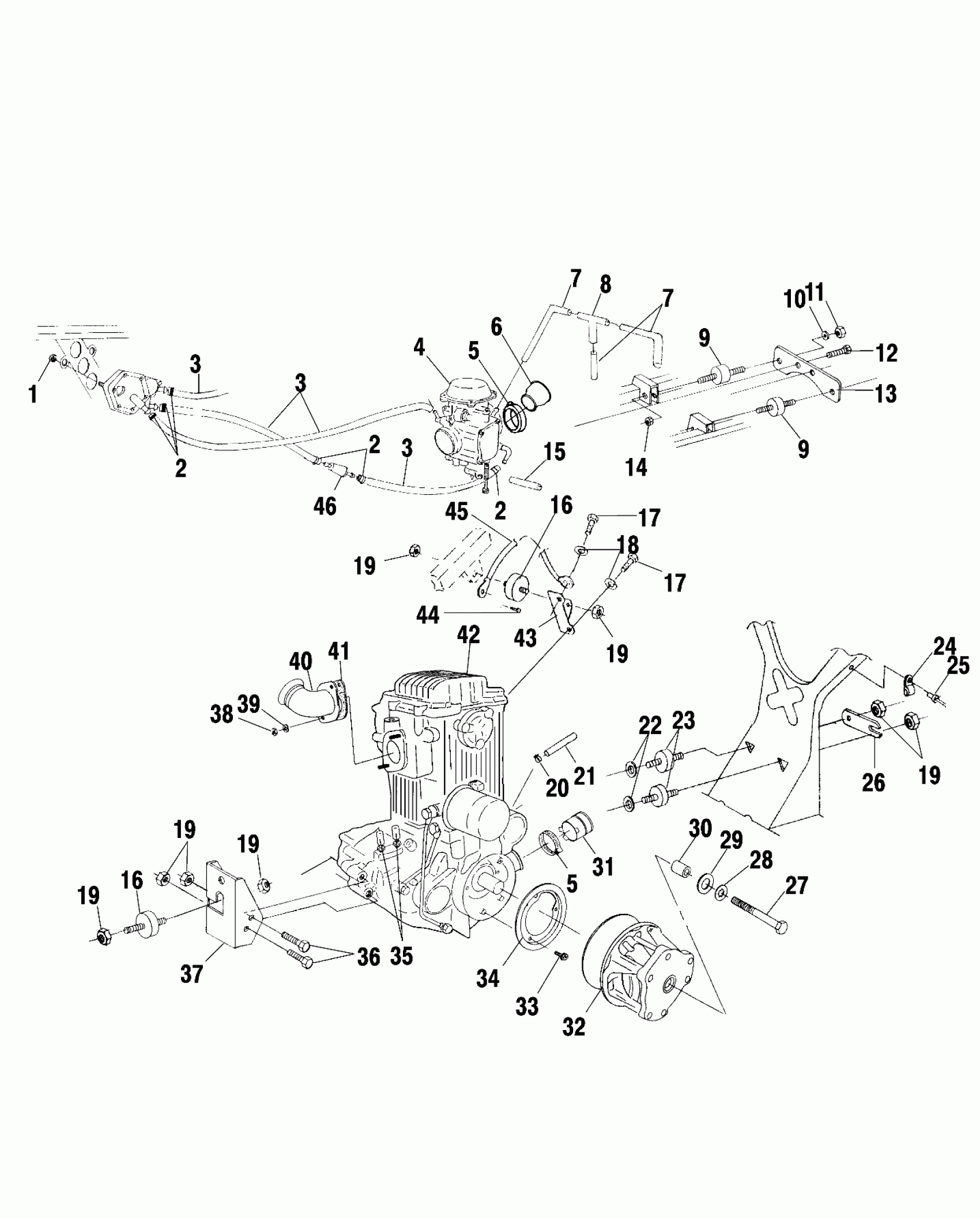

Polaris SPORTSMAN 335 - A00CH33AG ENGINE MOUNTING - A00CH33AC (4959905990A013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

ASM., CARBURETOR (See Carburetor Pg. D8, Ref. 9)

-------

Unavailable

5

CLAMP, NARROW BAND(10)

7080511

$4.79

5

CLAMP, NARROW BAND(10)

7080511

$4.79

6

BOOT,CARB

5410995

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FITTING, TEE

7052075

$9.59

9

Mount, Rubber

3110032

$7.99

9

Mount, Rubber

3110032

$7.99

10

WASHER(10)

7552605

$5.27

11

NUT HEX(10)

7542105

$3.99

12

SCREW & WASHER(10)

3084205

$3.99

13

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

14

NUTSERT,HEX(10)

7547069

$3.99

15

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

16

MOUNT,RUBBER,TOP

3110044

Unavailable

16

MOUNT,RUBBER,TOP

3110044

Unavailable

17

BOLT(10)

7512315

$4.79

17

BOLT(10)

7512315

$4.79

18

LOCK WASHER(10)

7552901

$1.49

19

NUT LOCK(10)

7542411

$3.19

19

NUT LOCK(10)

7542411

$3.19

19

NUT LOCK(10)

7542411

$3.19

19

NUT LOCK(10)

7542411

$3.19

19

NUT LOCK(10)

7542411

$3.19

19

NUT LOCK(10)

7542411

$3.19

20

CLAMP,HOSE,SPRING

7080694

$6.53

21

HOSE,BRTHR,CRNKCSE,FORMED

5411857

$14.87

22

WASHER, FLAT(10)

7555815

$3.99

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

CLAMP,NYLON,CABLE(10)

7080539

$4.79

25

RIVET(50)

7621462

$1.49

26

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

27

BOLT(10)

7512566

$30.79

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

BUSHING-.437 X.770 X.50

5430261

$7.19

31

BOOT,CLUTCH INTAKE

5410421

$11.19

32

Asm., Drive Clutch, ATV-08 (See Drive Clutch Pg. C4, Ref. 14)

-------

Unavailable

33

SCREW AND WASHER (See Crankcase Pg. D3, Ref. 6)

-------

Unavailable

34

Bracket, Retainer, Seal (See Clutch Cover Pg. C6, Ref. 23)

-------

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.40

36

BOLT(10)

7515417

$4.79

37

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

38

NUT(10)

3080285

Unavailable

39

WASHER LOCK ,(10)

3080530

$3.19

40

MANIFOLD,BLK

1260771-029

Unavailable

41

Gasket, Exhaust (See Cylinder Pg. D4, Ref. 27)

-------

Unavailable

42

ENG.ES33PFE-01 The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration

3085826

Unavailable

43

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

44

BOLT(10)

7512232

$1.49

45

CABLE,GND-ENGINE

4010132

Unavailable

46

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
