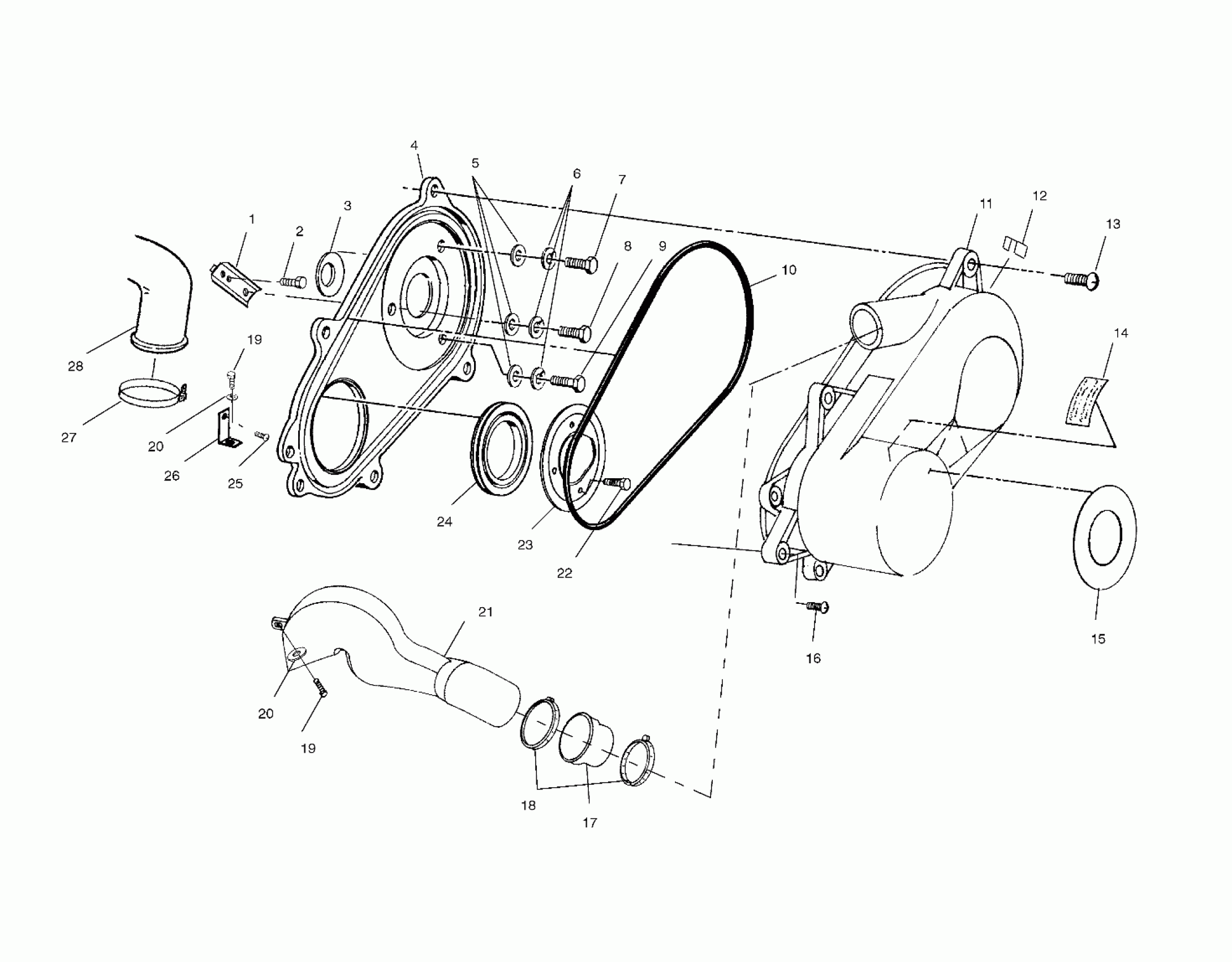

Polaris SPORTSMAN 335 - A00CH33AG CLUTCH COVER - A00CH33AC (4959905990C006) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.97

3

SEAL,COVER CASE (If built before 3/13/00)

5410489

$13.75

3

SEAL-CLUTCH COVER,TRANSMISSION (If built after 3/13/00)

5411901

Unavailable

4

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 13,16,25)

2201160

Unavailable

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

6

WASHER(10)

7552605

$5.69

7

BOLT(10)

7512247

Unavailable

8

BOLT(10)

7512277

$4.76

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$32.37

11

COVER-CLUTCH,OUTER,HV,ST-801 (If built before 3/13/00)

5433540

$186.17

11

COVER,CLUTCH OUTER,HV GREY Substituted by 5433451-070 (If built after 3/13/00)

5433451-328

$186.17

12

CLIP,CLUTCH COVER(10)

7670051

Unavailable

13

SCREW(10) (If built before 3/13/00)(Use 7512094 if built after 3/01/00)

7512093

$1.19

14

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

15

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

16

SCREW(10) (Use 9 if built after 3/13/00)

7512094

$1.59

17

BOOT,DUCT,HI-FLOW

5411489

Unavailable

18

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

19

BOLT(10)

7512232

$1.19

19

BOLT(10)

7512232

$1.19

20

WASHER(10)

7555935

$2.38

20

WASHER(10)

7555935

$2.38

21

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980 (If built before 3/13/00)

5432947

Unavailable

21

DUCT-CLUTCH OUTLET,16.6 (If built after 3/13/00)

5433980

Unavailable

22

SCREW AND WASHER (See Crankcase Pg. D3, Ref. 6)

----

Unavailable

23

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

24

Seal, Cover Case

5410575

$44.51

25

SCREW(10)

7512095

$4.76

26

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

27

CLAMP, NARROW BAND(10)

7080511

$4.76

28

Duct, Air Inlet, Clutch (See Air Box Pg. B3, Ref. 7)

----

Unavailable
