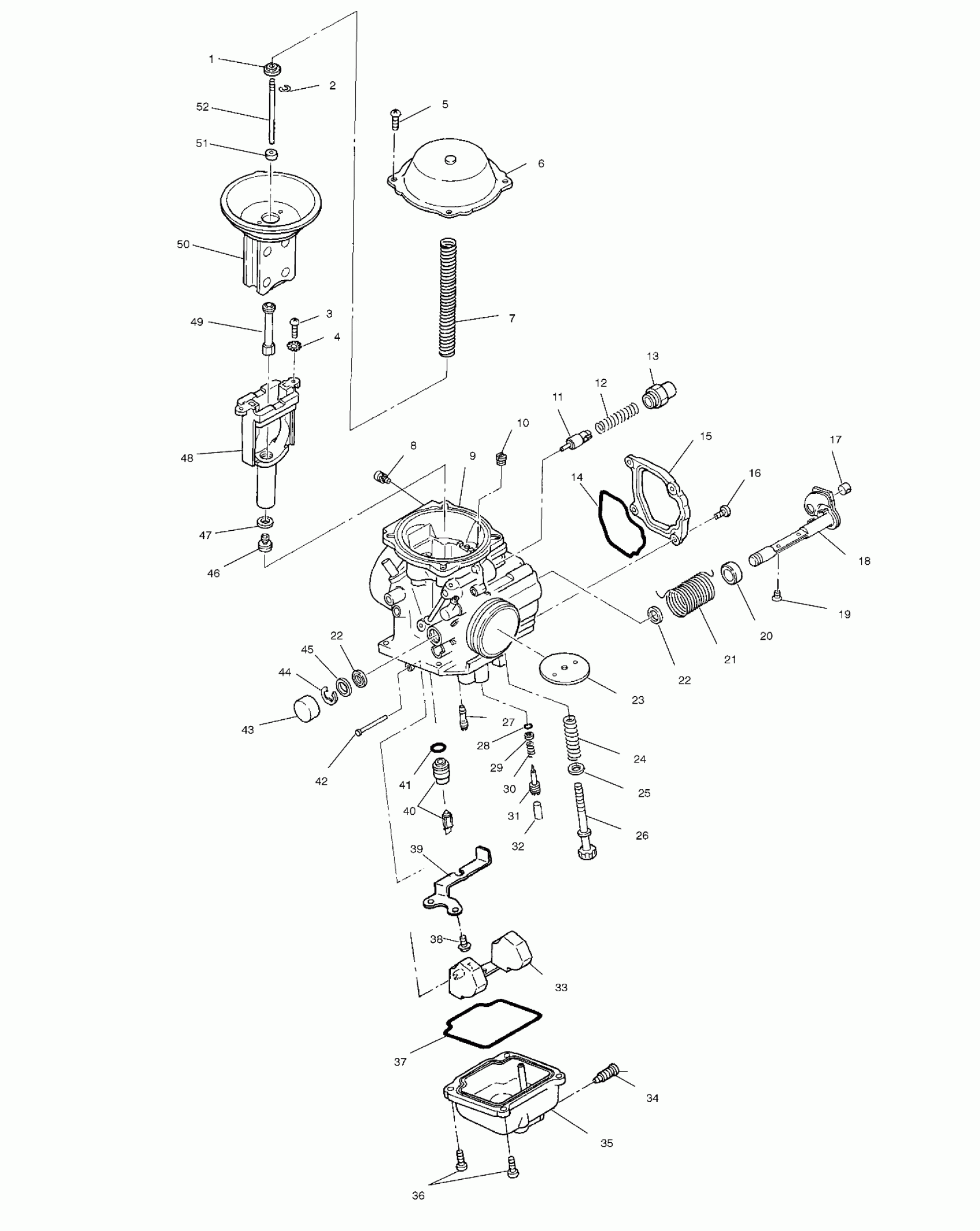

Polaris SPORTSMAN 335 - A00CH33AG CARBURETOR - A00CH33AC (4959905990D007) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING,(10)

3130508

$6.46

3

SCREW

3130541

$11.19

4

WASHER,SPRING

3130540

$4.79

5

SCREW-MIKUNI C2=0408

3130592

Unavailable

6

Cover

3130503

$63.99

7

SPRING

3130505

$23.99

8

SCREW & WASHER(10)

3084205

$3.99

9

CARBURETOR (Incl. 1-13,18-52)

3130904

Unavailable

10

JET,AIR,#160 (#160)

3130625

$13.59

11

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

12

SPRING

3130538

$4.79

13

HOLDER,GUIDE

3130199

$28.32

14

O-Ring

3130512

$39.99

15

COVER

3130511

$43.99

16

SCREW

3130535

$7.19

17

GUIDE,CABLE

3130543

$27.99

18

SHAFT ASM,THROTTLE

3130513

$79.99

19

SCREW

3130501

$3.99

20

Ring

3130514

$7.19

21

SPRING

3130589

$23.99

22

SEAL

3130515

$11.99

22

SEAL

3130515

$11.99

23

VALVE,THROTTLE (100)

3130502

$47.99

24

Spring

3130544

$9.59

25

Ring

3130545

$12.13

26

SCREW, ADJ.

3130546

$13.59

27

JET,PILOT,#40 (#40)

3130624

$23.99

28

O-Ring

3130522

$5.65

29

Washer

3130523

$2.39

30

Spring

3130525

$4.79

31

Adjuster

3130524

$23.99

32

PLUG

3130905

$7.43

33

FLOAT ASM.

3130529

$79.99

34

SCREW

3130521

$10.39

35

FLOATBODY ASM.

3130590

$103.99

36

SCREW

3130520

$1.59

37

O-RING

3130532

$31.99

38

SCREW

3130591

$3.99

39

PLATE

3130594

$27.99

40

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

Unavailable

41

O-RING

3130533

$5.59

42

PIN, FLOAT

3130361

$8.89

43

CAP

3130519

$10.39

44

E-RING

3130518

$1.59

45

PACKING

-------

Unavailable

46

MAIN JET,#150 (#150)

3130569

Unavailable

47

WASHER (10)

3130014

$1.59

48

JETBLOCK ASM.

3130504

$59.99

49

NEEDLE JET,(P-9) (P-9)

3130731

Unavailable

50

DIAPHRAGM ASM.

3130732

$123.99

51

RING

3130752

$5.59

52

JET NEEDLE,(J8-5F14) (5F81-3)

3130730

Unavailable
