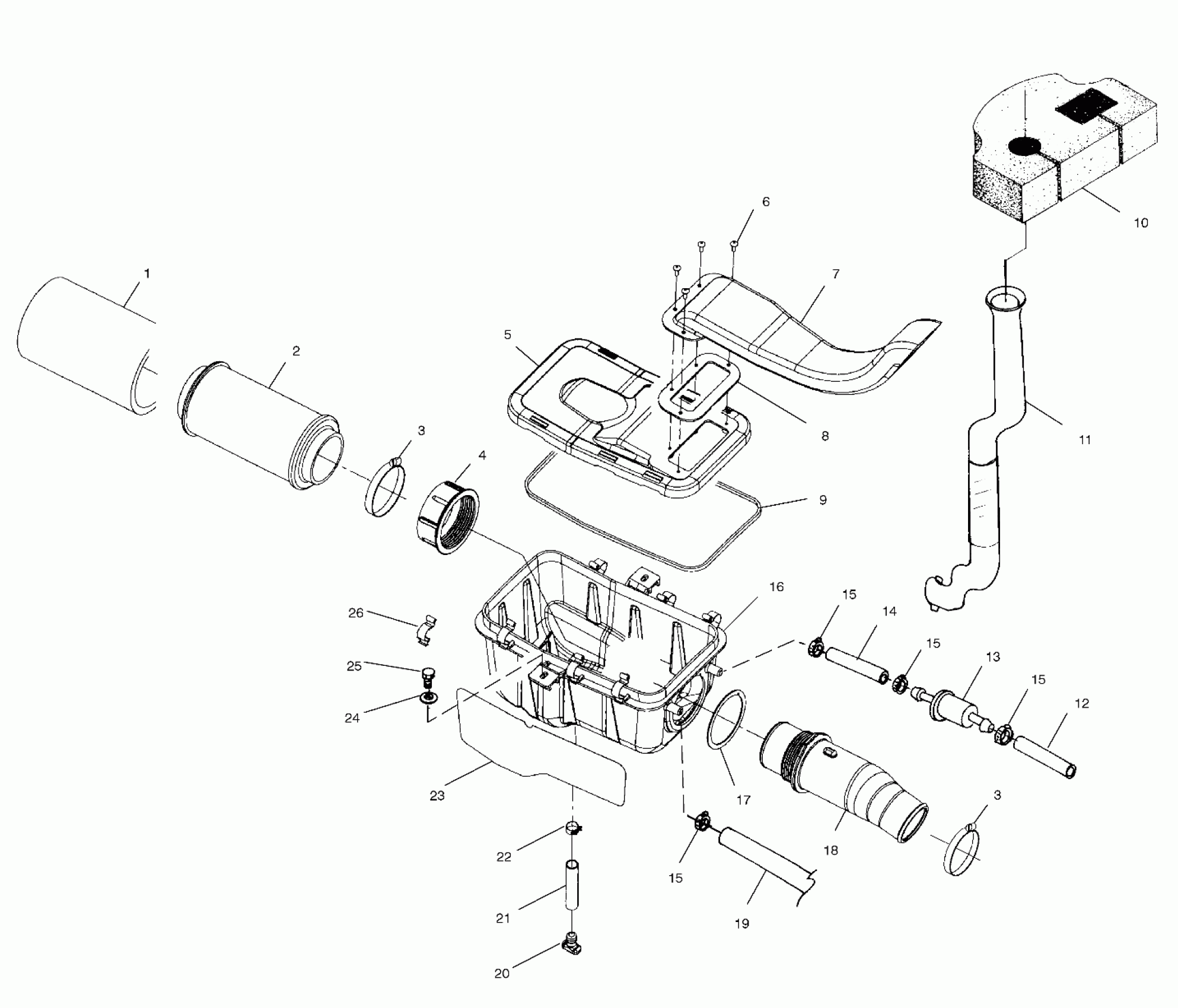

Polaris SPORTSMAN 335 - A00CH33AG AIR BOX - A00CH33AC (4959905990B003) Diagram

#

Description
Price

1

FILTER,PRECLEAN.SLEEVE

5811633

$11.90

2

FILTER,AIR INTAKE

7080595

$27.78

3

CLAMP,BAND,NARROW

7080413

$3.17

3

CLAMP,BAND,NARROW

7080413

$3.17

4

COLLAR,CARB INLET

5432601

$12.94

5

COVER,AIRBOX

5432868

$56.65

6

SCREW,SEMS(10)

7517541

$4.76

7

DUCT,AIR INLET

5433293

$69.99

8

GASKET,INTAKE

5411422

$6.59

9

SEAL,AIRBOX COVER

5811482

$28.32

10

SEAL,FOAM

5811626

$32.37

11

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

12

Line, Breather (See Engine Mounting Pg. A14, Ref. 21)

----

Unavailable

13

FILTER,BREATHER,IN LINE

2530029

$6.35

14

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

15

CLAMP,HOSE

7080699

$1.59

16

BOX,AIR INT,4-STROKE

5432774

$125.46

17

GASKET,CARB.IN.DUCT

5830128

Unavailable

18

DUCT,CARB.INLET

5432858

$97.13

19

BREATHER-LINE-112 CM,SLIT

5411668

Unavailable

20

Plug, Trap

5432377

Unavailable

21

FUEL LINE

8450059-150

Unavailable

22

CLAMP,HOSE,(10)

7080650

$3.97

23

FOIL,AIRBOX

5811650

Unavailable

24

WASHER(10)

7558301

$1.19

25

SCREW(10)

7515179

$2.38

26

CLIP-AIR BOX

5242044

$9.52
