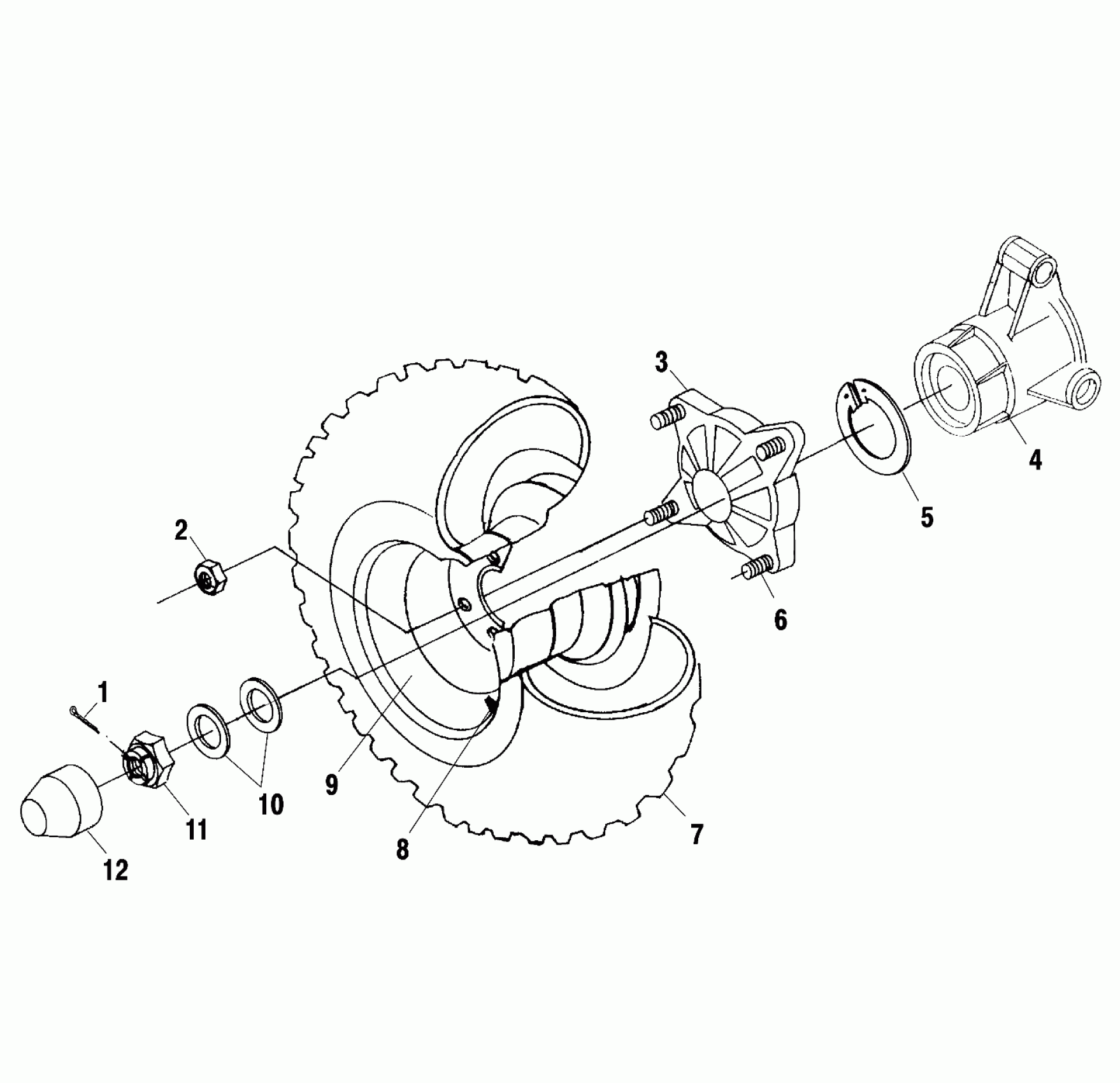

Polaris SPORTSMAN 335 - A00CH33AB REAR WHEEL DRIVE - A00CH33AB (4957715771C007) Diagram

#

Description

Price

1

PIN, COTTER(10)

7661404

$4.79

2

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

3

HUB,R.WHEEL,MACH

5131649

Unavailable

4

Carrier, Bearing, Wheel (See Footnote) (See Rear Suspension Pg. C10, Ref. 41)

-------

Unavailable

5

RING,RETAINING(10)

7710440

$10.39

6

STUD(10)

7515513

$1.49

7

TIRE,24X11-10,TITAN (24x11-10)

5411265

Unavailable

8

VALVE-RIM

1525017

$5.59

9

RIM,REAR,(8.5X10),BLK (A00CH33AA)

1520217-067

Unavailable

9

RIM,REAR(8.5X10),SLVR (A00CH33AB)

1520217-117

Unavailable

10

WASHER, CONE(10)

7555796

$7.99

11

NUT, CASTLE(10)

7543005

Unavailable

12

DUSTCOVER, HUB

5411164

$24.27
