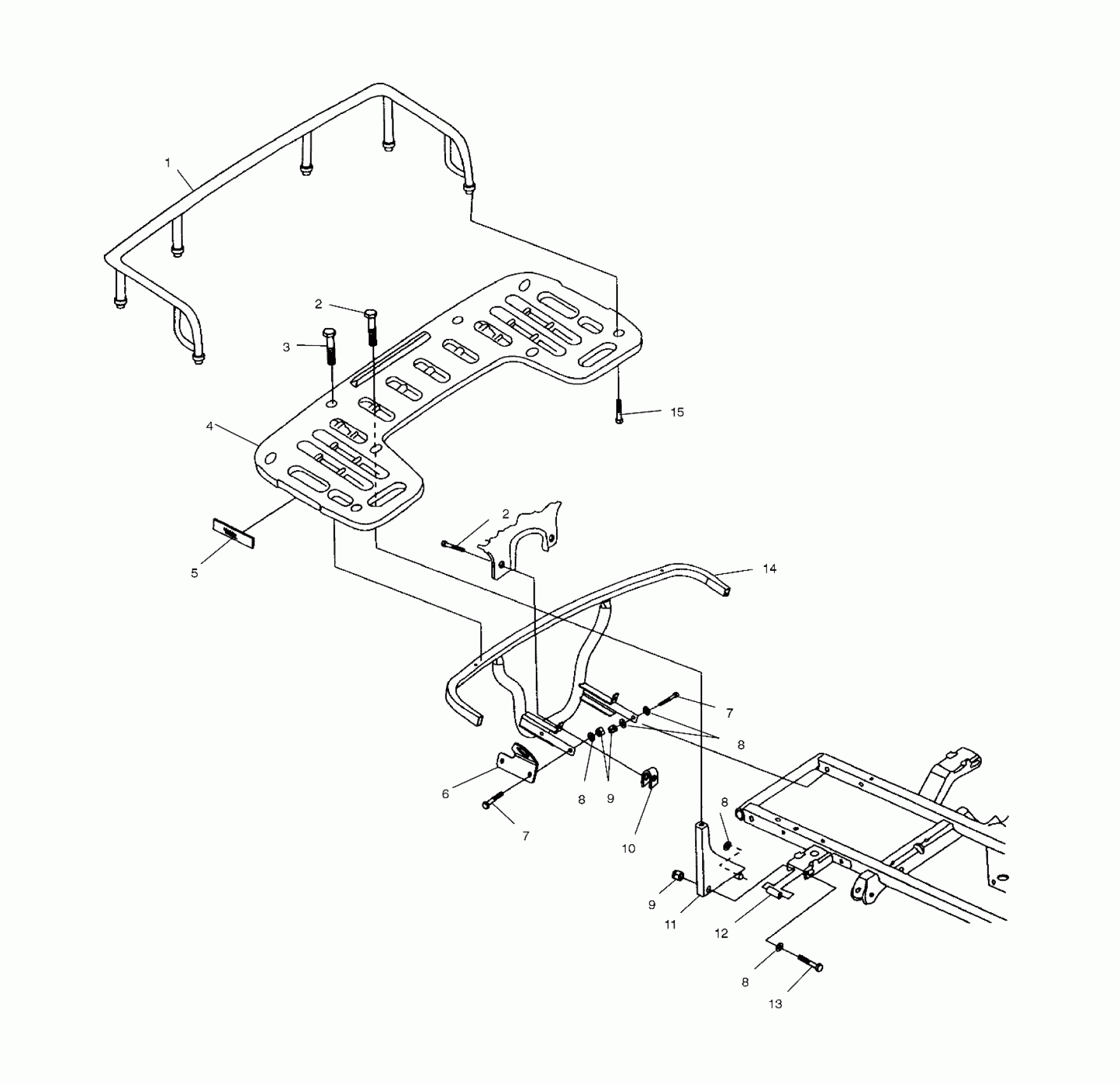

Polaris SPORTSMAN 335 - A00CH33AB REAR RACK MOUNTING - A00CH33AA (4957715771A008) Diagram

#

Description
Price

1

RACK EXT,REAR,GENIV,3.5" (Incl. 15)

2871501

Unavailable

2

SCREW(10)

7517685

$1.59

2

SCREW(10)

7517685

$1.59

3

SCREW(10) Substituted by 7517685

7515194

Unavailable

4

RACK ASM,REAR Substituted by 2670174-070 (Incl. 5 & Warning Decal)

2670174

Unavailable

5

REFLECTOR RED

2670070

$9.91

6

BRKT,SILENCER,FRAME,BLK

5241663-067

Unavailable

7

BOLT(10)

7512329

$3.99

7

BOLT(10)

7512329

$3.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

Nut

7670096

$1.59

11

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

11

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

12

Spacer

5333332-067

$6.63

13

SCREW(10)

7515385

$5.59

14

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

15

SCREW(10)

7517208

$1.99
