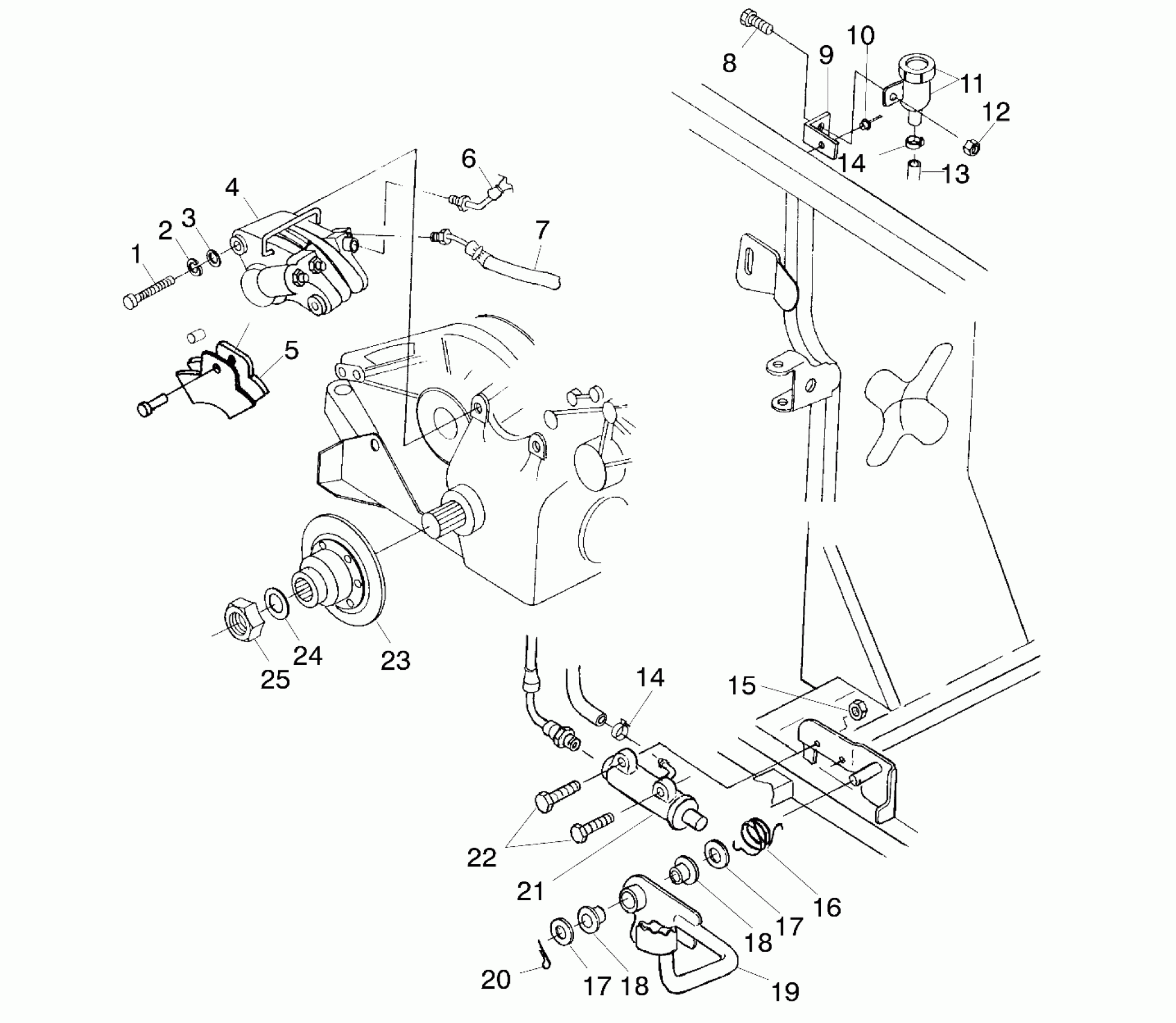

Polaris SPORTSMAN 335 - A00CH33AB REAR BRAKE/FOOT PEDAL - A00CH33AB (4957715771C008) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

CALIPER ASM.BRAKE,DH1P

1910366

$250.96

4

PISTON,STEPPED BORE

2201181

$83.33

5

Pin

1930860

Unavailable

5

KIT,BRAKEPAD,WW REAR (Incl. Pin and Spacer)

2201093

Unavailable

5

SPACER,PAD

1910339

Unavailable

6

LINE,R.BRAKE,WWOOD

1930853

Unavailable

7

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

8

BOLT(10) Substituted by 7512240

7512111

Unavailable

9

DESC NOT_AVAILABLE

5242677

Unavailable

10

RIVET(50)

7621429

$1.49

11

RESERVOIR ASM,R.BRAKE

1930854

$35.99

12

NUT(10)

7542153

$1.59

13

HOSE,RESERVOIR,1/4ID,22IN.

1910315

Unavailable

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

NUT-LOCK(10)

7542122

$1.49

16

SPRING-TORSION,BRAKE

7041750

$8.79

17

WASHER(10)

7555919

$4.99

17

WASHER(10)

7555919

$4.99

18

BUSHING-PEDAL PIVOT

5431107

$8.79

18

BUSHING-PEDAL PIVOT

5431107

$8.79

19

ROD,BRAKE,BLK.

1910280-067

Unavailable

20

COTTER PIN(10)

7661401

$1.49

21

CYLINDER,MASTER,BRAKE,REAR

1910301

$166.01

22

BOLT, S.S.(10)

7515155

Unavailable

23

DISC ASM,BRAKE (A00CH33AA)(A00CH33AB)

1910188

Unavailable

24

WASHER, SLOTTED(10)

7571620

$7.19

25

NUT,NYLOC

7547046

$5.59
